RGA720EK5WH DOOR & DRAWER PARTS

RGA720EK5WH DOOR & DRAWER PARTS

Written by

in

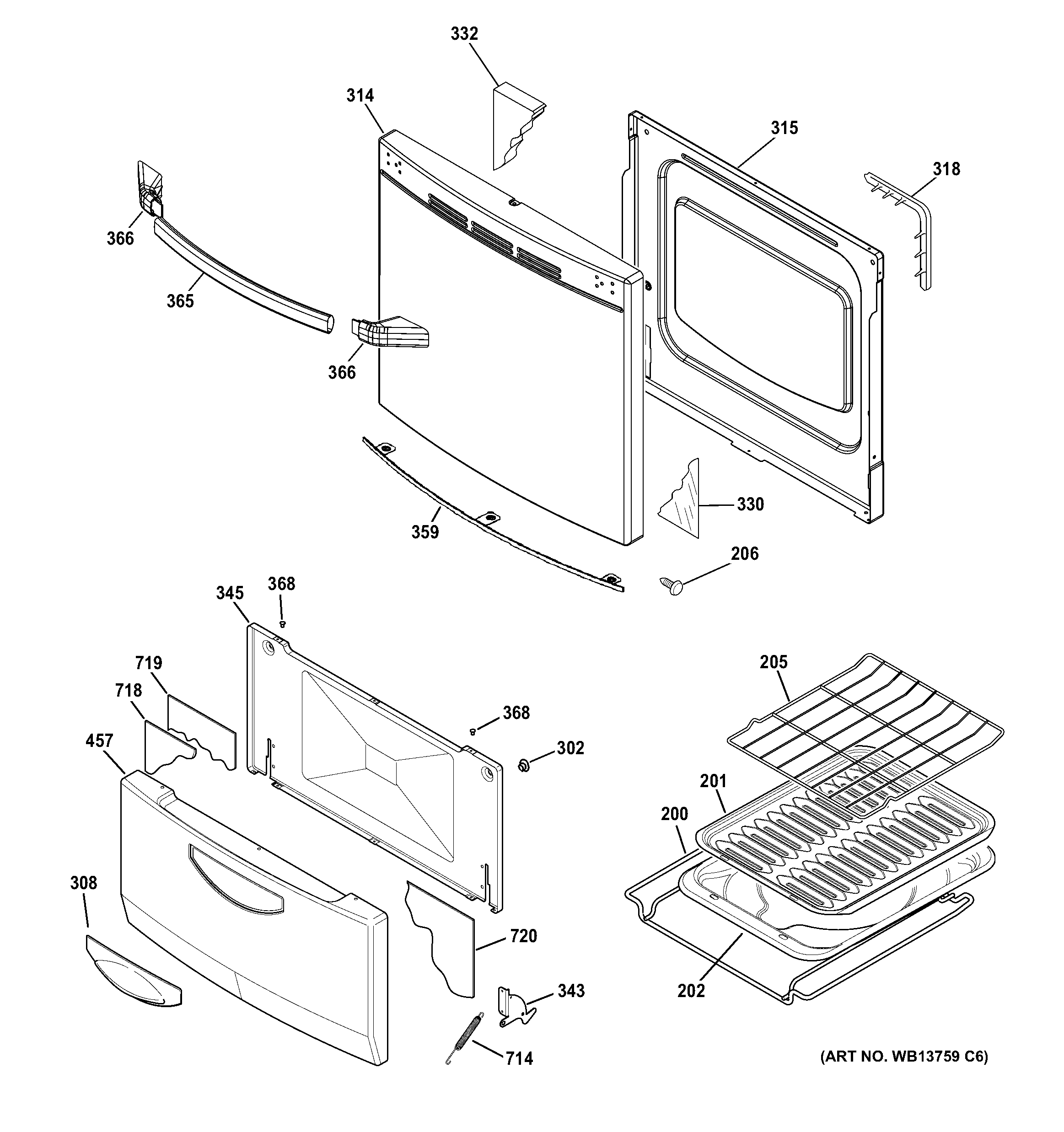

RGA720EK5WH DOOR & DRAWER PARTS

Products

PositionProduct
200GEN WB48K10014
201WB48K10016 GE Oven Broil Pan Grid
202WB48K10015 GE Oven Broil Pan
205WB48X26060 GE Oven Rack 20
206WB01K10052 GE Screw
206WB01K10062 GE Screw 8-18 x 3/8
302WB01K10035 GE Oven Broiler Pin
308WB15K10098 GE Oven Handle Pocket
314WB56K10082 GE Oven Solid Door
315WB55K10086 GE Door Liner
318WB32K10054 GE Oven Door Gasket Assembly
332WB35K10228 GE Door Insulation
343WB10K10006 GE Oven Broiler Hinge Assembly
343WB10K10005 GE Oven Broiler Hinge Assembly
345WB55K10089 GE Drawer Liner
359GEN WB07K10459
365WB15K10065 GE Oven Handle
366WB7X7189 GE Oven Range Door Handle Endcap White
368WB2K15 GE Oven Grate Bumper
457WB56K10028 GE Kick Panel
714WB09K10003 GE Oven Broil Door Spring
714WB1K39 GE Washer Spring
718GEN WB35K10080
719GEN WB35K10081
720GEN WB35K10172
