RGA720PK1WH CONTROL PANEL & COOKTOP

RGA720PK1WH CONTROL PANEL & COOKTOP

Written by

in

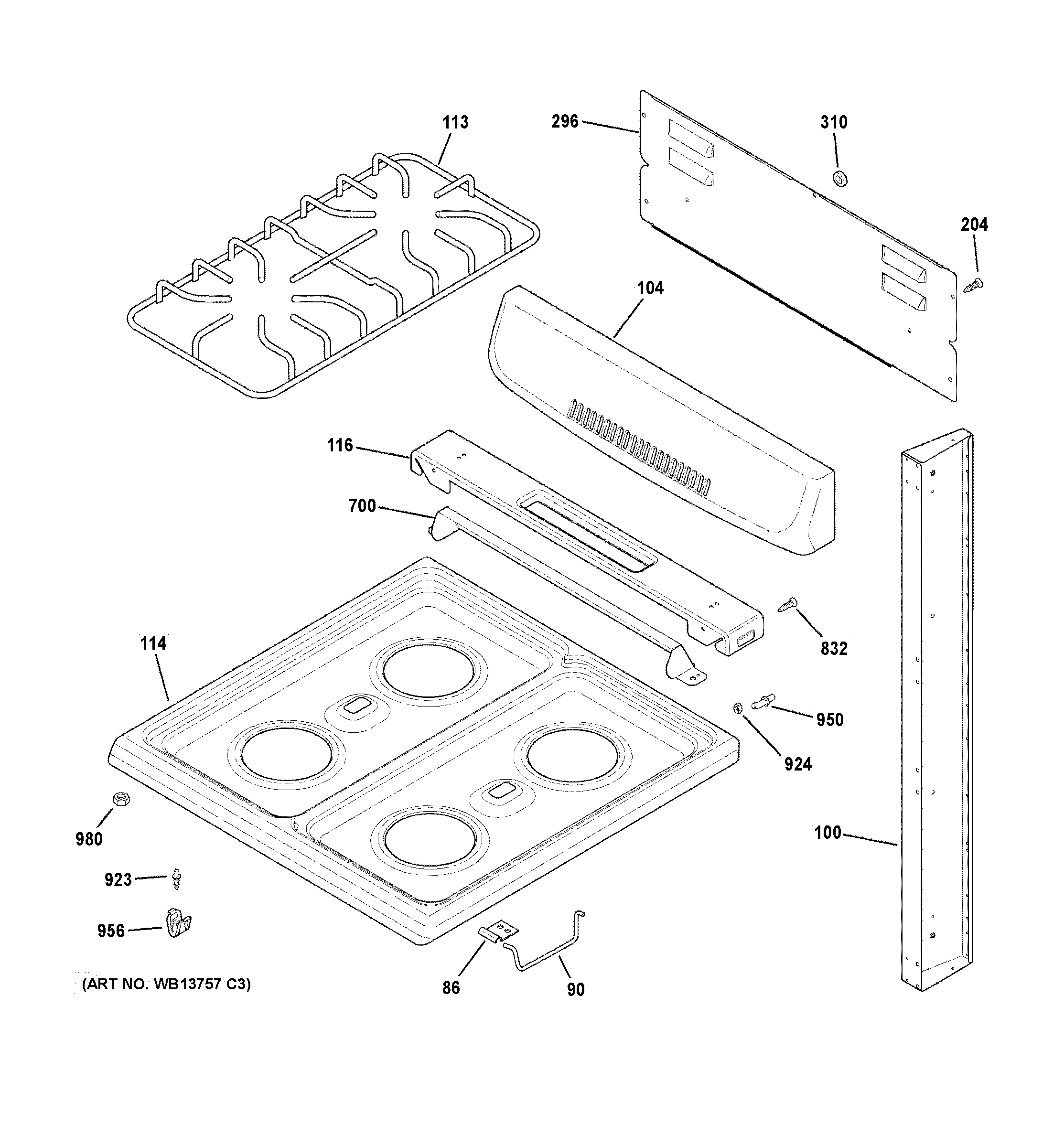

RGA720PK1WH CONTROL PANEL & COOKTOP

Products

PositionProduct
86GEN WB02K10089
90WB02K10088 GE Main Top Support Rod
100WB63K10074 GE Side Panel Complement
104WB36K10568 GE Oven Backguard Assembly
113WB31K10263 GE Oven Grate Assembly
114GEN WB36K10573
116WB36K10557 GE Oven Cooktop Assembly
204WB1K5062 GE Oven Screw
296WB34K10074 GE Oven Backguard Cover
310WB01K10023 GE Oven Grommet Handle
700WB35K10077 GE Deflector Backguard
832WB01K10043 GE Oven Screw
923GEN WB02K10128
924WB01K10048 GE Hex Lock Nut
950WB02K10129 GE Cooktop Guide
956WB02K10091 GE Range Door Strike Catch
980WB01K10041 GE Oven Hex Lock Nut
