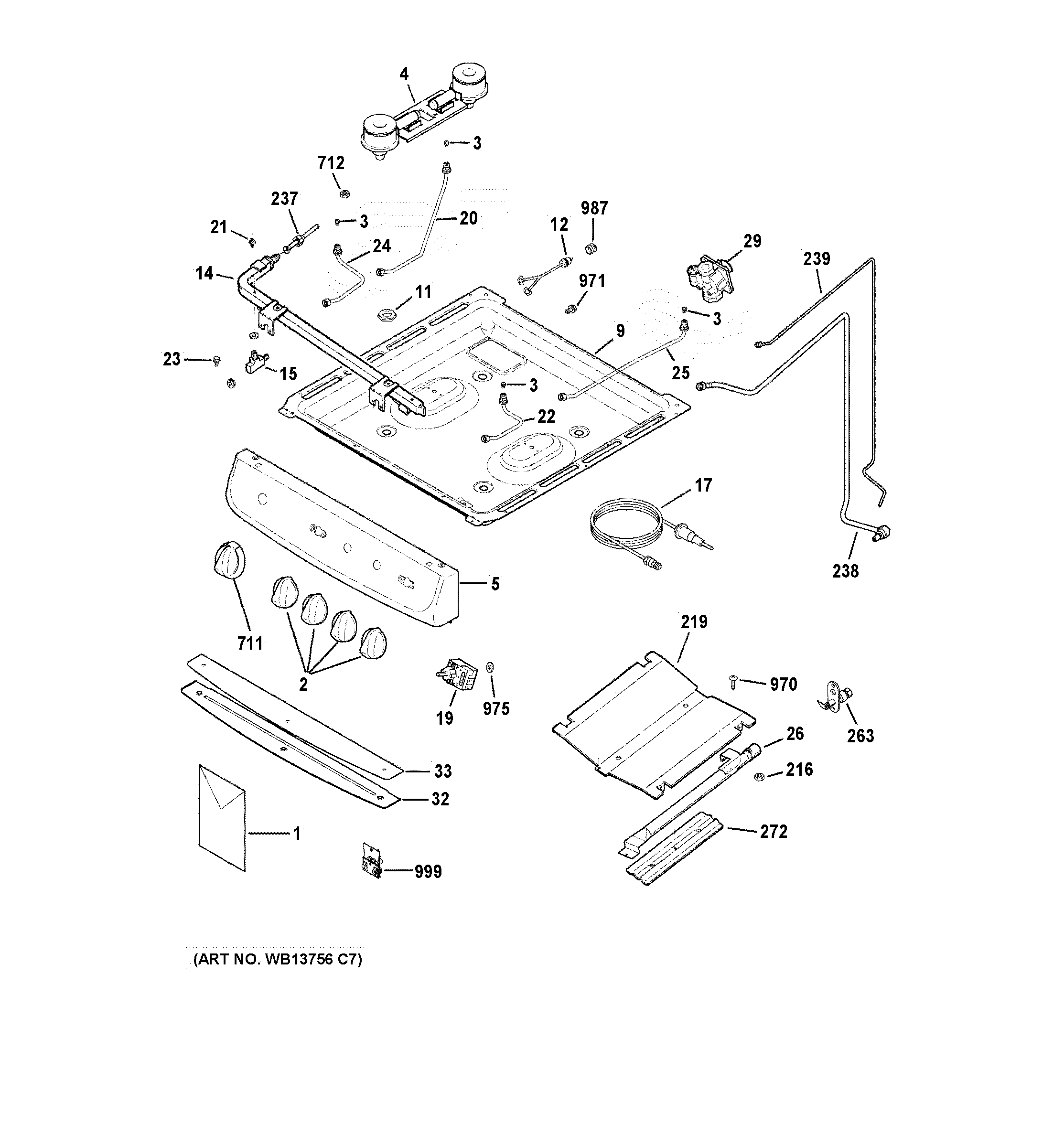

RGA720PK2WH GAS & BURNER PARTS

Products

Position	Product
1	WB15K10065 GE Oven Handle
1	GEN 31-21207
1	PM MINI – MANUAL
1	GEN 49-85104
2	WB03K10034 GE Oven Burner Knob
3	WB28K10319 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
4	WB16K10058 GE Oven Double Burner G05
5	GEN WB36K10572
9	WB64K10017 GE Oven Burner Box
11	GEN WB01K0004
12	GEN WB19K0005
14	GEN WB28K10321
15	WB21K38 GE Oven Burner Valve
17	WB19K10025 GE Oven Thermocouple
19	WB20K10020 GE Oven Modulating Thermostat
20	WB28K10314 GE Oven Left Rear Tube Assembly
21	WB1K83 GE Oven Screw
22	WB28K10326 GE Oven Right Front Tube Assembly
23	SCREW 1/4"-20
24	WB28K10313 GE Oven Left Front Tube Assembly
25	WB28K10325 GE Oven Right Rear Tube Assembly
26	GEN WB28K10585
29	GEN WB19K10021
32	GEN WB35K10068
33	GEN WB35K10060
216	GEN WB01K0006
219	OVEN DEFLECTOR
237	GEN WB28K10324
238	GEN WB28K10327
239	GEN WB28K10328
263	WB19K10028 GE Oven Pilot
272	WB34K10 GE Oven Broil Shield
711	GEN WB03K10204
712	GEN WB01K10056
970	WB01K10054 GE Screw 8-18 x 3/8"
971	GEN WB01K0011
975	WB01K10055 GE Washer
987	GEN WB02K0021
999	WB28K10414 GE Oven Conversion Kit Assembly
