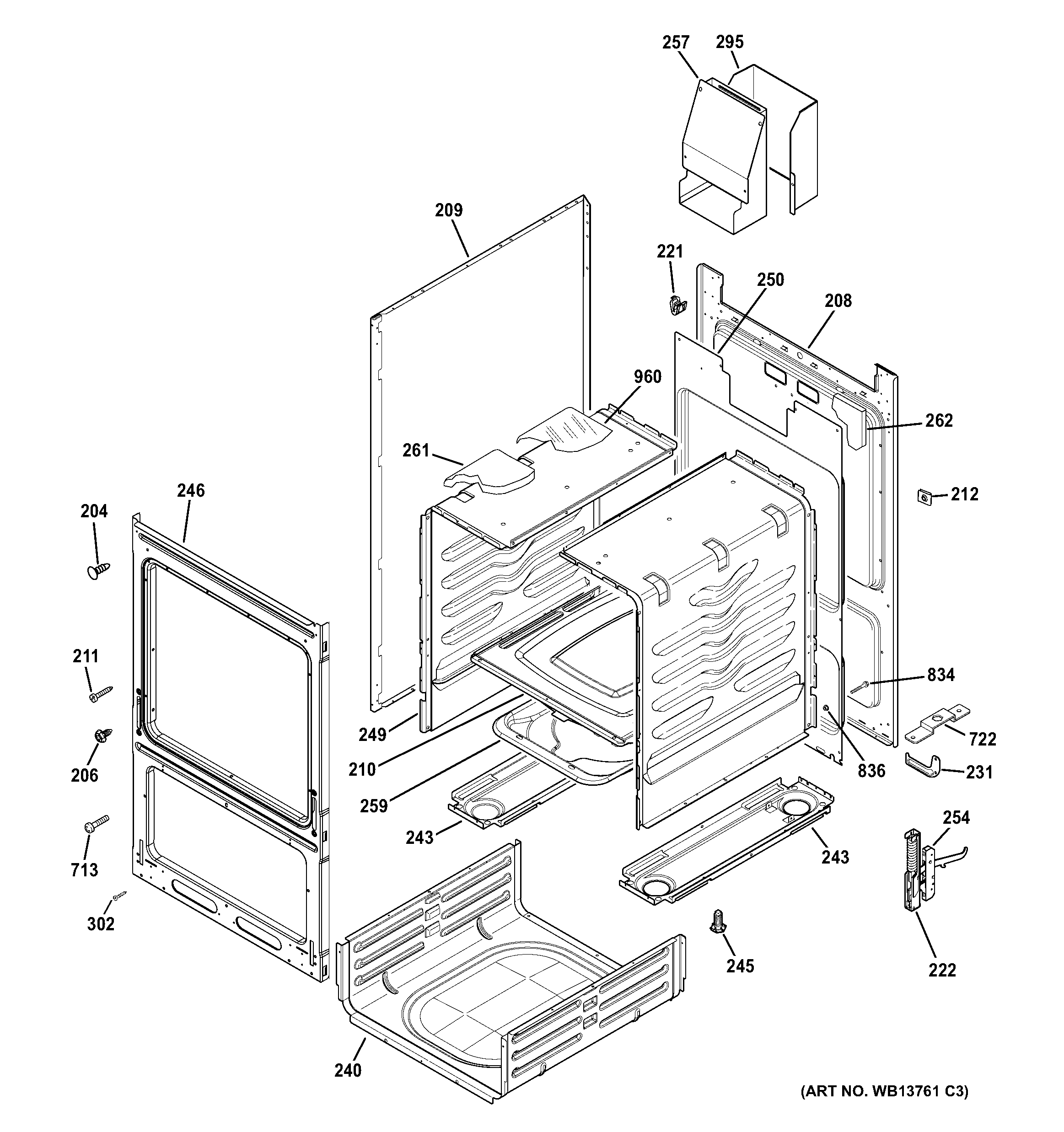

RGA720PK4WH BODY PARTS

RGA720PK4WH BODY PARTS

Written by

in

RGA720PK4WH BODY PARTS

Products

PositionProduct
204WB1K5062 GE Oven Screw
204WB01K10092 GE Screw
204WB01K10083 GE 8-32 Screw
204WB1K84 GE Oven Screw and
204WB01K10091 GE Oven Screw
206WB01K10062 GE Screw 8-18 x 3/8
208GEN WB63K10096
209WB63K10278 GE Oven Side Panel
210GEN WB63K10090
211WB1K5 GE Oven Screw 8-18 X B97
212GEN WB01X5743
221WB02K10073 GE Oven Clip Capillary
222WB10K10038 GE Oven Door Hinge Assembly
231WB2K20 GE Oven Bracket Assembly
231WB02K10124 GE Oven Anti-Tip Arm
240WB63K10089 GE Broiler Body
243WB63X29132 GE Gas Base Support Kit
245WB02K10126 GE Oven Level Screw
246GEN WB63K10276
249WB63K10075 GE Oven Side Assembly
250GEN WB63K10100
254WB10K10003 GE Oven Hinge Receptacle
257GEN WB38K10015
259GEN WB63K10099
261GEN WB35K10170
262GEN WB35K10066
295GEN WB35K10078
302WB01K10035 GE Oven Broiler Pin
713WB01K10057 GE Oven Screw
722GEN WB01K10059
834WB01K10050 GE Hex Screw 1/4-20 X 2 3/16"
836GEN WB01K10051
960GEN WB35K10067
