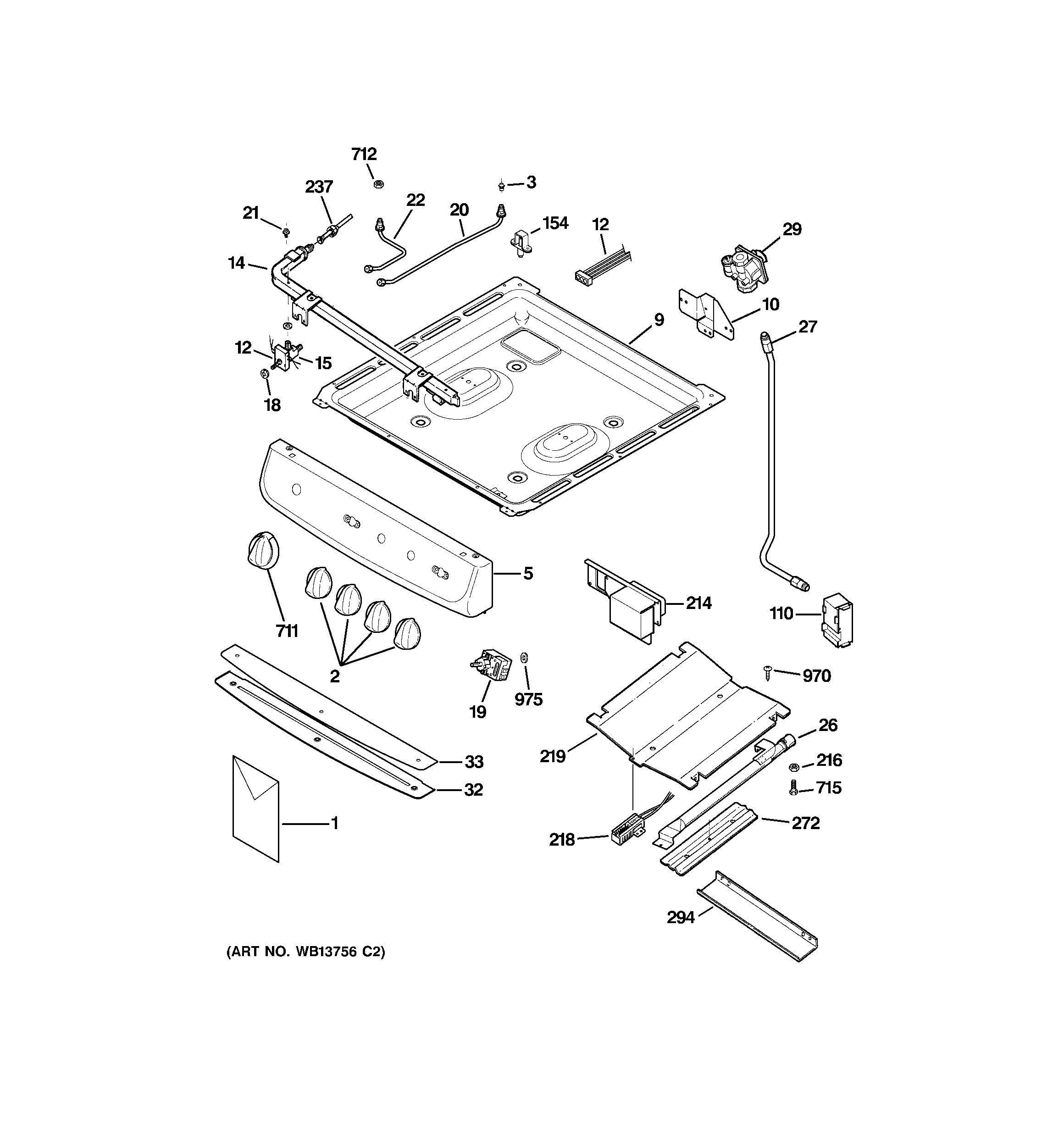

RGA724EK1WH GAS & BURNER PARTS

Products

Position	Product
1	GEN 49-85104
1	WB28K10491 GE Oven Gas Conversion Kit
1	GEN 31-21206
2	WB03K10034 GE Oven Burner Knob
3	WB28K10376 GE Oven Orifice
3	WB28K10319 GE Oven Orifice Spud
5	WB36K10564 GE Oven Manifold Panel Assembly 24
5	WB36K10570 GE Manifold Assembly Panel 20
9	WB64K10017 GE Oven Burner Box
9	WB64K10014 GE Burner Box
10	WB16K10058 GE Oven Double Burner G05
12	WB18X31211 GE Oven Burner Harness
14	WB28K10312 GE Manifold Pipe Assembly
15	140 BURNER VALVE
18	WB2K24 GE Oven Valve Cover
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
19	WB20K8 GE Oven Thermostat Temperature Control
20	WB28K10315 GE Oven Right Rear Tube Assembly
20	WB28K10325 GE Oven Right Rear Tube Assembly
20	WB28K10314 GE Oven Left Rear Tube Assembly
21	WB1K83 GE Oven Screw
22	WB28K10313 GE Oven Left Front Tube Assembly
22	WB28K10326 GE Oven Right Front Tube Assembly
22	WB28K10316 GE Oven Right Front Tube Assembly
26	WB16K10057 GE Oven Burner Assembly
27	WB19K10087 GE Oven Safety Valve Tube
29	GEN WB19K0028
32	GEN WB35K10068
32	GEN WB35K10059
33	GEN WB35K10069
33	GEN WB35K10060
110	WB20K5037 GE Oven Spark Module
154	WB18X26989 GE Oven Top Spark Electrode
214	WB19K10029 GE Oven Single Safety Valve
214	WB19K10020 GE Oven Single Safety Valve
216	GEN WB01K0004
218	WB13K10024 GE Oven Igniter Glowbar
219	OVEN DEFLECTOR
237	WB28K10318 GE Oven Supply Tube
272	WB34K10 GE Oven Broil Shield
294	GEN WB34K10085
294	GEN WB34K10084
711	WB03K10203 GE Oven Thermostat Knob Assembly
712	GEN WB01K10056
715	WB1X1293 GE Oven Screw
970	WB01K10054 GE Screw 8-18 x 3/8"
975	WB01K10055 GE Washer
