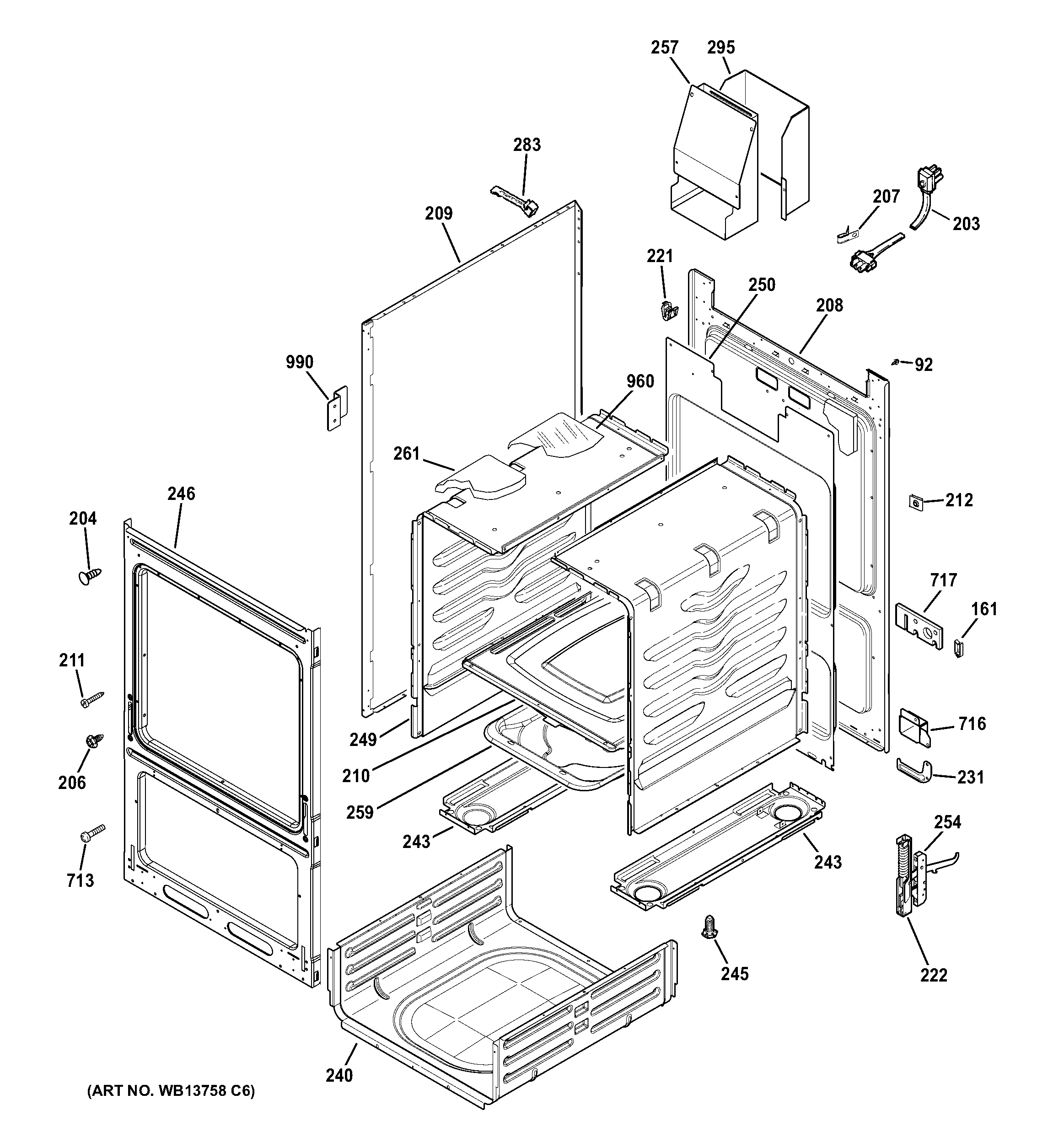

RGA724EK5WH BODY PARTS

RGA724EK5WH BODY PARTS

Written by

in

RGA724EK5WH BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
161GEN WB02X7066
203WB18K10036 GE Oven Line Cord
204WB01K10091 GE Oven Screw
204WB1K84 GE Oven Screw and
204WB01K10083 GE 8-32 Screw
204WB01K10092 GE Screw
204WB1K5062 GE Oven Screw
206WB01K10052 GE Screw
206WB01K10062 GE Screw 8-18 x 3/8
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10088
209WB63K10278 GE Oven Side Panel
210WB35X37969 GE Bottom Oven Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212GEN WB01X5743
221WB02K10073 GE Oven Clip Capillary
222WB10K10004 GE Oven Door Hinge Assembly
231WB02K10124 GE Oven Anti-Tip Arm
231WB2K20 GE Oven Bracket Assembly
240WB63K10097 GE Broiler Body
243WB63X29132 GE Gas Base Support Kit
245WB02K10126 GE Oven Level Screw
246WB63K10279 GE Front Frame 24
249WB63K10076 GE Oven Side
250WB63K10087 GE Oven Back
254WB10K10003 GE Oven Hinge Receptacle
257GEN WB38K10015
259WB63K10086 GE Base Support
261WB35K10169 GE Oven Insulation Wrap
283WB02X21679 GE Oven Wire Clip
295GEN WB35K10078
713WB01K10057 GE Oven Screw
716WB63K10093 GE Safety Valve Cover
717WB35K10079 GE Oven Safety Valve Insulation
960FOIL CAVITY WRAP
990GEN WB02K10131
