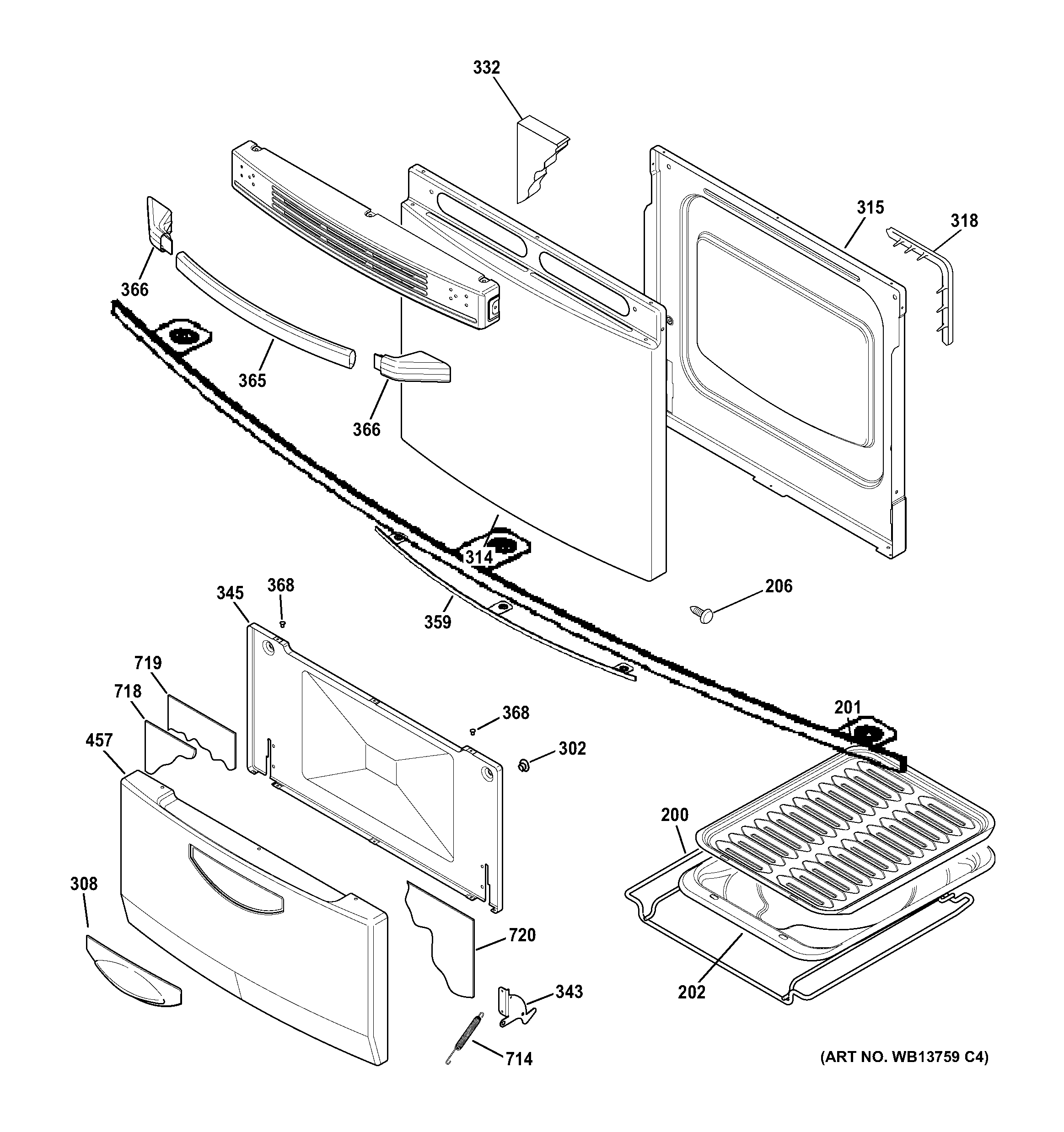

RGA724EK6WH DOOR & DRAWER PARTS

RGA724EK6WH DOOR & DRAWER PARTS

Written by

in

RGA724EK6WH DOOR & DRAWER PARTS

Products

PositionProduct
200WB48K10012 GE Oven Rack
200GEN WB48K10013
201WB48K10016 GE Oven Broil Pan Grid
202WB48K10015 GE Oven Broil Pan
206WB01K10052 GE Screw
206WB01K10062 GE Screw 8-18 x 3/8
302WB01K10035 GE Oven Broiler Pin
308WB15K10098 GE Oven Handle Pocket
314WB56K10098 GE Solid Door
343WB10K10006 GE Oven Broiler Hinge Assembly
343WB10K10005 GE Oven Broiler Hinge Assembly
359WB56K10054 GE Lower Protector
365WB15K10066 GE Oven Door Handle
366WB7X7189 GE Oven Range Door Handle Endcap White
368WB2K15 GE Oven Grate Bumper
457WB56K10027 GE 24" Kick Panel
714WB1K39 GE Washer Spring
714WB09K10003 GE Oven Broil Door Spring
718GEN WB35K10080
719GEN WB35K10081
720GEN WB35K10171
