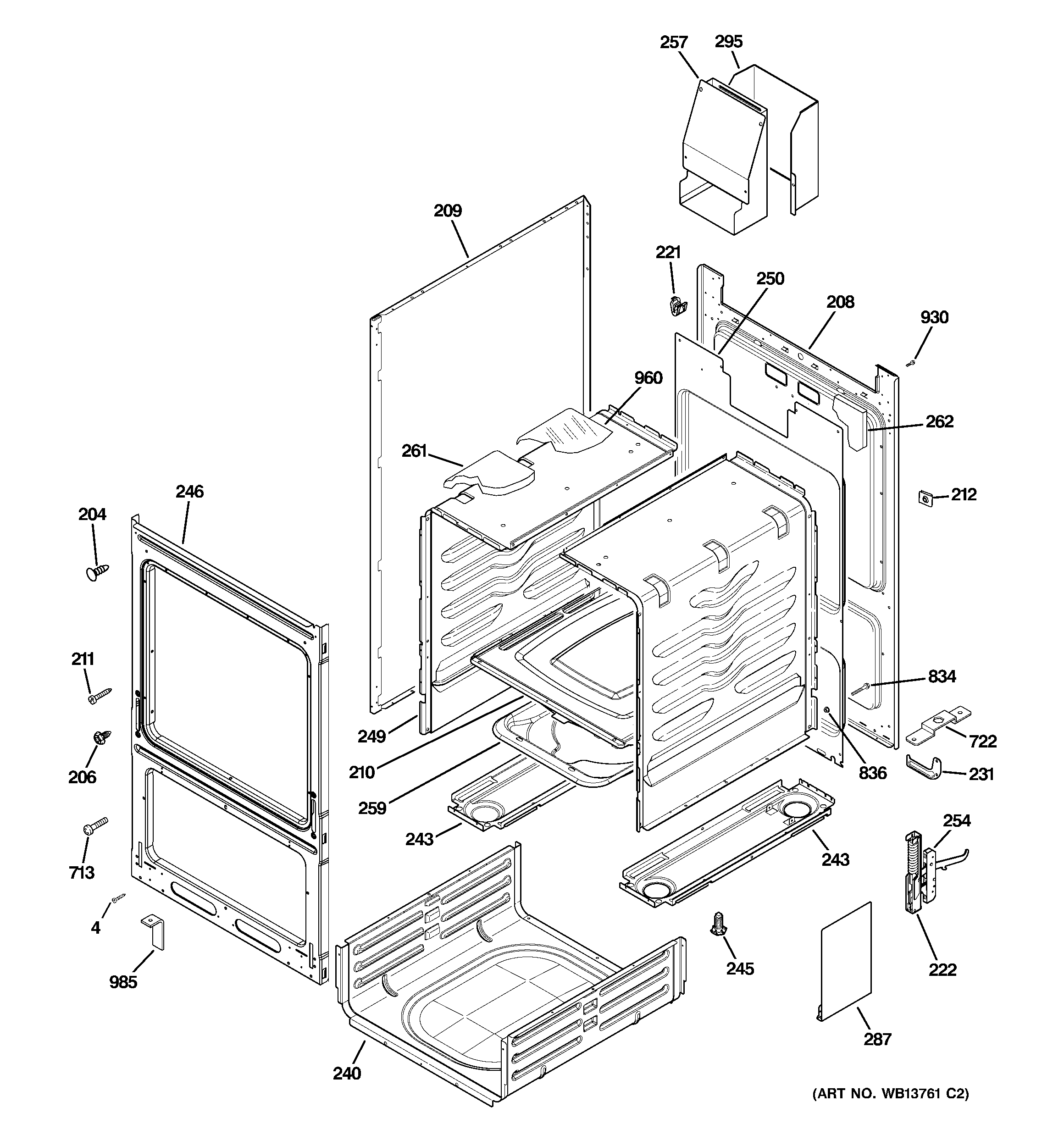

RGA724PK3WH BODY PARTS

RGA724PK3WH BODY PARTS

Written by

in

RGA724PK3WH BODY PARTS

Products

PositionProduct
4WB01K10035 GE Oven Broiler Pin
4WB01K10062 GE Screw 8-18 x 3/8
204WB01K10083 GE 8-32 Screw
204WB01K10091 GE Oven Screw
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
206WB1X5364 GE Oven Mounting Screw
208GEN WB63K10088
209WB63K10080 GE Oven Side Panel
210WB35X37969 GE Bottom Oven Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212GEN WB01X5743
221WB02K10073 GE Oven Clip Capillary
222WB10K10004 GE Oven Door Hinge Assembly
231WB02K10124 GE Oven Anti-Tip Arm
231WB2K20 GE Oven Bracket Assembly
240WB63K10097 GE Broiler Body
243GEN WB63K10185
245WB02K10126 GE Oven Level Screw
246GEN WB63K10083
249WB63K10076 GE Oven Side
250OVEN BACK
254WB10K10003 GE Oven Hinge Receptacle
257GEN WB38K10015
259WB63K10086 GE Base Support
261WB35K10169 GE Oven Insulation Wrap
287GEN WB34K10076
295GEN WB35K10078
713WB01K10057 GE Oven Screw
722GEN WB01K10059
930WB01K10052 GE Screw
960GEN WB35K10076
985WB02K10130 GE Oven Door Insulation Support
