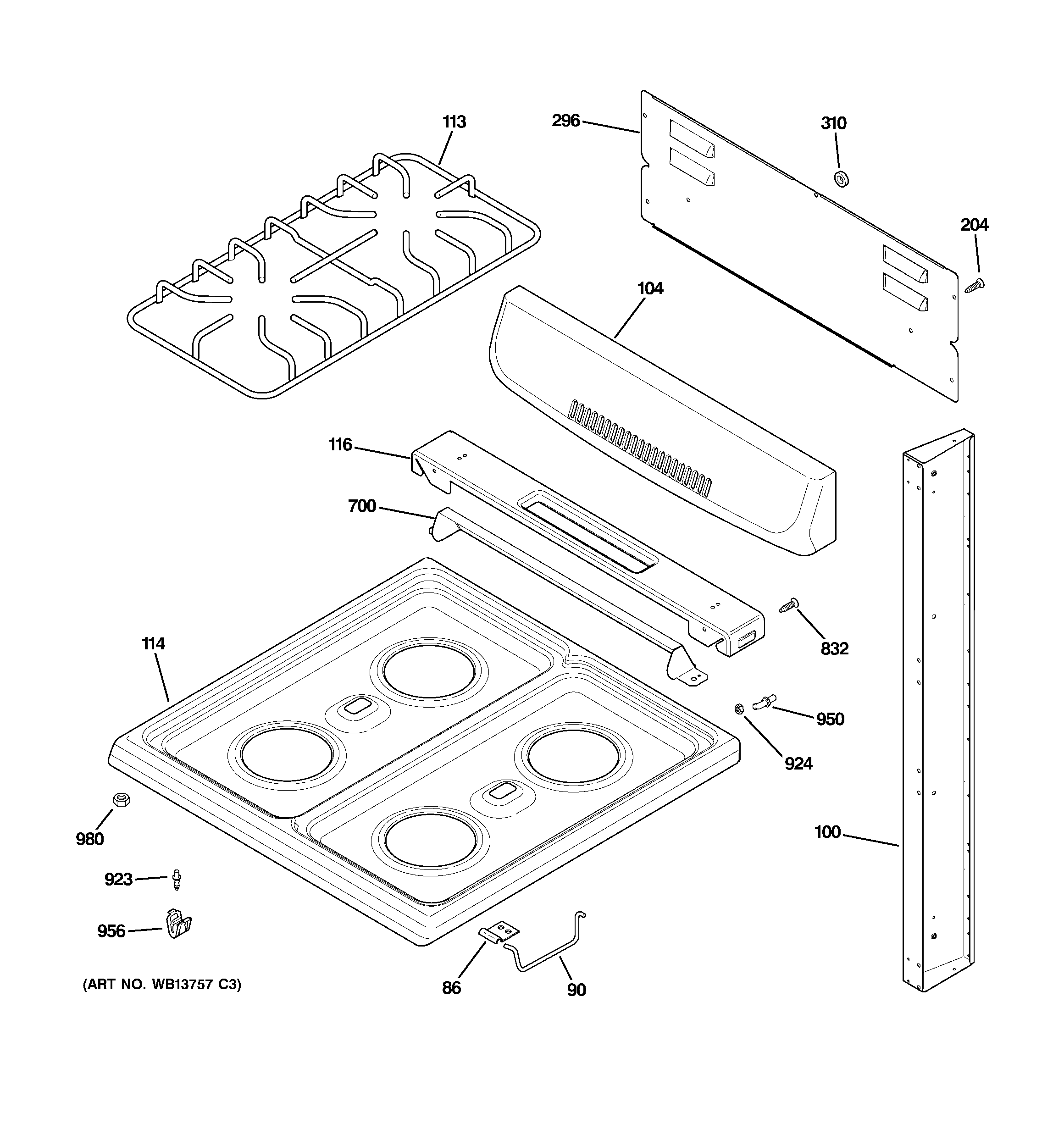

RGA724PK3WH CONTROL PANEL & COOKTOP

RGA724PK3WH CONTROL PANEL & COOKTOP

Written by

in

RGA724PK3WH CONTROL PANEL & COOKTOP

Products

PositionProduct
86GEN WB02K10089
90WB02K10088 GE Main Top Support Rod
100WB63K10074 GE Side Panel Complement
104GEN WB36K10563
113WB31K10263 GE Oven Grate Assembly
114RANGE TOP 24
116WB36K10561 GE Cooktop Assembly
204WB01K10083 GE 8-32 Screw
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
204WB01K10091 GE Oven Screw
296GEN WB34K10077
310WB01K10023 GE Oven Grommet Handle
700WB35K10077 GE Deflector Backguard
832WB01K10043 GE Oven Screw
923GEN WB02K10128
924WB01K10048 GE Hex Lock Nut
950WB02K10129 GE Cooktop Guide
956WB02K10091 GE Range Door Strike Catch
980WB01K10041 GE Oven Hex Lock Nut
