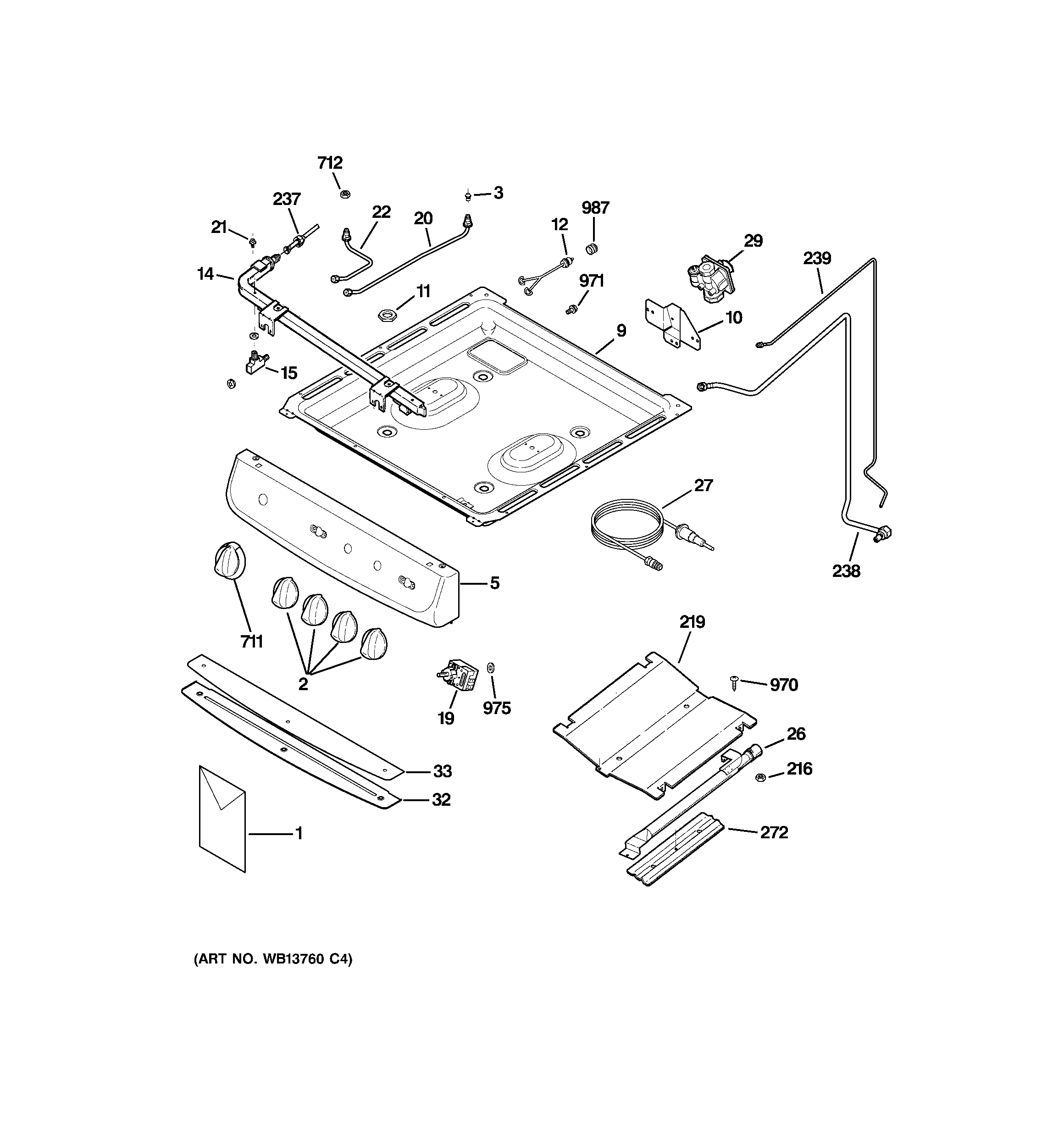

RGA724PK3WH GAS & BURNER PARTS

Products

Position	Product
1	GEN 49-85104
2	WB03K10034 GE Oven Burner Knob
3	WB28K10319 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
5	PANEL MANIFOLD ASM 24
9	WB64K10014 GE Burner Box
10	WB16K10058 GE Oven Double Burner G05
11	GEN WB01K0004
12	GEN WB19K0005
14	GEN WB28K10321
15	WB21K38 GE Oven Burner Valve
19	WB20K10020 GE Oven Modulating Thermostat
20	WB28K10314 GE Oven Left Rear Tube Assembly
20	WB28K10315 GE Oven Right Rear Tube Assembly
21	WB1K83 GE Oven Screw
21	SCREW 1/4"-20
22	WB28K10316 GE Oven Right Front Tube Assembly
22	WB28K10313 GE Oven Left Front Tube Assembly
26	GEN WB19K10052
26	GEN WB28K10585
27	WB19K10025 GE Oven Thermocouple
29	GEN WB19K10021
32	GEN WB35K10059
33	GEN WB35K10069
216	GEN WB01K0006
219	OVEN DEFLECTOR
237	GEN WB28K10324
238	OVEN TUBE SUPPLY
239	PILOT TUBE SUPPLY
272	WB34K10 GE Oven Broil Shield
711	GEN WB03K10204
712	GEN WB01K10056
970	WB01K10054 GE Screw 8-18 x 3/8"
971	GEN WB01K0011
975	WB01K10055 GE Washer
987	GEN WB02K0021
