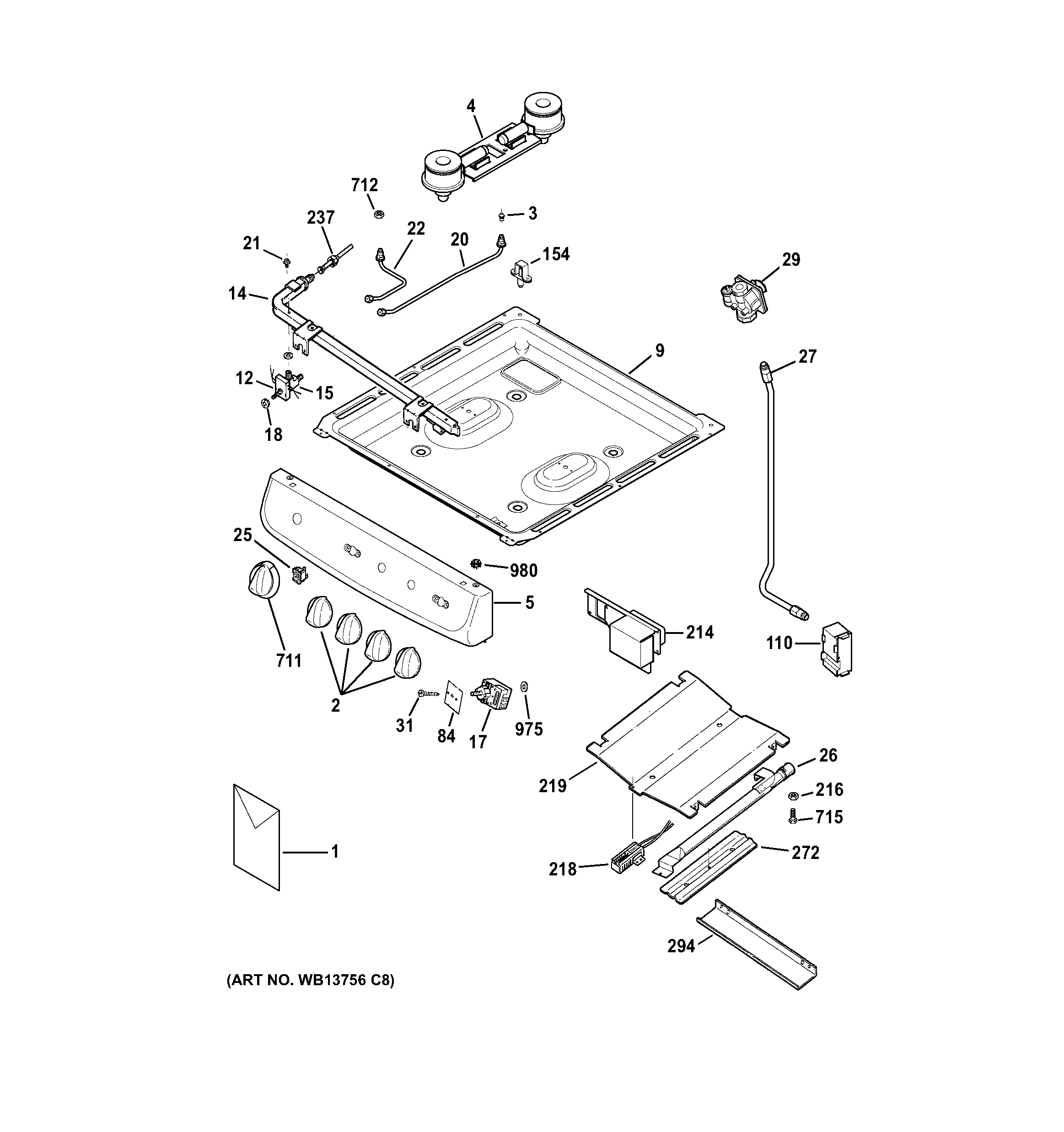

RGA820DED1WW CONTROL PANEL, GAS & BURNER PARTS

RGA820DED1WW CONTROL PANEL, GAS & BURNER PARTS

Written by

in

RGA820DED1WW CONTROL PANEL, GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-10840
2WB03K10034 GE Oven Burner Knob
3WB28K10376 GE Oven Orifice
3WB28K10319 GE Oven Orifice Spud
4WB16K10058 GE Oven Double Burner G05
5GEN WB36K11032
9WB64K10017 GE Oven Burner Box
12WB18X31204 GE Burner Box Harness
14WB28K10312 GE Manifold Pipe Assembly
15WB21K38 GE Oven Burner Valve
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
20WB28K10325 GE Oven Right Rear Tube Assembly
20WB28K10314 GE Oven Left Rear Tube Assembly
21WB1K8 GE Oven Thermostat Screw
21WB1K83 GE Oven Screw
22WB28K10326 GE Oven Right Front Tube Assembly
22WB28K10313 GE Oven Left Front Tube Assembly
25WB24K5022 GE Oven Rocker Switch
29GEN WB19K0028
84COVER THERMOSTAT
110WB20K5037 GE Oven Spark Module
214WB19K10029 GE Oven Single Safety Valve
216GEN WB01K0004
216GEN WB01K0006
218WB13K10024 GE Oven Igniter Glowbar
218WB16K10057 GE Oven Burner Assembly
219OVEN DEFLECTOR
237WB28K10318 GE Oven Supply Tube
294GEN WB34K10084
711WB03K10203 GE Oven Thermostat Knob Assembly
712GEN WB01K10056
715WB1X1293 GE Oven Screw
975WB01K10055 GE Washer
980WB01K10041 GE Oven Hex Lock Nut
