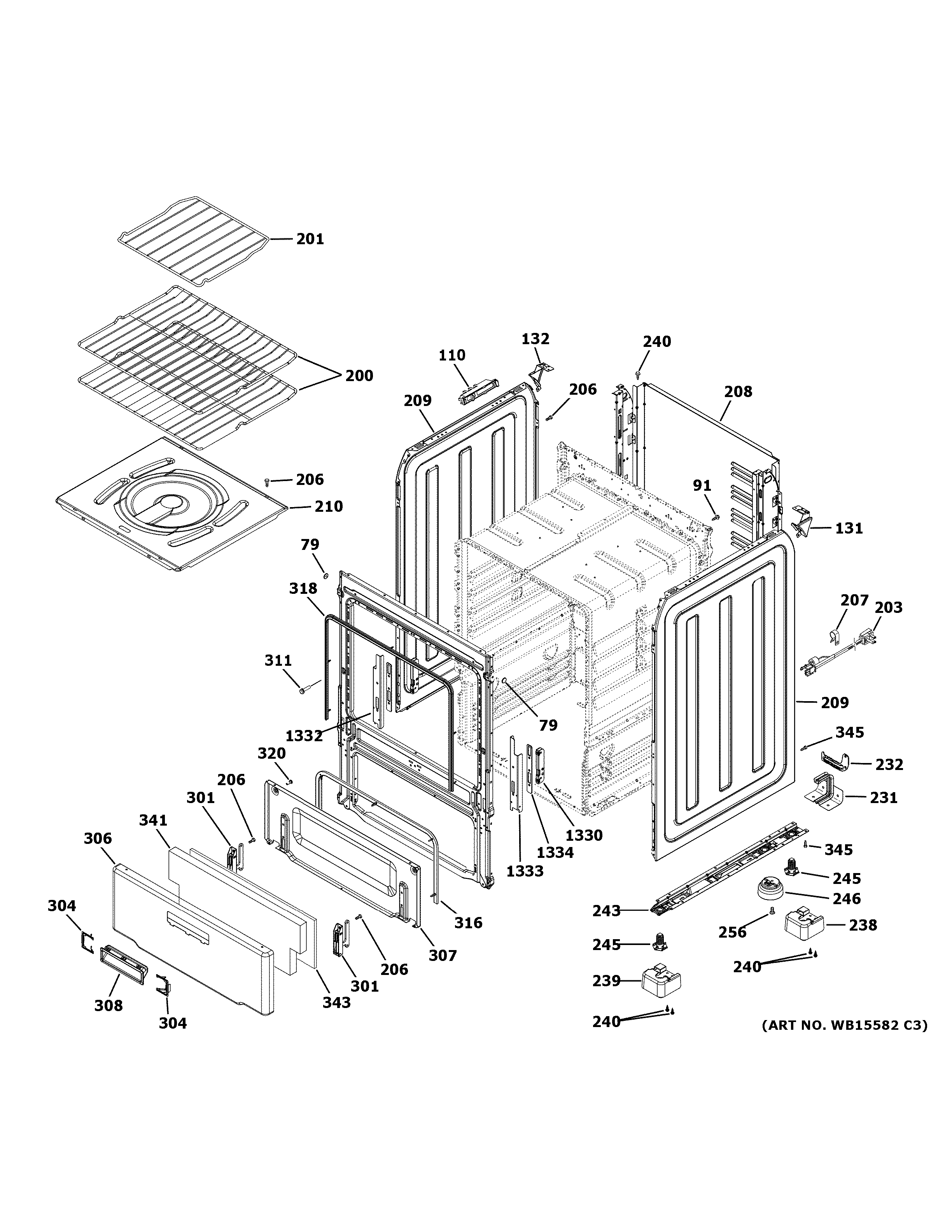

RGAS200DM1WW BODY PARTS

RGAS200DM1WW BODY PARTS

Written by

in

RGAS200DM1WW BODY PARTS

Products

PositionProduct
79SPACER SIDE
91WB1X1261 GE Oven Screw
110WB13X24323 GE Oven Ignition Module
131WB02X31043 GE Oven Right-Hand Side Complement
132WB02X31044 GE Oven Left Hand Side Complement
200WB48X31042 GE Oven Rack
201BROILER RACK
203WB18K10036 GE Oven Line Cord
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
207WB2K36 GE Oven Clamp Cable
208COVER BACK
209WB56X30953 GE Oven White Side Panel Assembly
210OVEN BOTTOM
231WB02X30959 GE Refrigerator Anti-Tip Bracket Assembly
232WB02K10124 GE Oven Anti-Tip Arm
238COVER SUPPORT BASE
239WB16X31026 GE Cover Support Base
240WB01X31119 GE Screw 8-18
243WB37X30907 GE Base Support
245WB02X31920 GE Appliance Foot Leveling
246SPACER BASE
256WB01X30915 GE Screw
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306PANEL DRAWER 50
307LINER DRAWER
308WB15X26670 GE Broil Handle
311BUMPER
316GASKET DRAWER ASM
318WB32X31926 GE Door Gasket
320WB2K15 GE Oven Grate Bumper
341DRAWER PANEL INSULATION
343WB35X26892 GE Oven Side Panel Foil
345WB1K5062 GE Oven Screw
1330WB10X31976 GE Receiver Hinge
1332WB10X30947 GE Left Hand Gusset Hinge
1333WB10X30946 GE Right Hand Hinge Gusset
1334PLATE HINGE
