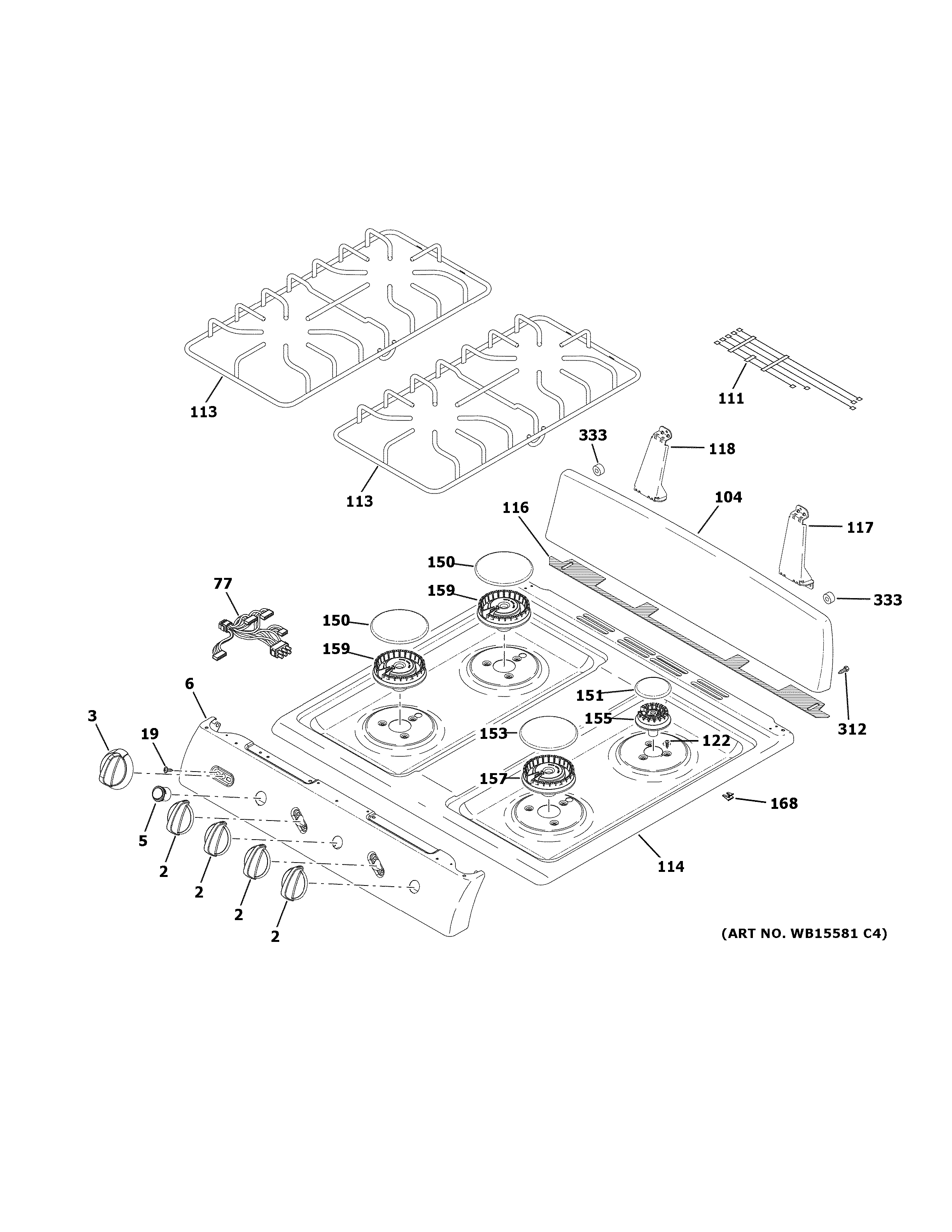

RGAS300DM1WW CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X31144 GE White Mini Valve Knob
3	WHITE KNOB THERMOSTAT
5	WB24X31930 GE Range Switch
6	WB36X31168 GE Manifold Panel
19	WB1K8 GE Oven Thermostat Screw
77	HARNESS MAIN
104	WB36X31242 GE Backguard 60
111	ELECTRODE TOP & HARNESS HV
113	WB31X31186 GE Oven Top Grate
114	WB62X31243 GE Range Top Assembly
116	SEAL BACKSPLASH
117	WB34X32262 GE Backsplash Bracket
118	WB34X32264 GE Backsplash Bracket
122	WB01X24735 GE Oven CKT Screw
150	WB16X24724 GE Oven Medium Burner
151	WB16X29450 GE Range Small Burner Cap V2
153	WB29K10006 GE Oven Burner Cap
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
157	BURNER LARGE V2
159	WB29K10001 GE Oven Burner Cap
168	WB02X24976 GE Oven Igniter Clip V2
312	WB01K10091 GE Oven Screw
333	WB01K10020 GE Oven Handle Spacer
