RGB502PS1WH 3

RGB502PS1WH 3

Written by

in

RGB502PS1WH 3

Products

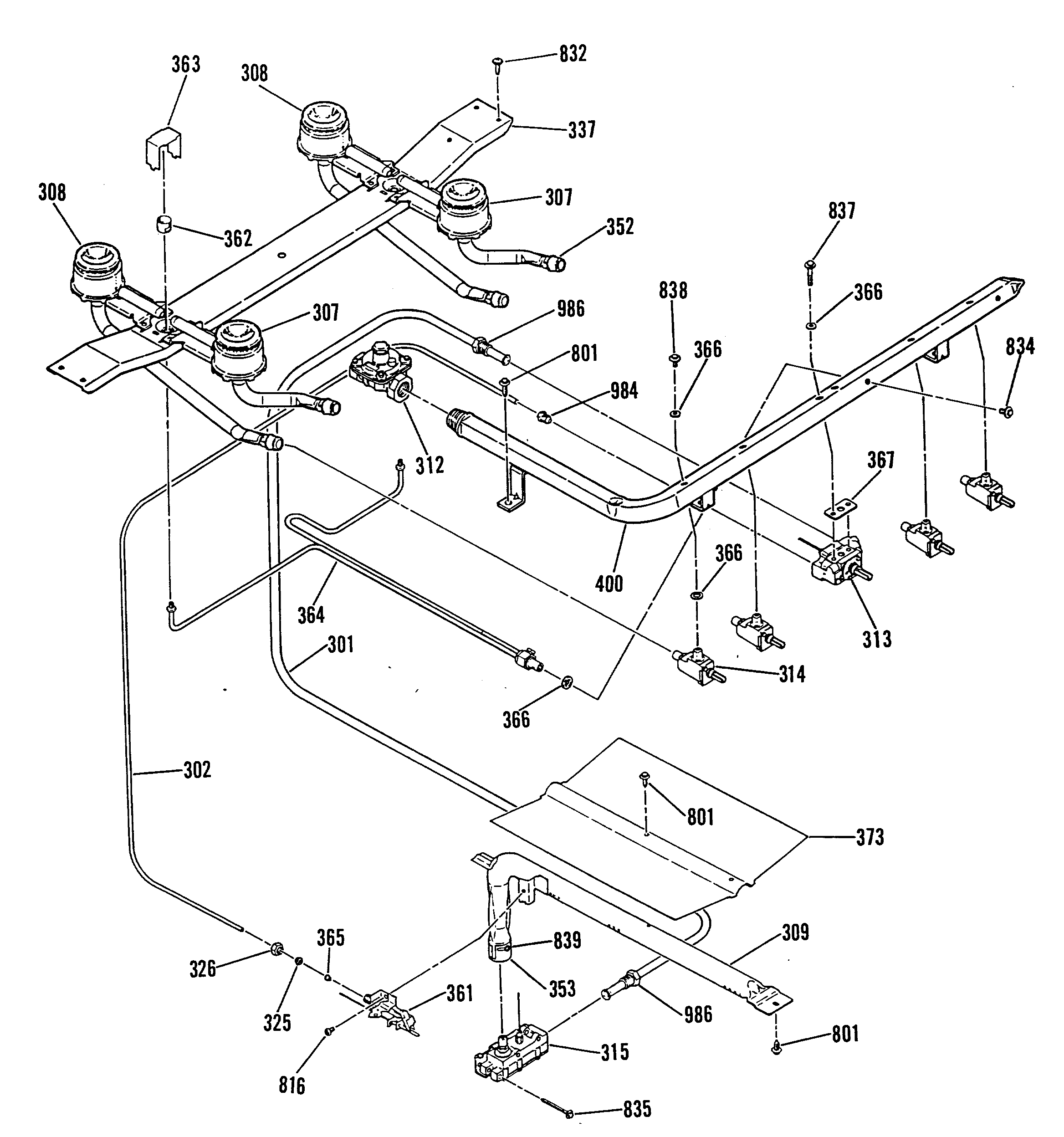

Position	Product
301	GEN WB28K5014
302	GEN WB28K5013
307	TOP BURNER ASM-FRONT
308	TOP BURNER ASM-REAR
309	GEN WB16M0008
312	GEN WB21X0465
313	GEN WB21X0471
314	VALVE-TOP BURNER
315	GEN WB21X0474
325	TUBING SLEEVE 3/16
326	TUBING NUT 3/16
337	TOP BURNER SUPPORT
352	GEN WB02X9739
353	AIR SHUTTER-OVEN
361	GEN WB02X9186
362	GEN WB02X9086
363	GEN WB02K5155
364	FILTER W/PILOT
365	GEN WB02X9017
366	VALVE GASKET
366	GASKET
366	GEN WB02X9089
367	THERMOSTAT GASKET
373	OV BURN BAFFLE
400	MANIFOLD PIPE ASM
801	WB1M1 GE Oven Screw
816	GEN WB01X1125
832	WB1X1118 GE Oven Screw 6-32T
834	GEN WB01X1155
835	GEN WB01X1123
837	GEN WB01X1151
838	GEN WB01X1121
839	AIR SHUTTER SCREW-OVEN
984	HEX NUT
986	NUT
