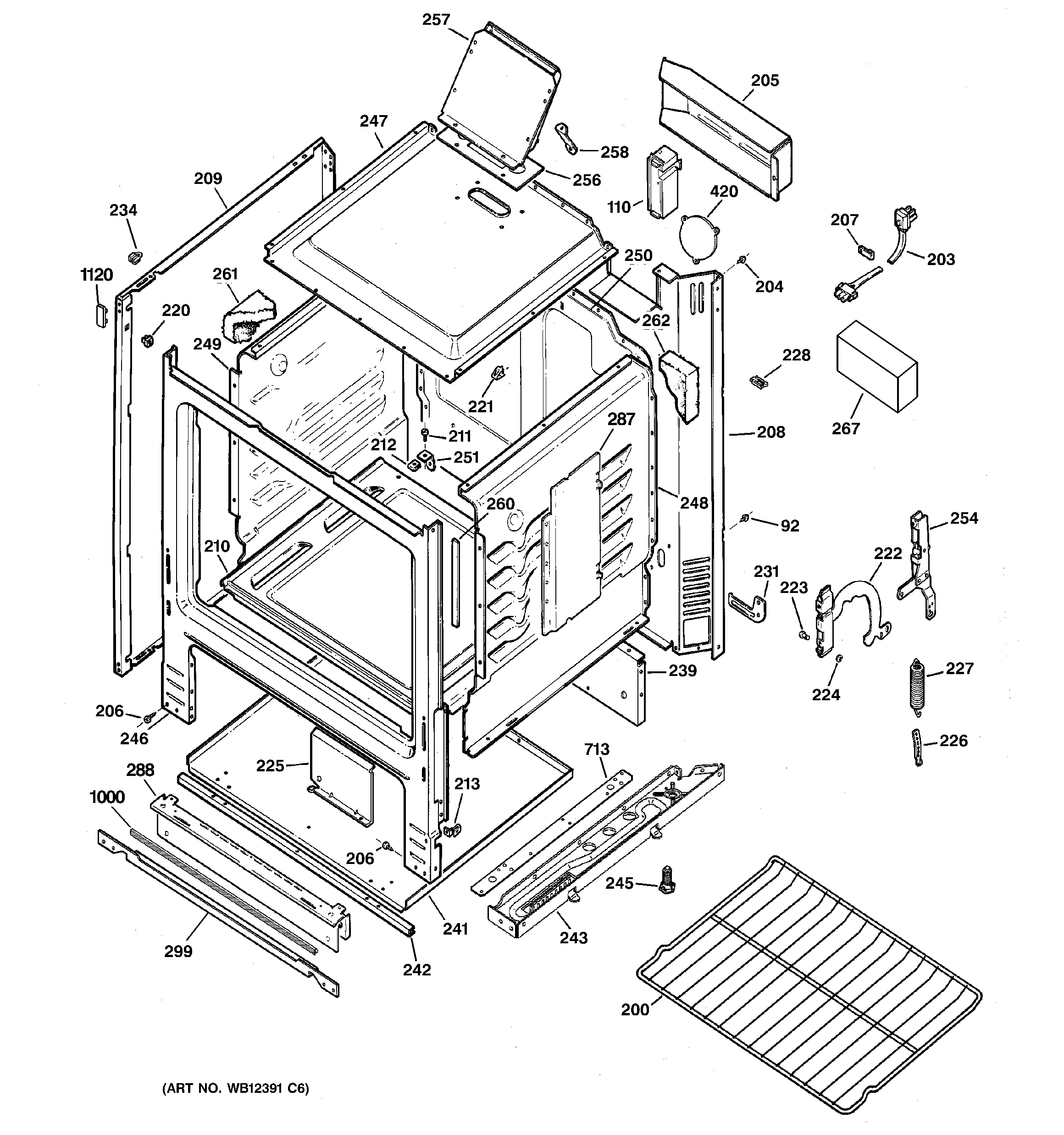

RGB508PEH6WH BODY PARTS

RGB508PEH6WH BODY PARTS

Written by

in

RGB508PEH6WH BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
110WB13X24321 GE Oven Ignition Module
200WB48T10095 GE Oven Rack
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X5364 GE Oven Mounting Screw
205GEN WB34K0021
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB63K20 GE Ran Back
209WB63K10122 GE Oven Side Panel
209GEN WB63K10124
210GEN WB35K10042
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0001
228GEN WB02X7066
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
234GEN WB02K0066
239GEN WB63K0001
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10176
247GEN WB53K0001
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250WB53K10016 GE Oven Back
251WB2K3 GE Angle Support
254SUPPORT ASM RIVET LF
254GEN WB01K0053
254SUPPORT ASM RIVET RT
256GEN WB32K0001
257GEN WB38K0004
258GEN WB38K0003
260GASKET OVEN SEAL
261WB35K10155 GE Oven Insulation Wrap
262WB35K10162 GE Oven Back Insulation
267GEN WB06K10002
287WB34K30 GE Radiation Guard
287GEN WB34K0031
288BRACE
299WB1K43 GE Oven Support Bracket
420GEN WB34K0016
713WB39K33 GE Support
1000WB04K10021 GE Oven Front Frame Gasket
1120WB02K10180 GE Oven Bumper
1120WB02K10179 GE Range Bumper
