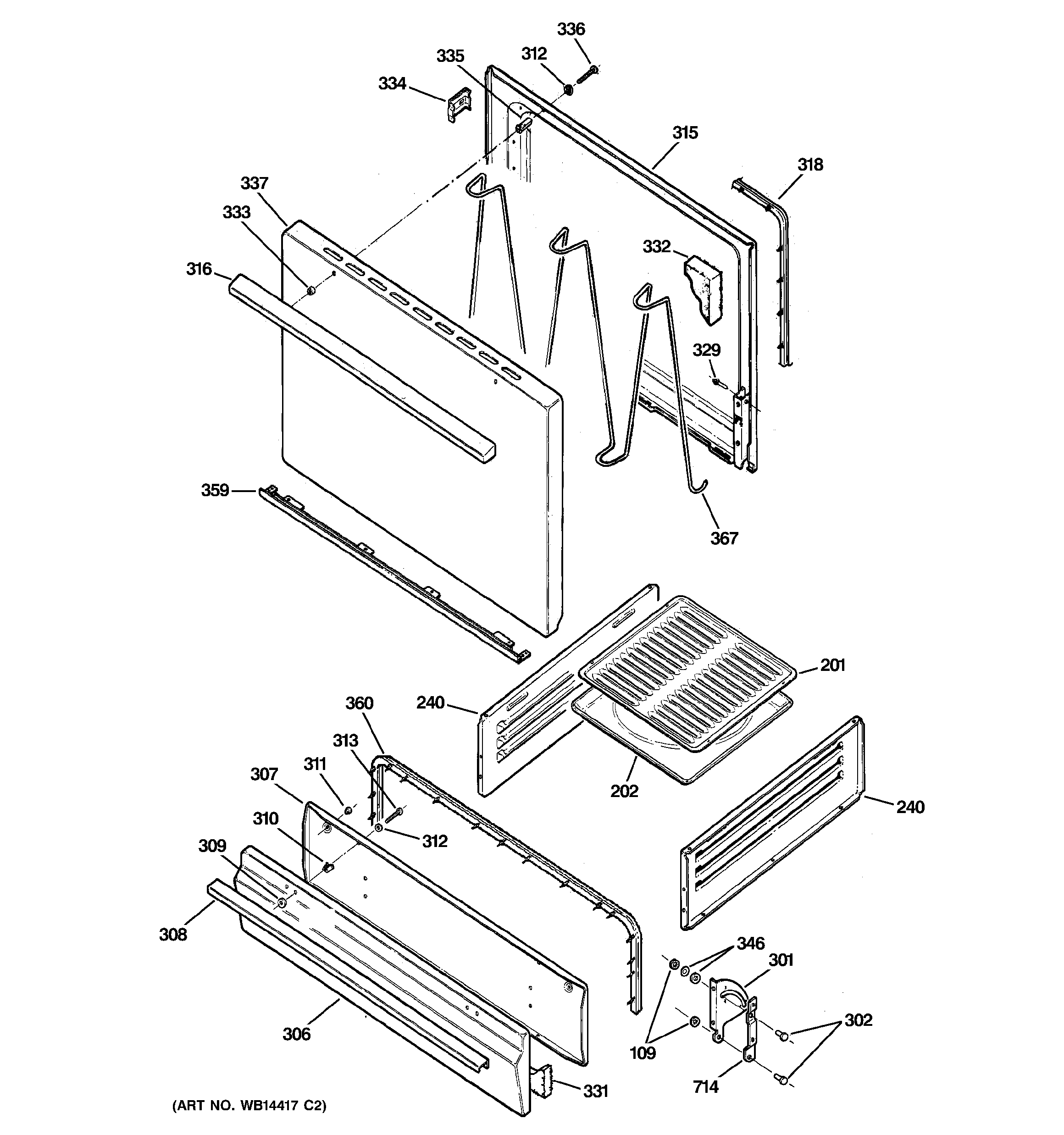

RGB508PEH8CT DOOR & DRAWER PARTS

RGB508PEH8CT DOOR & DRAWER PARTS

Written by

in

RGB508PEH8CT DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
201WB48X10056 GE Broil Pan Set, Large Porcelain
240WB63X26890 GE Oven Broiler Panel
301GEN WB10K0010
301GEN WB10K0011
302WB1K7 GE Oven Broiler Pin
302WB01K10035 GE Oven Broiler Pin
302WB01K10036 GE Washer Spring Washer
306GEN WB39K10017
307GEN WB39K10035
308GEN WB15K10031
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K10045
316WB15K1 GE Oven Broil Handle
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332INSULATION DOOR
333WB01K10020 GE Oven Handle Spacer
335WB02K10156 GE Oven Spacer
336SCR 10-16 X 2 3/4
337WB56K10042 GE Range Door Panel
346GEN WB01K0038
359GEN WB07K10342
360GEN WB04K10023
367GEN WB33K0001
714WB39K35 GE Oven Left Hand Broil Support
714WB39K34 GE Oven Broil Support Right
