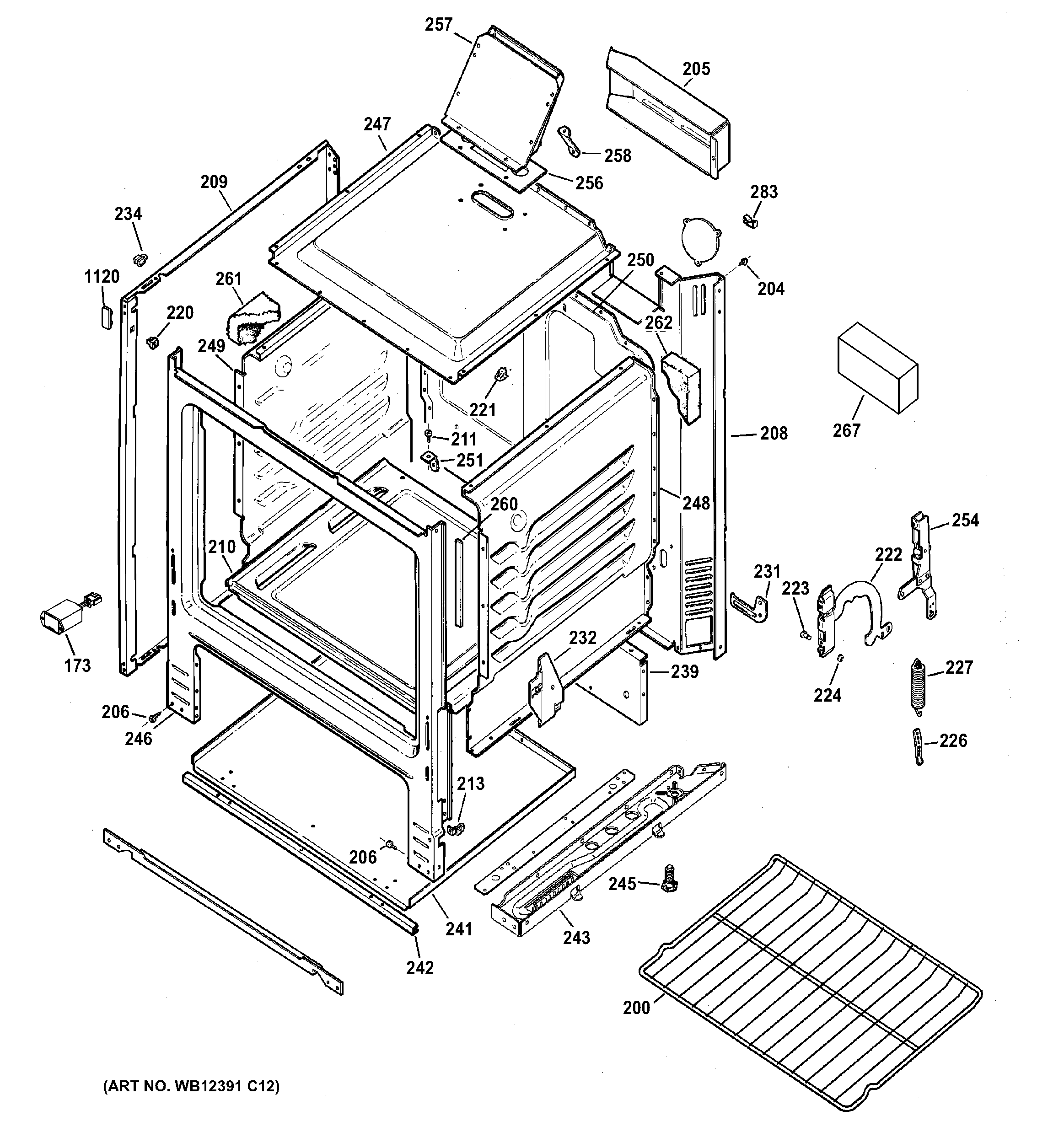

RGB518PCD1CT BODY PARTS

RGB518PCD1CT BODY PARTS

Written by

in

RGB518PCD1CT BODY PARTS

Products

PositionProduct
173WB18K10088 GE Oven Battery Case
200OVEN RACK
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10144 GE Back Panel Cover
206WB01K10091 GE Oven Screw
208WB63K20 GE Ran Back
209WB63K10122 GE Oven Side Panel
209GEN WB63K10124
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K10004
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
239GEN WB63K0001
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10231 GE Base Support
243GEN WB63K10230
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10275
247GEN WB53K0001
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250WB53K10016 GE Oven Back
251WB2K3 GE Angle Support
254GEN WB01K0053
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
256GEN WB32K0001
257GEN WB38K0004
258GEN WB38K0003
260WB32K2 GE Oven Gasket Seal
261WB35K10155 GE Oven Insulation Wrap
262WB35K10226 GE Oven Back Insulation
267GEN WB06K10002
283WB02X21679 GE Oven Wire Clip
1120WB02K10179 GE Range Bumper
1120WB02K10180 GE Oven Bumper
