RGB518PCD1CT CONTROL PANEL & COOKTOP

RGB518PCD1CT CONTROL PANEL & COOKTOP

Written by

in

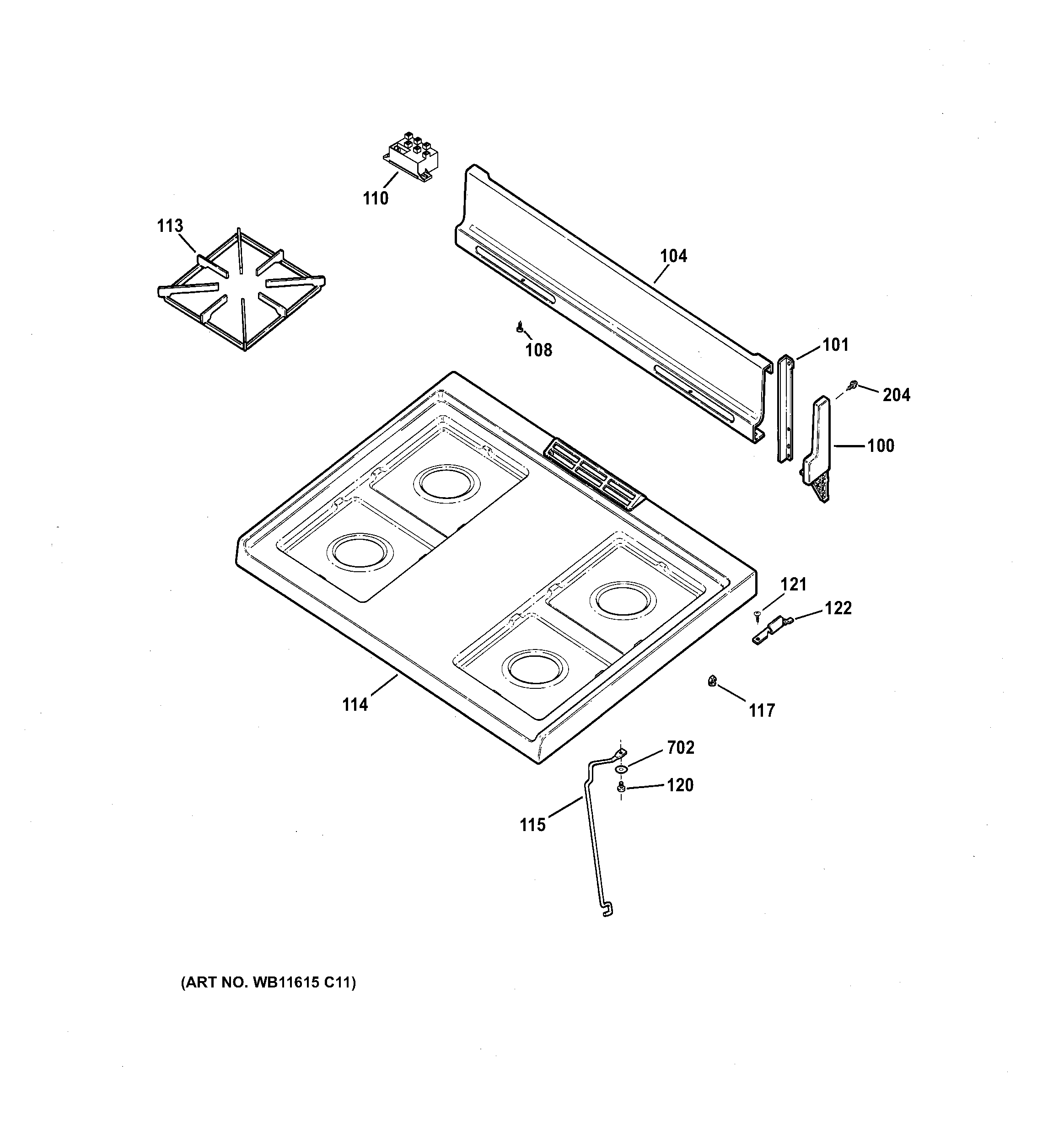

RGB518PCD1CT CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB7K12 GE Oven Left Endcap
100WB7K11 GE Oven Right Endcap
101WB37K5 GE Can Bracket
101GEN WB37K0006
104WB37K4 GE Oven Can Back
108WB1X5364 GE Oven Mounting Screw
110WB13K10053 GE Oven Ignition Module
113WB31K10015 GE Oven Black Grate
114WB62K10064 GE Oven Flat Cooktop (Bisque)
114WB62K10001 GE Oven Cooktop
115GEN WB06K0008
117GEN WB02K0017
120WB1K45 GE Oven Screw and Washer Assembly
121GEN WB01K0078
122GEN WB10K0019
122WB10K18 GE Oven Guide Hinge
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
