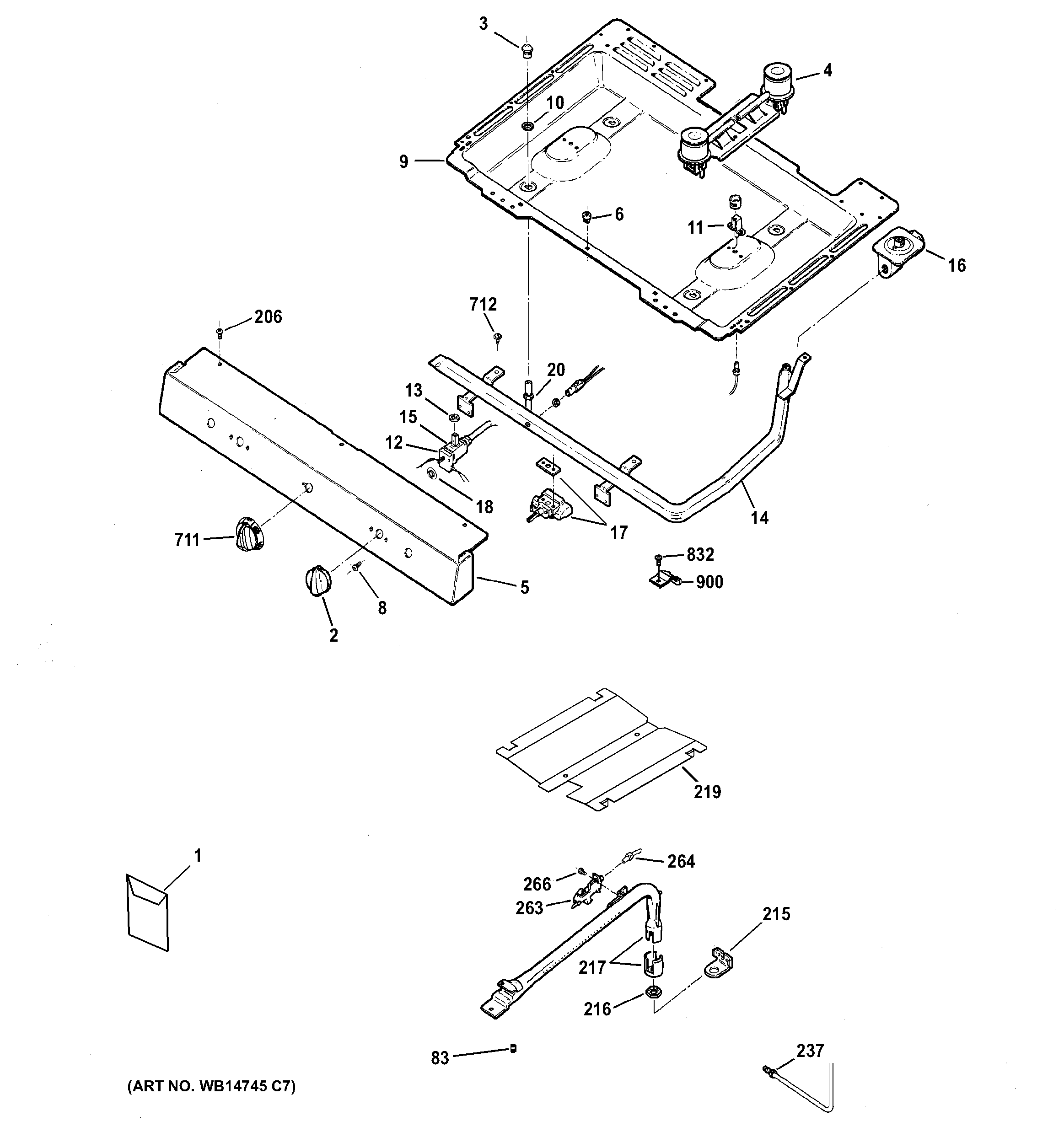

RGB518PCD2WH GAS & BURNER PARTS

Products

Position	Product
1	WB49X21392 GE Oven Hinge Service Kit
1	GEN 49-85215
1	GEN 31-10928
1	GEN 31-10935
2	WB03K10035 GE Oven Top Burner Knob
3	WB28K10033 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB36K11012
6	GEN WB02K0009
8	WB01K10002 GE Oven Screw 8-32
9	WB64K10001 GE Oven Burner Box
10	GEN WB01K0004
11	WB19K10083 GE Oven Top Spark Electrode
11	WB18X26992 GE Spark Electrode
12	WB18X31206 GE Oven Burner Box Harness
14	ROUND MANIFOLD PIPE
15	ROUND VALVE BURNER
16	WB19K10054 GE Oven Pressure Regulator
17	WB20K10037 GE Oven Modulating Thermostat
18	WB2K24 GE Oven Valve Cover
20	WB28K10011 GE Oven Rear Burner Tube
20	WB28K10012 GE Oven Rear Burner Tube
20	WB28K10010 GE Oven Front Tube Assembly
20	WB28K10009 GE Oven Burner Tube
83	WB28X21079 GE Oven Spud Orifice
206	WB01K10091 GE Oven Screw
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10082 GE Oven Burner Assembly
219	WB49K10044 GE Oven Deflector
237	WB28K10171 GE Oven Supply Tube Valve
263	WB19K10088 GE Oven Pilot Assembly
264	WB28K10843 GE Oven Pilot Supply Tube
266	WB1X1293 GE Oven Screw
711	WB03K10358 GE Oven Thermostat Knob Assembly
712	WB1K37 GE Oven Screw
832	WB01K10097 GE Range Thermostat Screw
832	WB01K10080 GE Oven Thermostat Screw
832	WB01K10043 GE Oven Screw
900	WB02K10263 GE Oven Round Valve Bracket
900	WB02K10264 GE Thermostat Bracket
