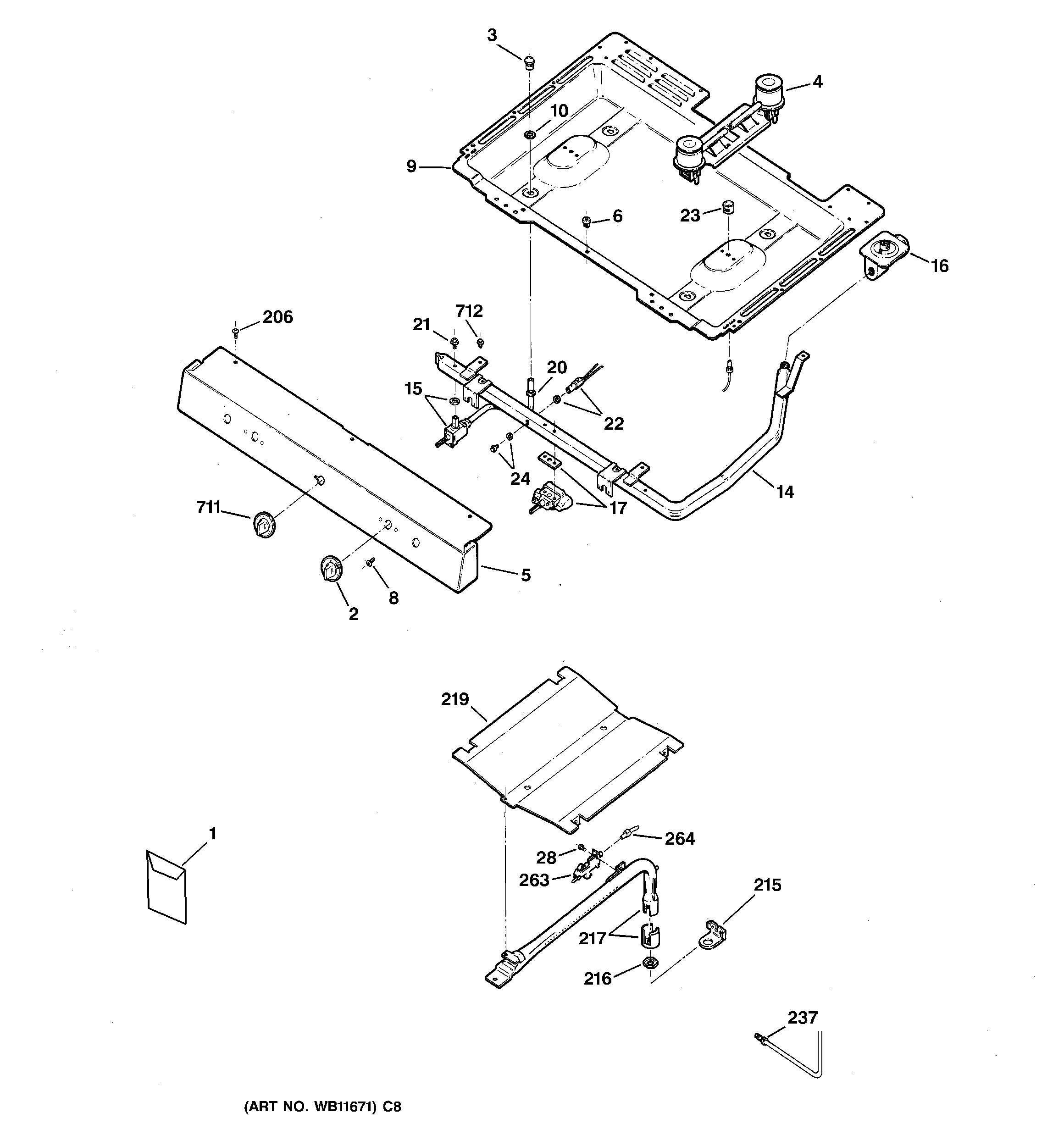

RGB523PPH3WH GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21238
1	WB28K10593 GE Oven Conversion Kit Assembly
1	GEN 49-85053
1	GEN WB01K0055
2	WB03K10035 GE Oven Top Burner Knob
3	WB28K10033 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB36K10760
6	GEN WB02K0009
8	WB01K10002 GE Oven Screw 8-32
9	WB64K10001 GE Oven Burner Box
10	GEN WB01K0004
14	GEN WB28K10250
15	140 BURNER VALVE
16	GEN WB21X0516
17	WB19K10025 GE Oven Thermocouple
17	GEN WB20K10014
20	GEN WB28K10179
20	GEN WB28K10181
20	GEN WB28K10180
20	GEN WB28K10178
21	WB01K10067 GE Oven Screw 1/4" HD 20
21	WB01K10066 GE Oven Screw 8 HD 10-32
22	GEN WB19K10011
23	GEN WB02K0021
24	GEN WB01K10068
28	WB1X1293 GE Oven Screw
206	WR01X10065 GE Screw
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	GEN WB16K10066
219	OVEN DEFLECTOR
237	GEN WB28K10182
263	WB16K10061 GE Oven Burner and Pilot Assembly
263	WB19K10028 GE Oven Pilot
264	GEN WB28K10172
711	KNOB THERMOSTAT ASM
712	WB1K37 GE Oven Screw
