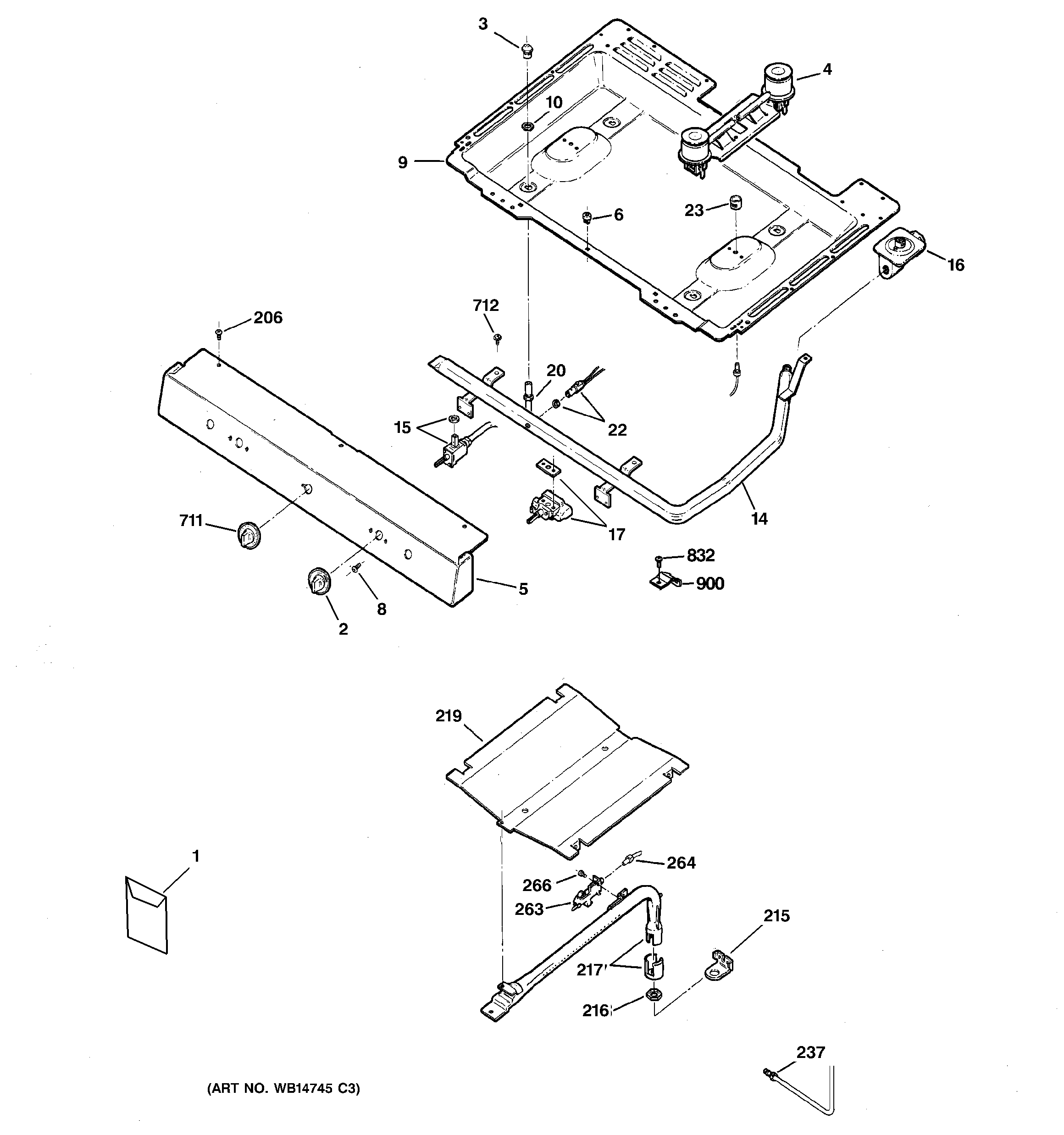

RGB523PPH6WH GAS & BURNER PARTS

Products

PositionProduct
1WB28K10593 GE Oven Conversion Kit Assembly
1GEN 49-85053
1GEN WB01K0055
1GEN 31-21238
1GEN 31-21402
2WB03K10035 GE Oven Top Burner Knob
3WB28K10376 GE Oven Orifice
3WB28K10033 GE Oven Orifice Spud
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10760
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
14GEN WB28K10580
15ROUND VALVE BURNER
16GEN WB21X0516
17GEN WB20K10034
17WB19K10025 GE Oven Thermocouple
20GEN WB28K10179
20GEN WB28K10181
20GEN WB28K10180
20GEN WB28K10178
22GEN WB19K10050
23GEN WB02K0021
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10066
219OVEN DEFLECTOR
237GEN WB28K10182
263WB19K10028 GE Oven Pilot
263WB16K10061 GE Oven Burner and Pilot Assembly
264GEN WB28K10172
711KNOB THERMOSTAT ASM
712WB1K37 GE Oven Screw
832WB01K10097 GE Range Thermostat Screw
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10263 GE Oven Round Valve Bracket
900WB02K10264 GE Thermostat Bracket
