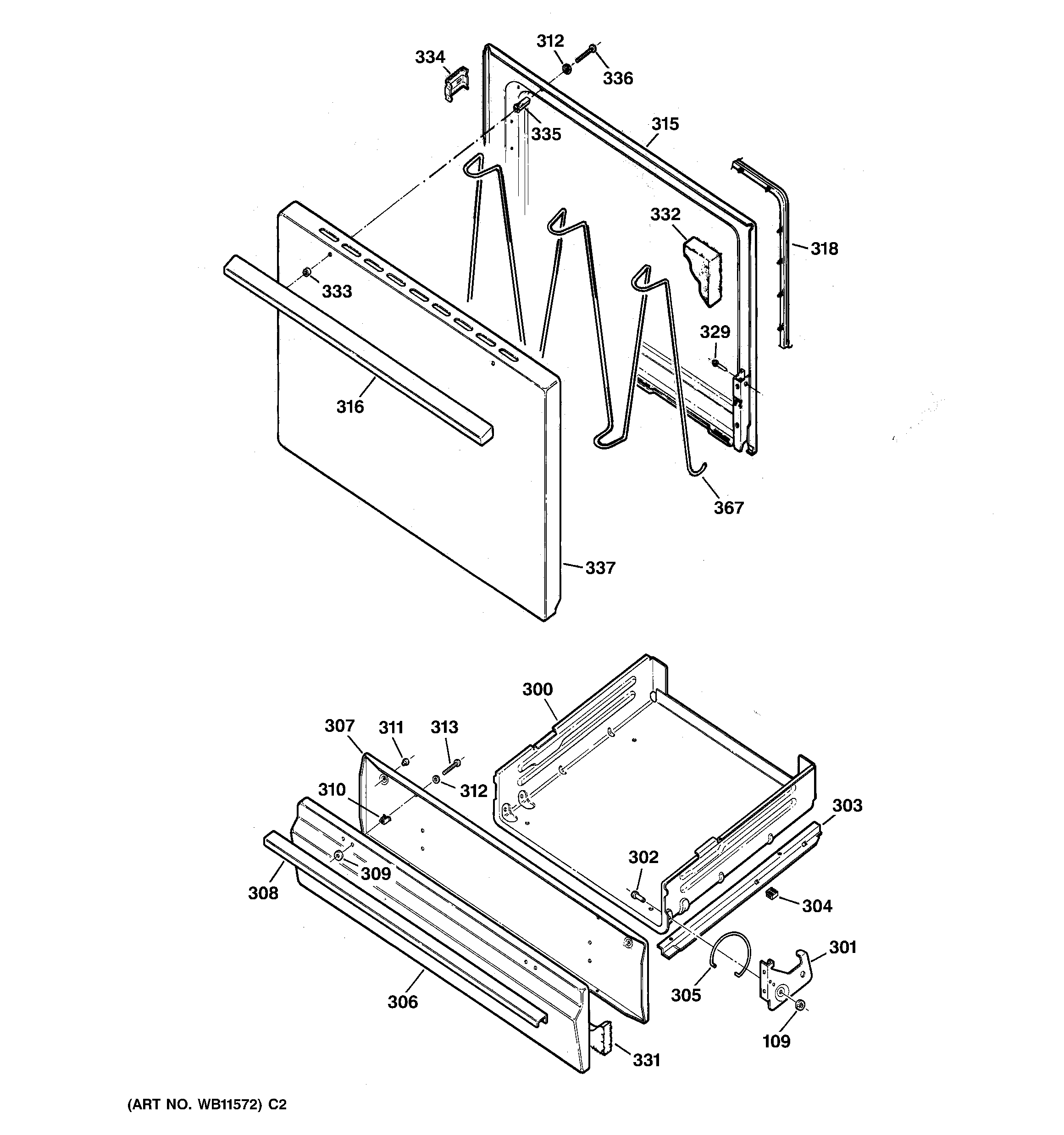

RGB524PEA4WH DOOR & DRAWER PARTS

RGB524PEA4WH DOOR & DRAWER PARTS

Written by

in

RGB524PEA4WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306GEN WB39K10015
307GEN WB39K10016
308GEN WB15K10031
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K0002
316WB15K1 GE Oven Broil Handle
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0004
333WB1K10 GE Oven Grommet Handle
334GEN WB02K0013
335GEN WB02K0002
337GEN WB56K0002
367GEN WB33K0001
