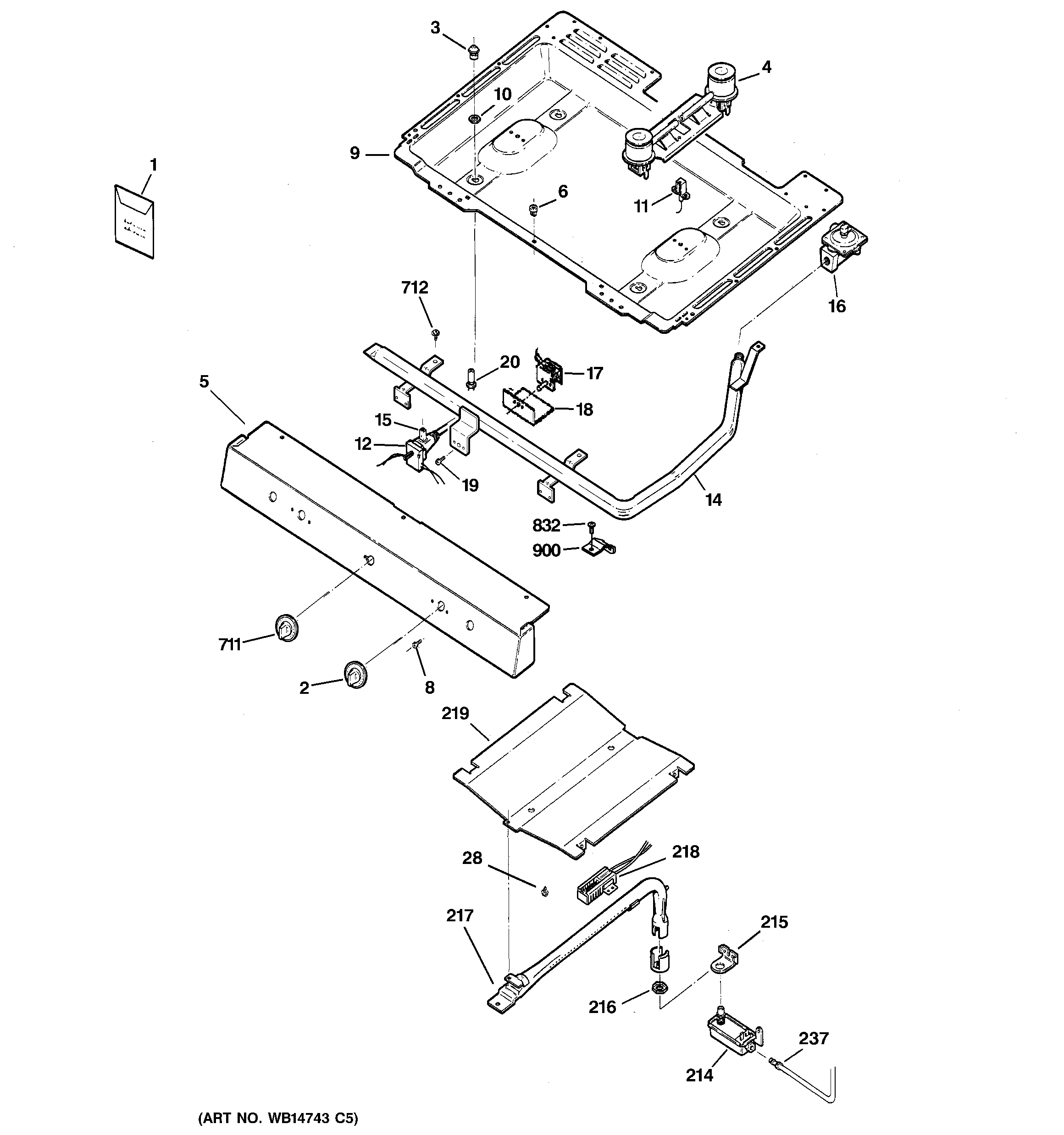

RGB524PPH7CT GAS & BURNER PARTS

RGB524PPH7CT GAS & BURNER PARTS

Written by

in

RGB524PPH7CT GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21460
1GEN 31-21442
1GEN 49-85154
2WB03K10035 GE Oven Top Burner Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10760
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
14GEN WB28K10580
15ROUND VALVE BURNER
16WB19K10054 GE Oven Pressure Regulator
17WB20K10033 GE Oven Modulating Thermostat
17WB19K10025 GE Oven Thermocouple
20WB28K10009 GE Oven Burner Tube
20WB28K10011 GE Oven Rear Burner Tube
20WB28K10012 GE Oven Rear Burner Tube
20WB28K10010 GE Oven Front Tube Assembly
28WB1X1293 GE Oven Screw
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10066
219OVEN DEFLECTOR
237WB28K10171 GE Oven Supply Tube Valve
711KNOB THERMOSTAT ASM
712WB1K37 GE Oven Screw
832WB01K10097 GE Range Thermostat Screw
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10264 GE Thermostat Bracket
900WB02K10263 GE Oven Round Valve Bracket
