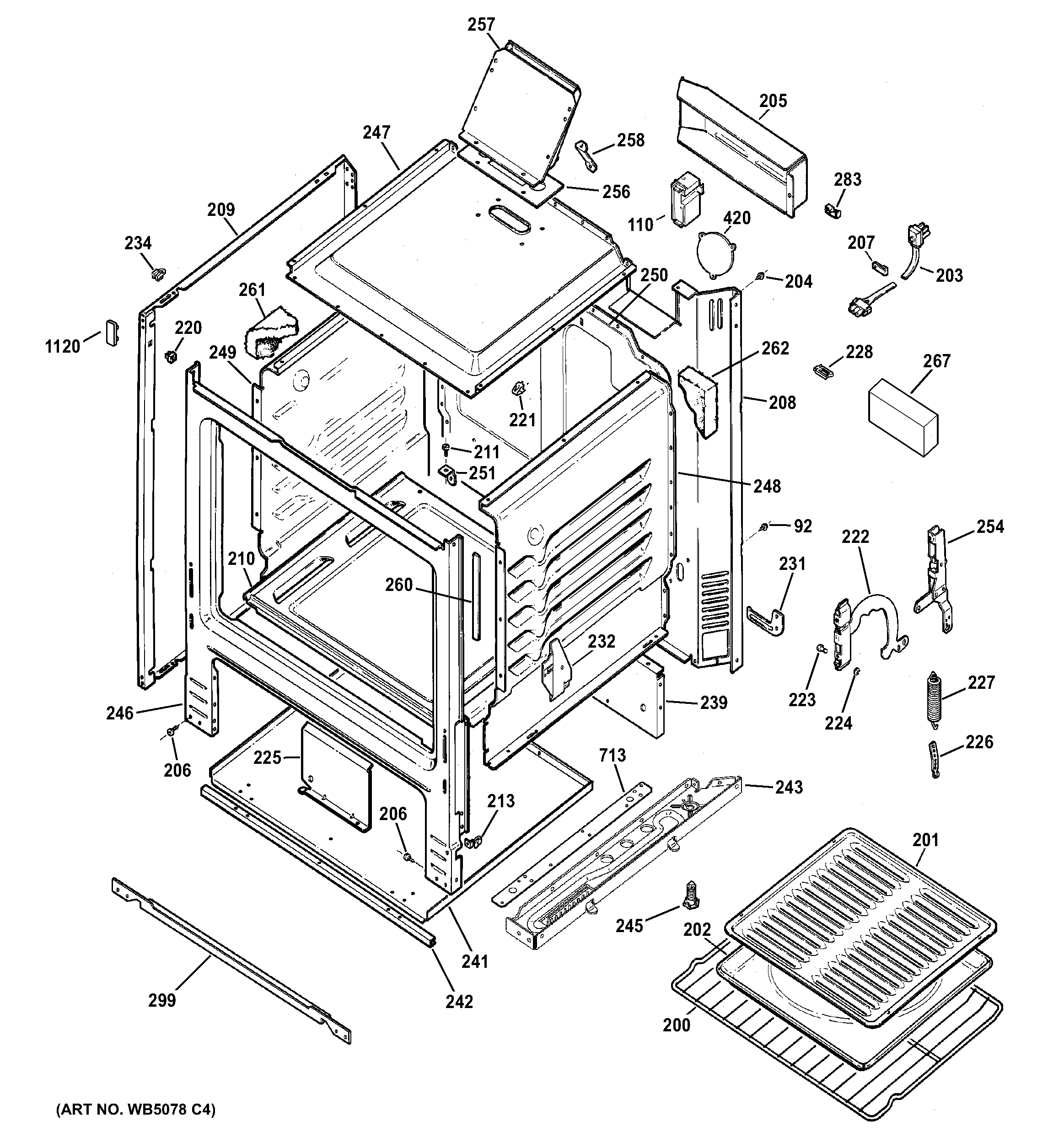

RGB525DED1WW BODY PARTS

RGB525DED1WW BODY PARTS

Written by

in

RGB525DED1WW BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
110WB13X24321 GE Oven Ignition Module
110WB13X42446 GE Spark Module Replacement Kit
200OVEN RACK
201WB48X10056 GE Broil Pan Set, Large Porcelain
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K0021
206WB01T10016 GE Oven Screw 8-18 AB Hex
207WB2K36 GE Oven Clamp Cable
208WB63K20 GE Ran Back
208WB63K21 GE Back
209WB63K10119 GE Oven Side Panel, Black
209WB63K10122 GE Oven Side Panel
210GEN WB35K10042
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0001
227GEN WB09K10004
228GEN WB02X7066
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
232GEN WB34K0003
232GEN WB34K0004
234GEN WB02K0066
239WB63K10030 GE Rear Broil Panel
239GEN WB63K0001
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243GEN WB63K10230
243WB63K10231 GE Base Support
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10272
246GEN WB63K10121
247WB53K10002 GE Oven Top
248WB53K10034 GE Oven Right Side
248GEN WB53K0002
249WB53K10035 GE Oven Left Side
249GEN WB53K0003
250WB53K10016 GE Oven Back
250GEN WB53K0021
251WB2K3 GE Angle Support
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
254GEN WB01K0053
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
260WB32K2 GE Oven Gasket Seal
261WB35K10155 GE Oven Insulation Wrap
261GEN WB35K0001
262WB35K16 GE Oven Back Insulation
262WB35K10162 GE Oven Back Insulation
267GEN WB06K10002
283WB02X21679 GE Oven Wire Clip
299WB1K43 GE Oven Support Bracket
420GEN WB34K0016
713WB39K33 GE Support
1120WB02K10178 GE Oven Bumper
1120WB02K10179 GE Range Bumper
