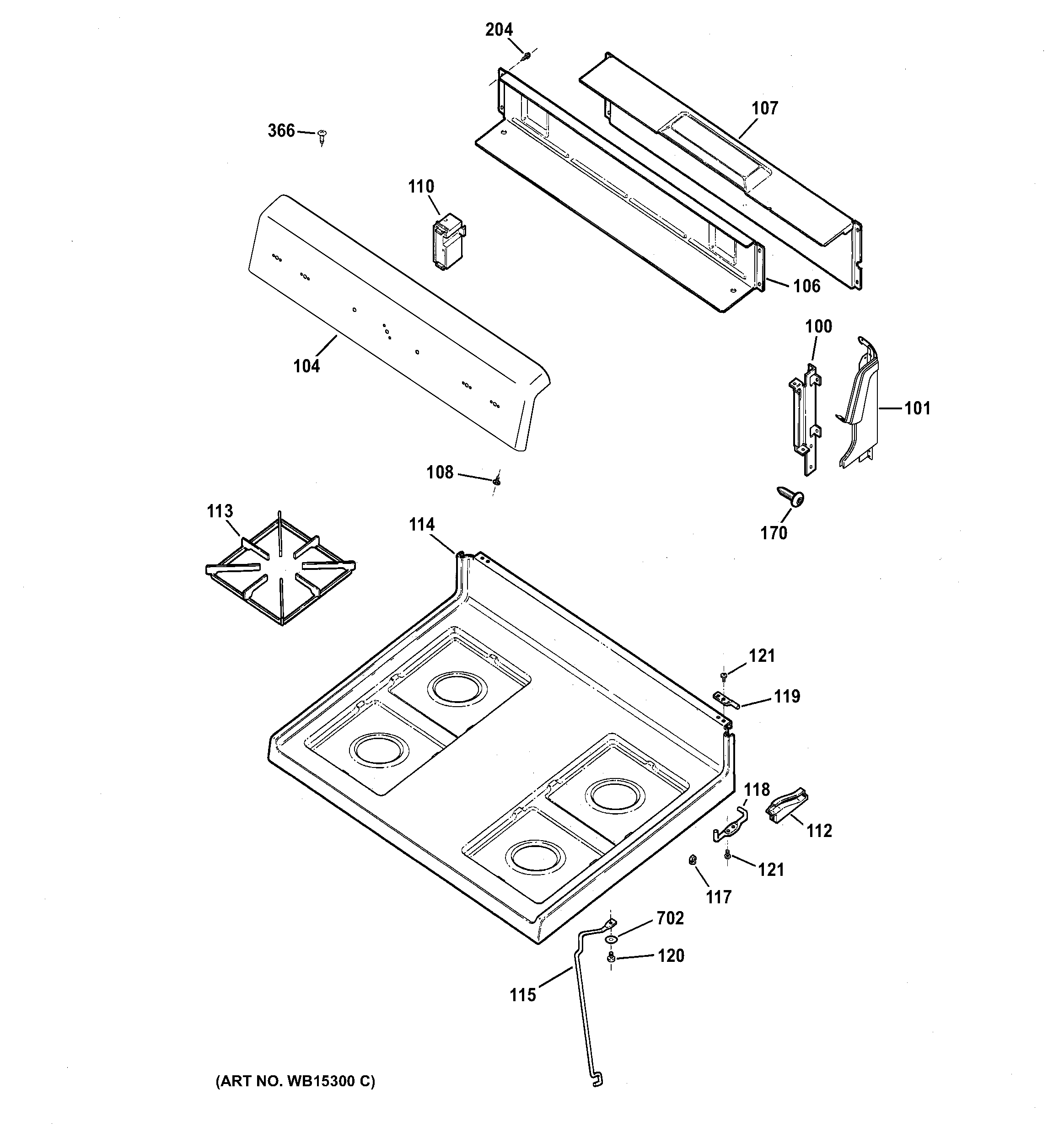

RGB525DED1WW CONTROL PANEL & COOKTOP

RGB525DED1WW CONTROL PANEL & COOKTOP

Written by

in

RGB525DED1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB07K10195 GE Oven Right White End Support
100GEN WB07K10260
100WB07K10196 GE Oven Left End Support (White)
100GEN WB07K10261
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
101GEN WB07K0139
104GEN WB36K10782
104GEN WB36K10941
106GEN WB34K10093
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
107GEN WB34K10094
110WB13X24321 GE Oven Ignition Module
110WB13X42446 GE Spark Module Replacement Kit
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10033 GE Oven Burner Grate
113GEN WB31K10043
114COOKTOP BK
114WB62K10003 GE Oven Cooktop Assembly (White)
115WB2K91 GE Oven Top Support
115GEN WB06K0008
117GEN WB02K0017
117WB14K10004 GE Oven Pin Locator
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
170GEN WB01X5874
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
366WB1X536 GE Oven Screw
