RGB525DED1WW DOOR & DRAWER PARTS

RGB525DED1WW DOOR & DRAWER PARTS

Written by

in

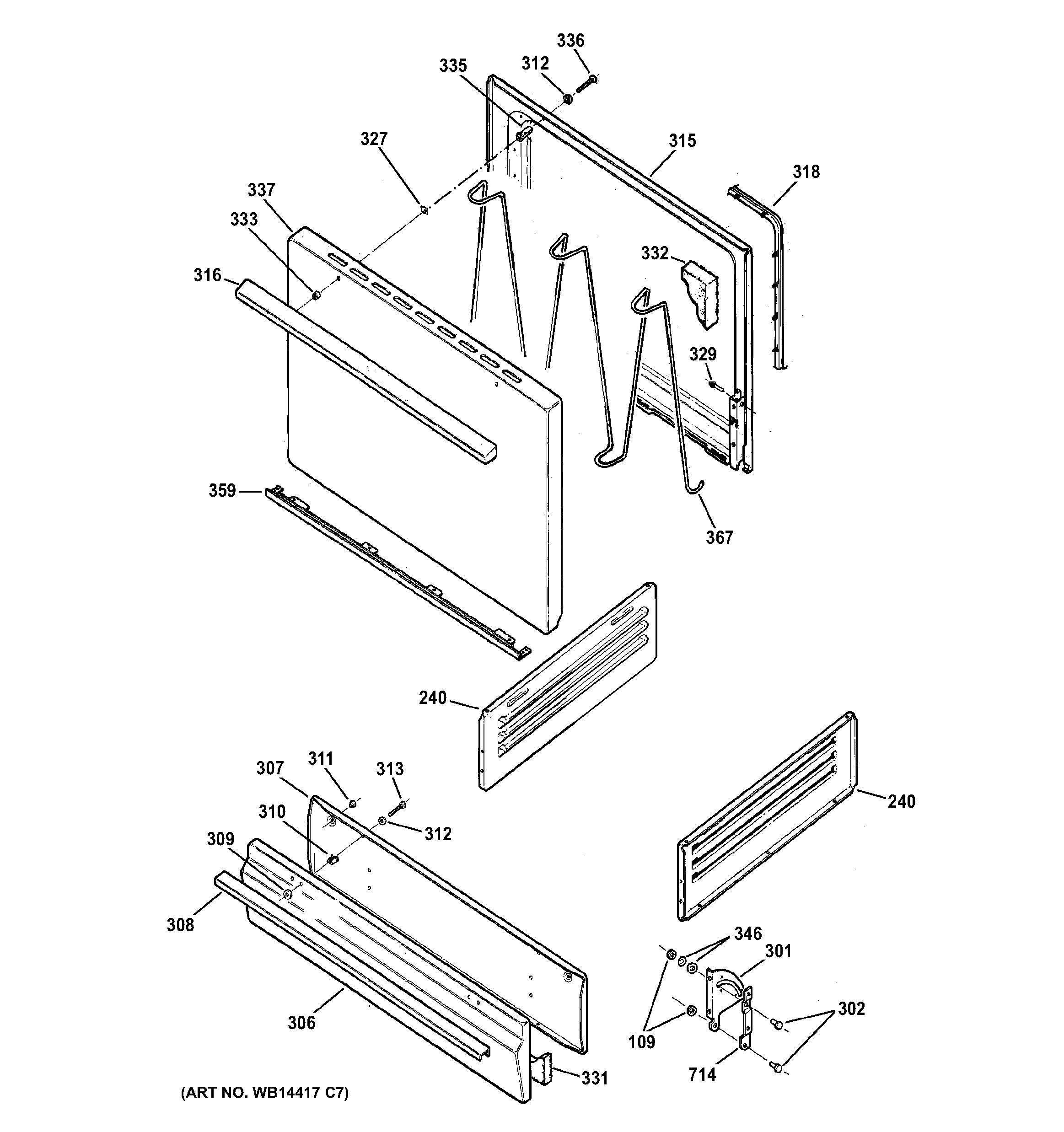

RGB525DED1WW DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
240WB63X26890 GE Oven Broiler Panel
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
301GEN WB10K0010
301GEN WB10K0011
302WB01K10035 GE Oven Broiler Pin
302WB1K7 GE Oven Broiler Pin
302WB01K10036 GE Washer Spring Washer
306WB39K10023 GE Oven Panel Drawer Assembly Stainless Steel
306WB39K10 GE Oven Drawer Panel Black
306WB56X21199 GE Oven Drawer Panel
307WB39K10042 GE Oven Drawer Liner
307WB39K10028 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
308WB15K10008 GE Oven Broil Handle
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K10037
315GEN WB55K10045
316GEN WB15K0017
318WB35X29720 GE Oven Door Gasket
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
332INSULATION DOOR
333WB01K10117 GE Oven Handle Grommet
335WB02K10156 GE Oven Spacer
336WB1K63 GE Oven Screw
336SCR 10-16 X 2 3/4
337WB56K10045 GE Oven Door Panel
346GEN WB01K0038
359GEN WB07K10342
367GEN WB33K0001
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
