RGB525DED1WW GAS & BURNER PARTS

RGB525DED1WW GAS & BURNER PARTS

Written by

in

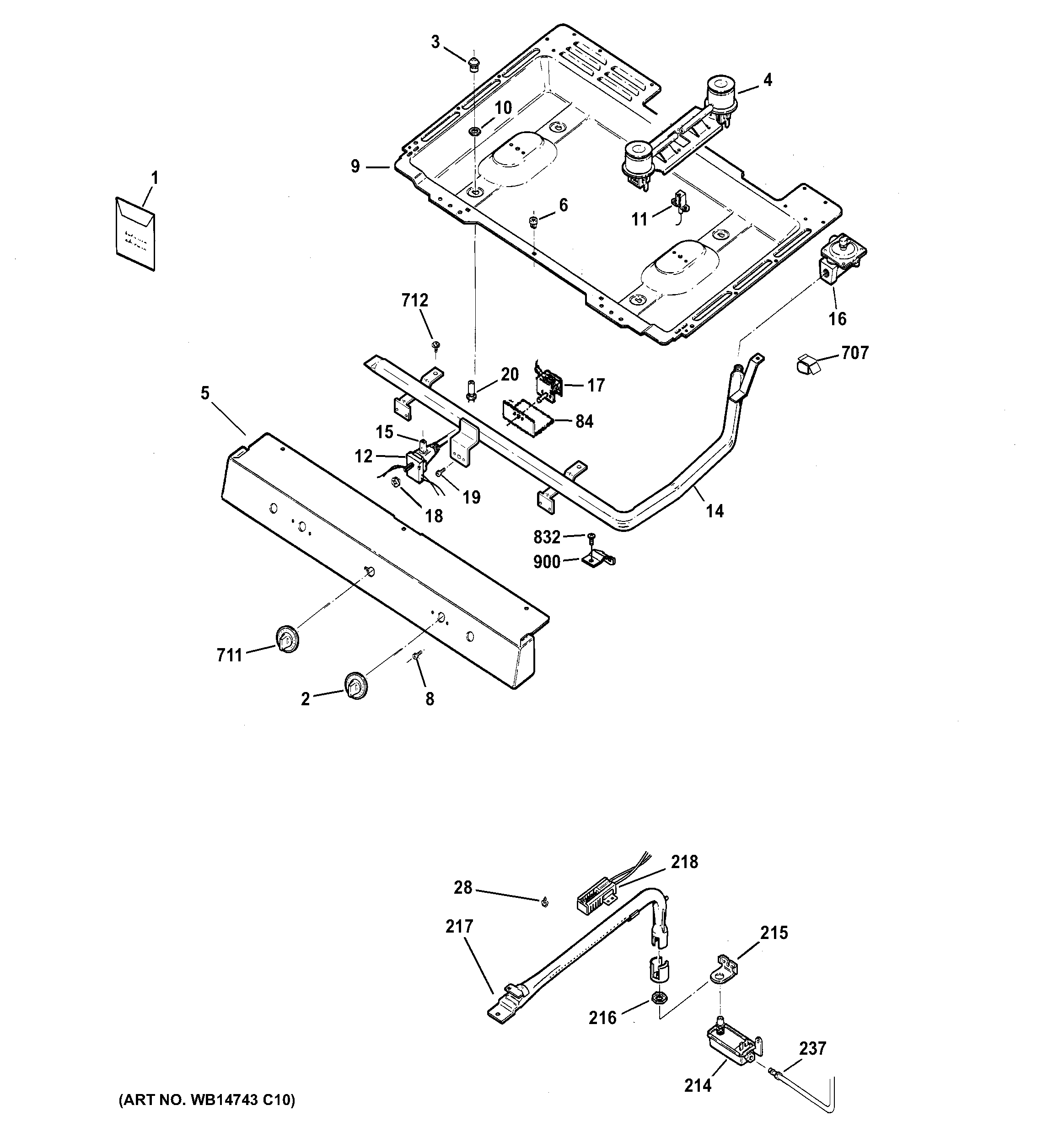

RGB525DED1WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21458
1GEN 31-21464
2WB03K10216 GE Oven Manifold Knob
2WB03K10034 GE Oven Burner Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10030 GE Oven Natural Gas Orifice
3ORIFICE-NG MED 1.50MM
3WB28K10029 GE Oven Natural Gas Orifice
3WB28K10376 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K11038
5GEN WB36K10720
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
10WB02K10360 GE Oven Circuit Bracket Small
11WB18X26987 GE Oven Spark Electrode Top
11WB02K10361 GE Oven Orifice Holder
11WB18X26988 GE Oven Top Spark Electrode
12WB24K10065 GE Oven Burner Box Harness
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10037
14WB28K10457 GE Oven Manifold Pipe
14WB28K10579 GE Oven Round Manifold Pipe
15GEN WB28K10400
15GEN WB28K10399
15ROUND VALVE BURNER
15GEN WB28K10398
16PRESSURE REGULATOR
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20WB28K10009 GE Oven Burner Tube
20WB28K10011 GE Oven Rear Burner Tube
20WB28K10012 GE Oven Rear Burner Tube
20REAR ORIFICE HOLDER RG
20WB28K10010 GE Oven Front Tube Assembly
20REAR ORIFICE HOLDER LF
28WB1X1293 GE Oven Screw
84COVER THERMOSTAT
214KIT VALVE & REGULATOR LP
214WB19K31 GE Gas Range Oven Cooktop Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
237GEN WB28K10109
237WB28K147 GE Oven Tube Valve Supply
707WB02K10267 GE Wire Clip
711THERMOSTAT KNOB – WHITE
712WB1K37 GE Oven Screw
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
900WB02K10263 GE Oven Round Valve Bracket
