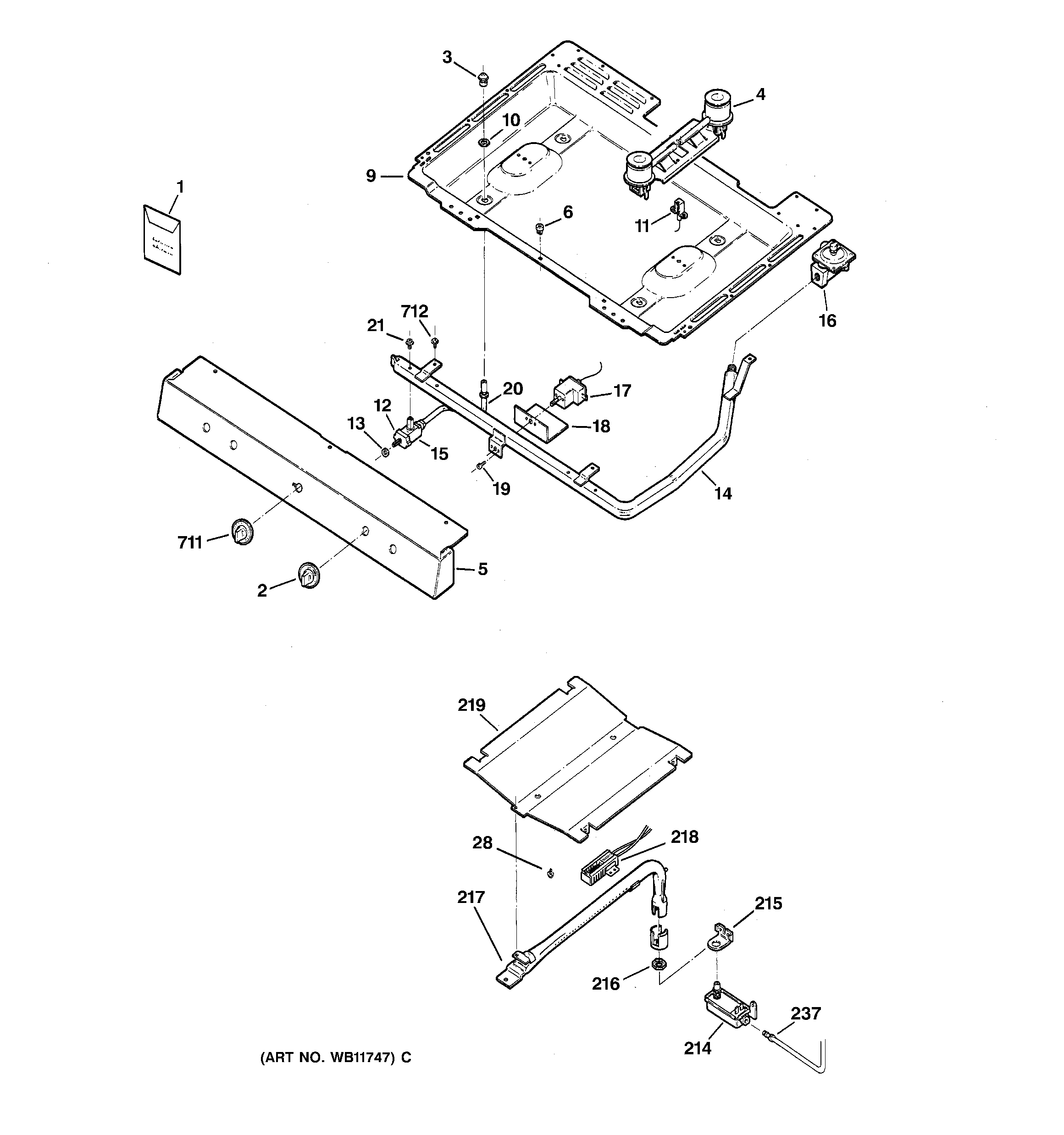

RGB525ET4WW GAS & BURNER PARTS

RGB525ET4WW GAS & BURNER PARTS

Written by

in

RGB525ET4WW GAS & BURNER PARTS

Products

PositionProduct
1USE & CARE MANUAL
1GEN 31-20157
1WB2K20 GE Oven Bracket Assembly
2GEN WB03K0189
3ORIFICE NATURAL GAS
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5PANEL MANIFOLD (WH)
6GEN WB02K0009
9GEN WB64K0004
10GEN WB01K0004
11WB18X26988 GE Oven Top Spark Electrode
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0062
15WB21K12 GE Oven Burner Control Valve
16PRESSURE REGULATOR
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K0048
20GEN WB28K0031
20GEN WB28K0047
20GEN WB28K0032
21WB1K83 GE Oven Screw
28WB1X1293 GE Oven Screw
214WB19K31 GE Gas Range Oven Cooktop Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28K147 GE Oven Tube Valve Supply
711THERMOSTAT KNOB (WH)
712WB1K37 GE Oven Screw
752WZ4X345D GE Screw Package 12 C92
