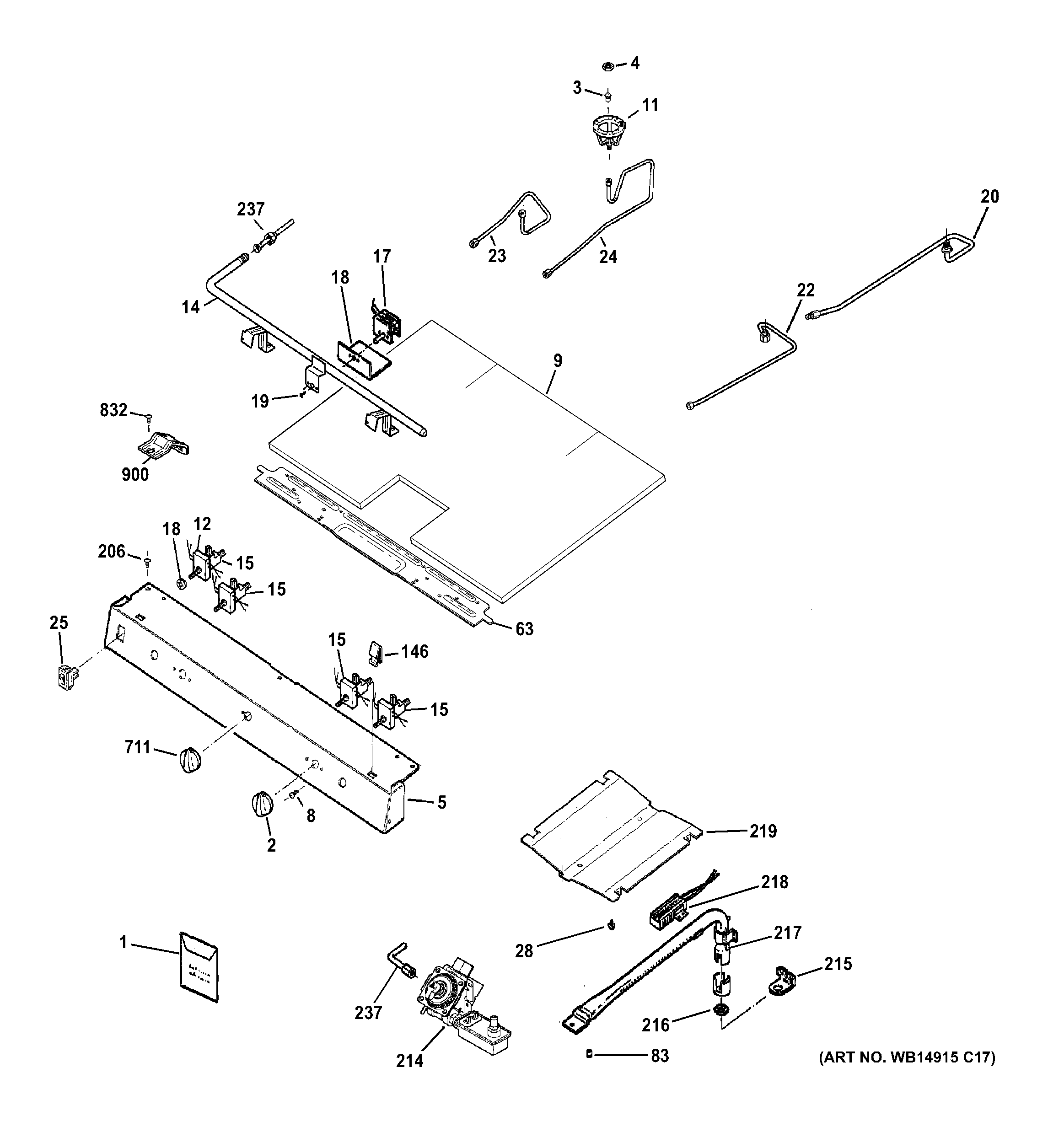

RGB526DET3WW GAS & BURNER PARTS

RGB526DET3WW GAS & BURNER PARTS

Written by

in

RGB526DET3WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-10933
1GEN 31-10938
1GEN 31-14995
1GEN 49-85209
1WB49X21392 GE Oven Hinge Service Kit
2WB03K10034 GE Oven Burner Knob
3WB28X21079 GE Oven Spud Orifice
4WB01K10037 GE Oven Economic Nut
5WB36K10765 GE Oven Manifold Panel
8WB01K10002 GE Oven Screw 8-32
9GEN WB35K10189
11WB02K10361 GE Oven Orifice Holder
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10038
14WB28K10427 GE Oven Manifold Pipe
15VALVE BURNER 270
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10191
22GEN WB28K10192
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
25WB24K5022 GE Oven Rocker Switch
28WB1X1293 GE Oven Screw
63WB34X20680 GE Support Manifold
83WB28K10023 GE Oven Orifice
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB21X20806 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237TUBE MANIFOLD SUPPLY ASSEMBLY
711THERMOSTAT KNOB – WHITE
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
