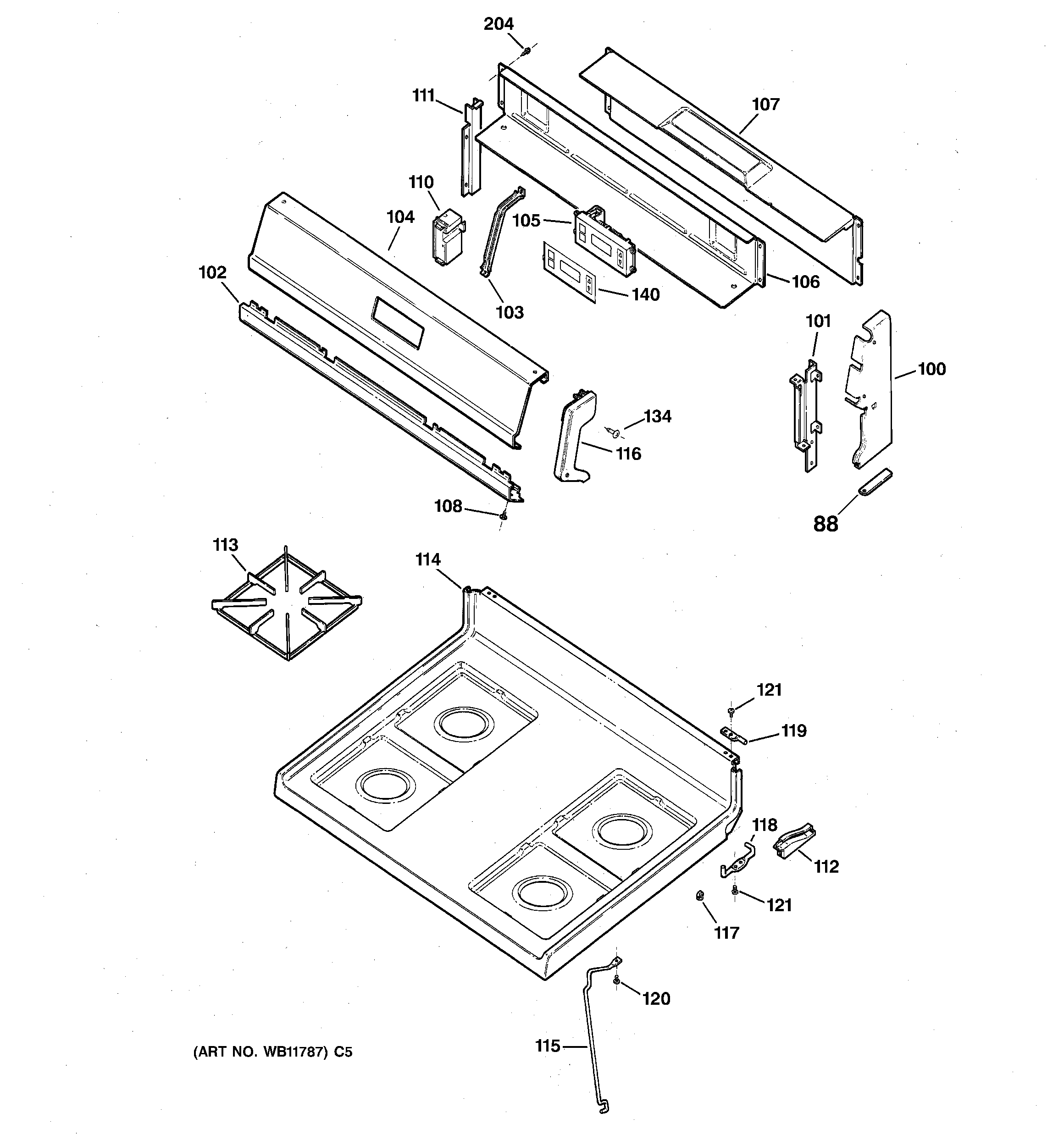

RGB526PEA4CT CONTROL PANEL & COOKTOP

RGB526PEA4CT CONTROL PANEL & COOKTOP

Written by

in

RGB526PEA4CT CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10169
100GEN WB07K10168
101GEN WB37K0014
101GEN WB37K0015
102GEN WB07K0005
103GEN WB02K0063
104GEN WB36K10123
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
110WB20K5037 GE Oven Spark Module
111GEN WB34K0005
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10012 GE Oven 8-Finger Burner Grate
114GEN WB62K10062
115GEN WB06K0008
116GEN WB07K0341
116GEN WB07K0340
117GEN WB02K0017
118WB14K3 GE Oven Right Side Glide
118WB14K4 GE Left Slide Glider
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
134GEN WB01K0075
140GEN WB11K0055
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
