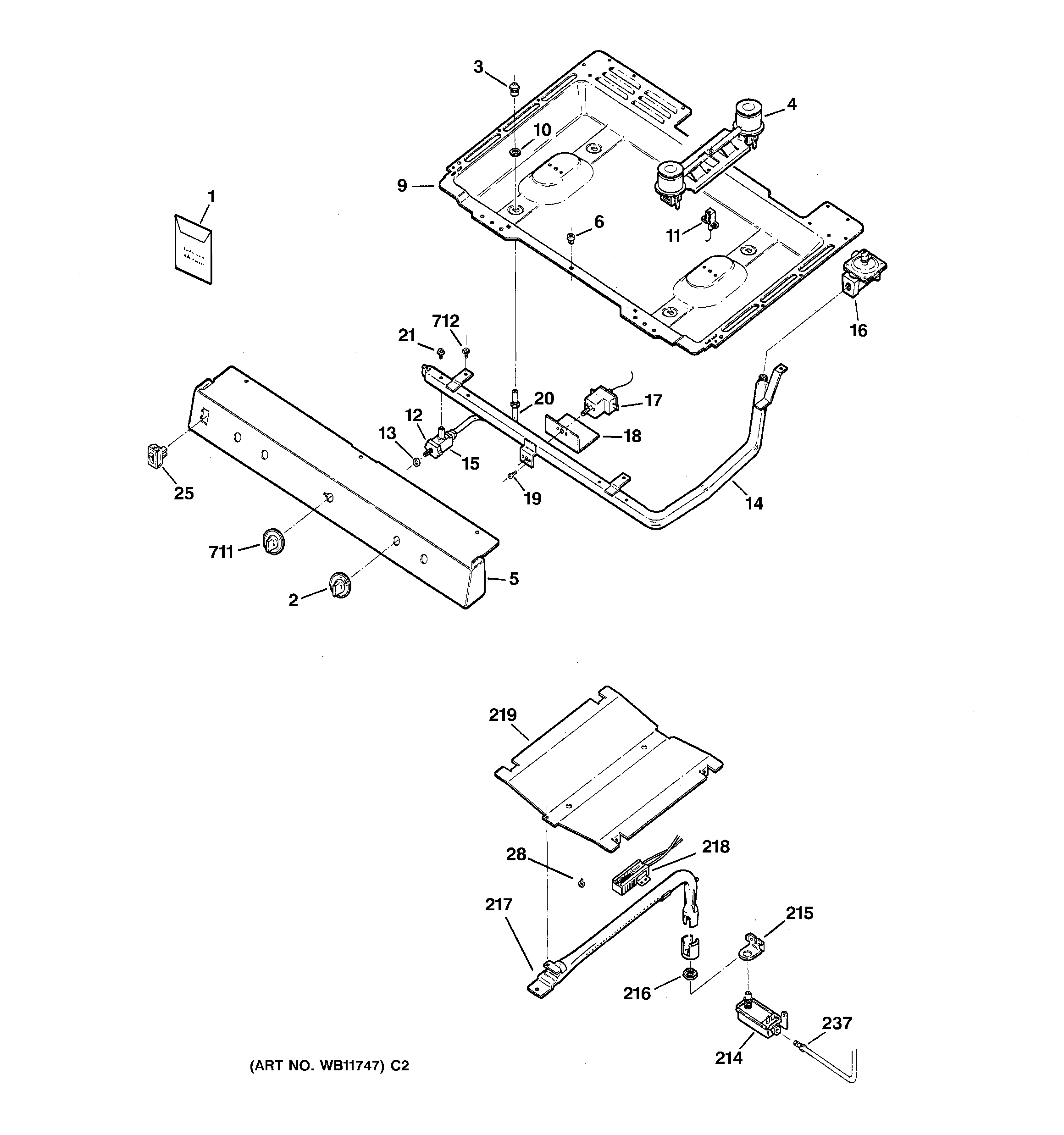

RGB528ET4WW GAS & BURNER PARTS

Products

Position	Product
1	USE & CARE MANUAL
1	WB2K20 GE Oven Bracket Assembly
1	GEN 31-20159
2	GEN WB03K0189
3	WB28K10376 GE Oven Orifice
3	ORIFICE NATURAL GAS
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB36K0080
6	GEN WB02K0009
9	GEN WB64K0004
10	GEN WB01K0004
11	WB18X26988 GE Oven Top Spark Electrode
12	GEN WB24K0014
13	WB2K24 GE Oven Valve Cover
14	GEN WB28K0062
15	WB21K12 GE Oven Burner Control Valve
16	PRESSURE REGULATOR
17	WB20K8 GE Oven Thermostat Temperature Control
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K0032
20	GEN WB28K0047
20	GEN WB28K0048
20	GEN WB28K0031
21	WB1K83 GE Oven Screw
25	WB24K5022 GE Oven Rocker Switch
28	WB1X1293 GE Oven Screw
103	GEN WB37K0009
143	SCREW MTG END CAP
144	GEN WB02K0046
214	WB19K31 GE Gas Range Oven Cooktop Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	WB28K147 GE Oven Tube Valve Supply
711	THERMOSTAT KNOB (WH)
712	WB1K37 GE Oven Screw
