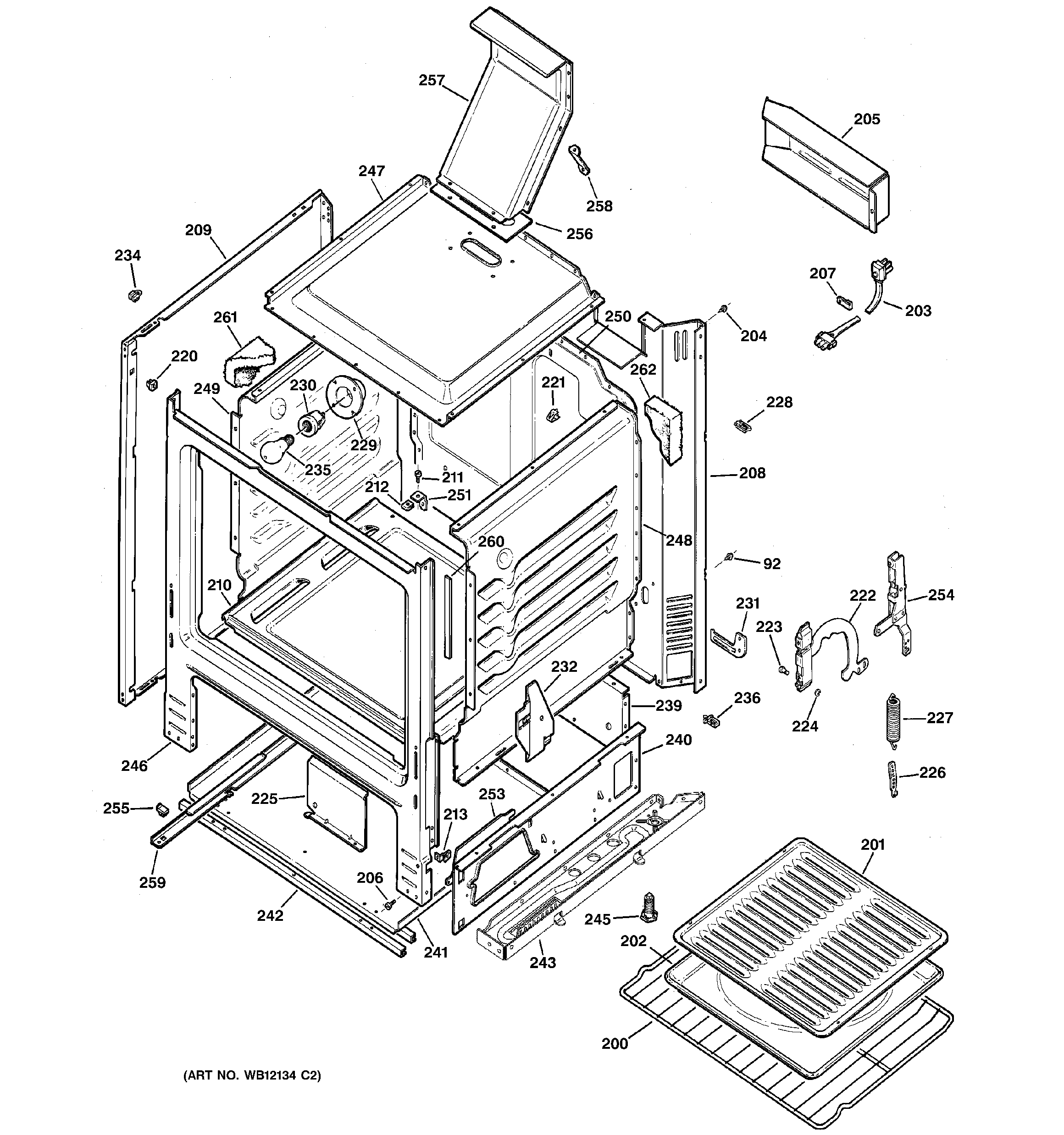

RGB528PEH2WW BODY PARTS

RGB528PEH2WW BODY PARTS

Written by

in

RGB528PEH2WW BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
203WB18K10036 GE Oven Line Cord
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205GEN WB34K0021
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208WB63K20 GE Ran Back
209GEN WB63K0050
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0001
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB2K20 GE Oven Bracket Assembly
231GEN WB02K0012
232GEN WB34K0003
232GEN WB34K0004
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
239GEN WB63K0001
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K0031
247WB53K10002 GE Oven Top
248GEN WB53K0002
249GEN WB53K0003
250GEN WB53K0004
251WB2K3 GE Angle Support
253WB2K4 GE Cover Accessory Spring
254GEN WB10K0014
254GEN WB10K0013
254GEN WB01K0053
255WB2K5 GE Oven Broiler Stop
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259GEN WB39K0001
259GEN WB39K0002
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0001
262WB35K16 GE Oven Back Insulation
