RGB530BEA2WH GAS & BURNER PARTS

RGB530BEA2WH GAS & BURNER PARTS

Written by

in

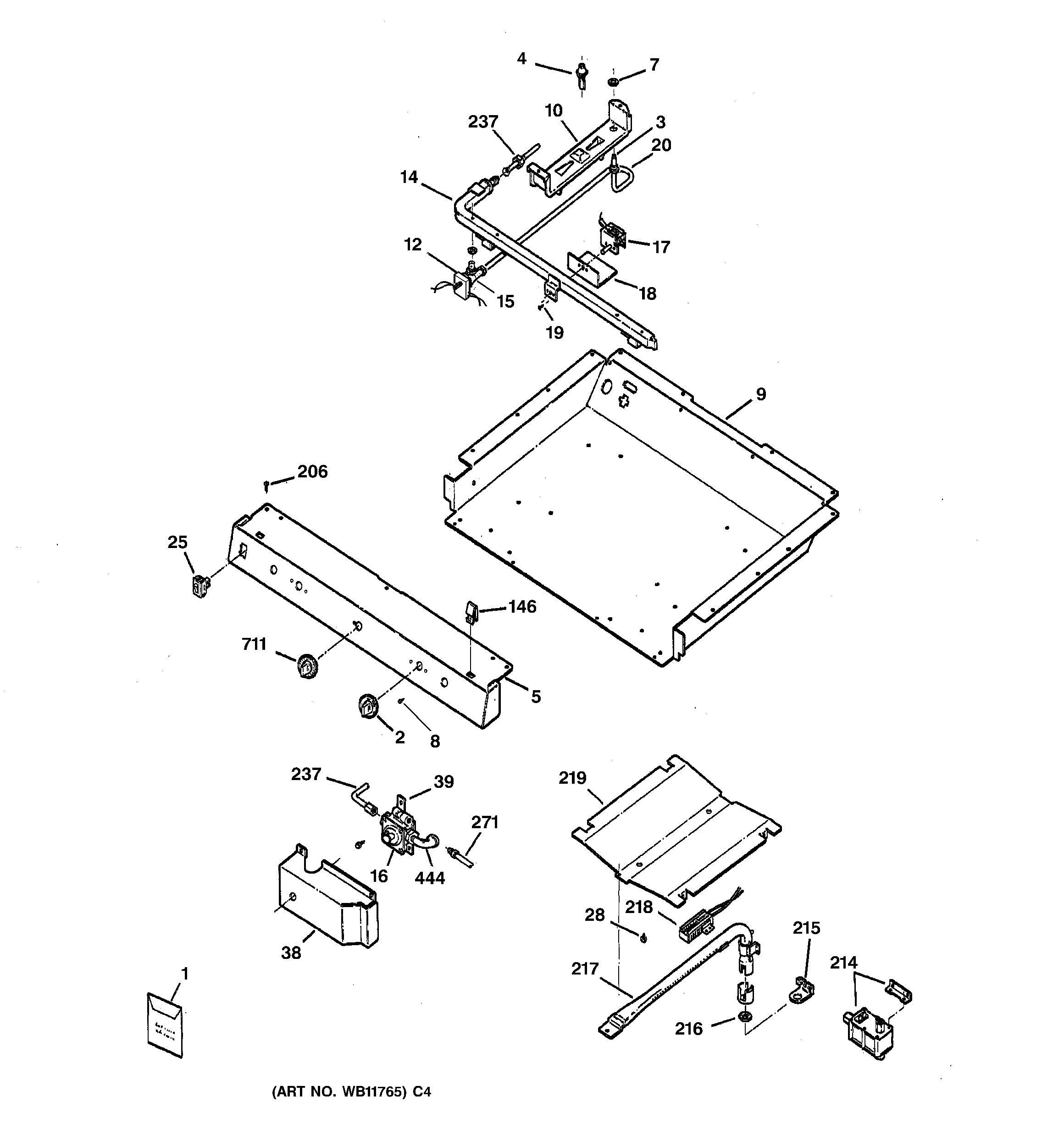

RGB530BEA2WH GAS & BURNER PARTS

Products

PositionProduct
1CONVERSION KIT (VISION)
1GEN 31-20623
1WB2K20 GE Oven Bracket Assembly
1USE & CARE MANUAL
2GEN WB36K10126
3GEN WB28K0142
3ORIF. SPUD (LP) MED.
4GEN WB16K0013
5GEN WB36K10122
7GEN WB01K0004
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10GEN WB02K0099
12GEN WB24K10002
14GEN WB28K10053
15WB21K38 GE Oven Burner Valve
16GEN WB19K0028
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10050
20GEN WB28K10052
20GEN WB28K10065
20GEN WB28K10066
25GEN WB24K0003
28WB1X1293 GE Oven Screw
38GEN WB34K0029
39GEN WB02K0088
146GEN WB02K0052
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
203WB18K10036 GE Oven Line Cord
205GEN WB34K0021
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208WB63K21 GE Back
209GEN WB63K0050
210GEN WB53K0035
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
214WB19K31 GE Gas Range Oven Cooktop Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0004
228GEN WB02X7066
229GEN WB08K0001
230GEN WB08K0002
231GEN WB02K0012
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
237GEN WB28K0148
239GEN WB63K0025
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241RANGE BOTTOM
242GEN WB63K0005
243GEN WB63K0006
243GEN WB63K0007
244GEN WB02K0001
245GEN WB02X7701
246GEN WB63K0031
247WB53K10002 GE Oven Top
248GEN WB53K0002
249GEN WB53K0003
250GEN WB53K0004
251WB2K3 GE Angle Support
253WB2K4 GE Cover Accessory Spring
254GEN WB01K0053
254GEN WB10K0013
254GEN WB10K0014
255WB2K5 GE Oven Broiler Stop
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259GEN WB39K0001
259GEN WB39K0002
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0001
262WB35K16 GE Oven Back Insulation
271GEN WB28K0149
444GEN WB28K0061
711GEN WB03K10048
