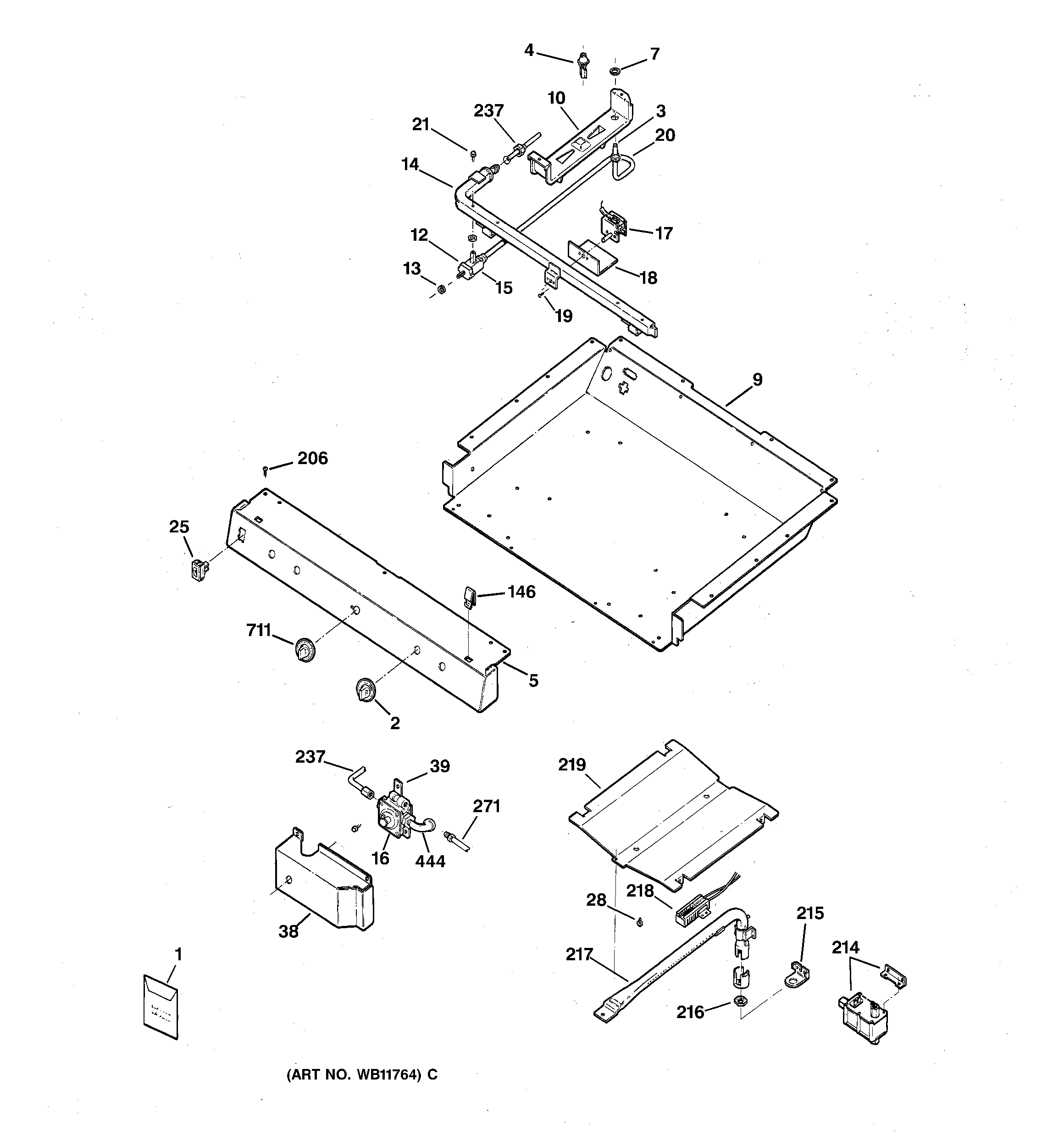

RGB530BEW2AD GAS & BURNER PARTS

Products

Position	Product
1	USE & CARE MANUAL
1	WB2K20 GE Oven Bracket Assembly
1	GEN 31-20618
1	GEN 31-20127
2	GEN WB03K0191
3	GEN WB28K0142
3	ORIF. SPUD (LP) MED.
4	GEN WB16K0013
5	PANEL MANIFOLD SP
7	GEN WB01K0004
9	GEN WB63K0024
10	GEN WB02K0099
12	GEN WB24K0014
13	WB2K24 GE Oven Valve Cover
14	GEN WB28K0066
15	GEN WB21K0020
16	GEN WB19K0028
17	WB20K8 GE Oven Thermostat Temperature Control
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K0193
20	GEN WB28K0189
20	GEN WB28K0187
20	GEN WB28K0192
21	WB1K83 GE Oven Screw
25	GEN WB24K0003
28	WB1X1293 GE Oven Screw
38	GEN WB34K0029
39	GEN WB02K0088
146	GEN WB02K0052
151	CAP BURNER SMALL (BK)
153	CAP BURNER LG (BK)
155	BURNER HEAD-SM
157	BURNER HEAD-LG
206	WR01X10065 GE Screw
214	WB19K31 GE Gas Range Oven Cooktop Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	GEN WB28K0148
271	GEN WB28K0149
327	WB01K10093 GE Oven Speednut
333	WB1K10 GE Oven Grommet Handle
444	GEN WB28K0061
461	WB1X536 GE Oven Screw
711	GEN WB03K0060
