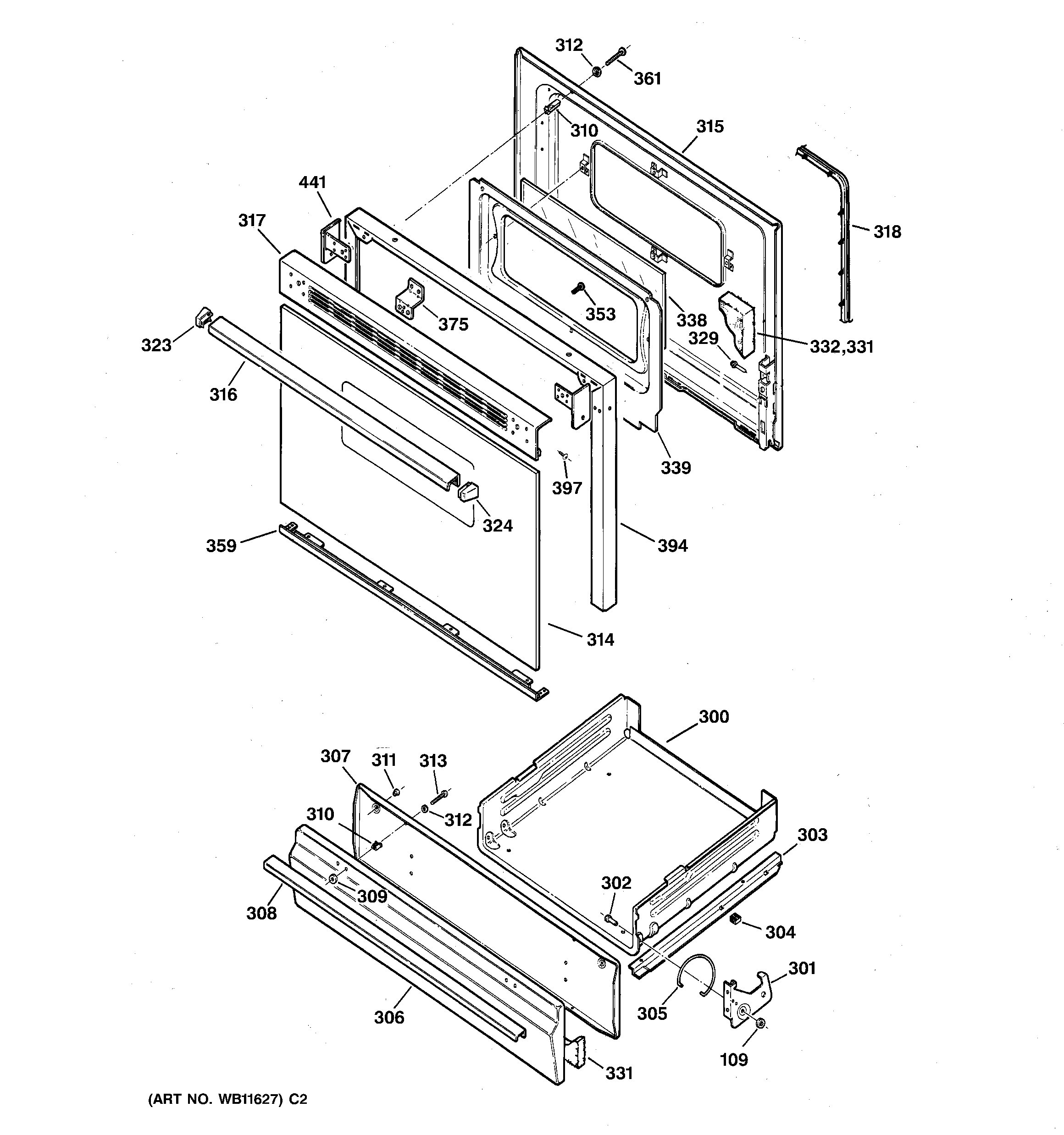

RGB530BEW3AD DOOR & DRAWER PARTS

RGB530BEW3AD DOOR & DRAWER PARTS

Written by

in

RGB530BEW3AD DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306UNKNOWN
307GEN WB39K0005
308GEN WB15K0015
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314GEN WB57K0002
314PAD
315GEN WB55K0006
316GEN WB15K0023
317GEN WB07K0239
318WB35X29720 GE Oven Door Gasket
323CAP HANDLE LEFT
324CAP HANDLE RIGHT
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0005
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
353WB1X5731D GE Oven Nut Package of 12
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1K63 GE Oven Screw
375GEN WB02K0067
394GEN WB07K0265
397WB1K62 GE Oven Door Assembly
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
