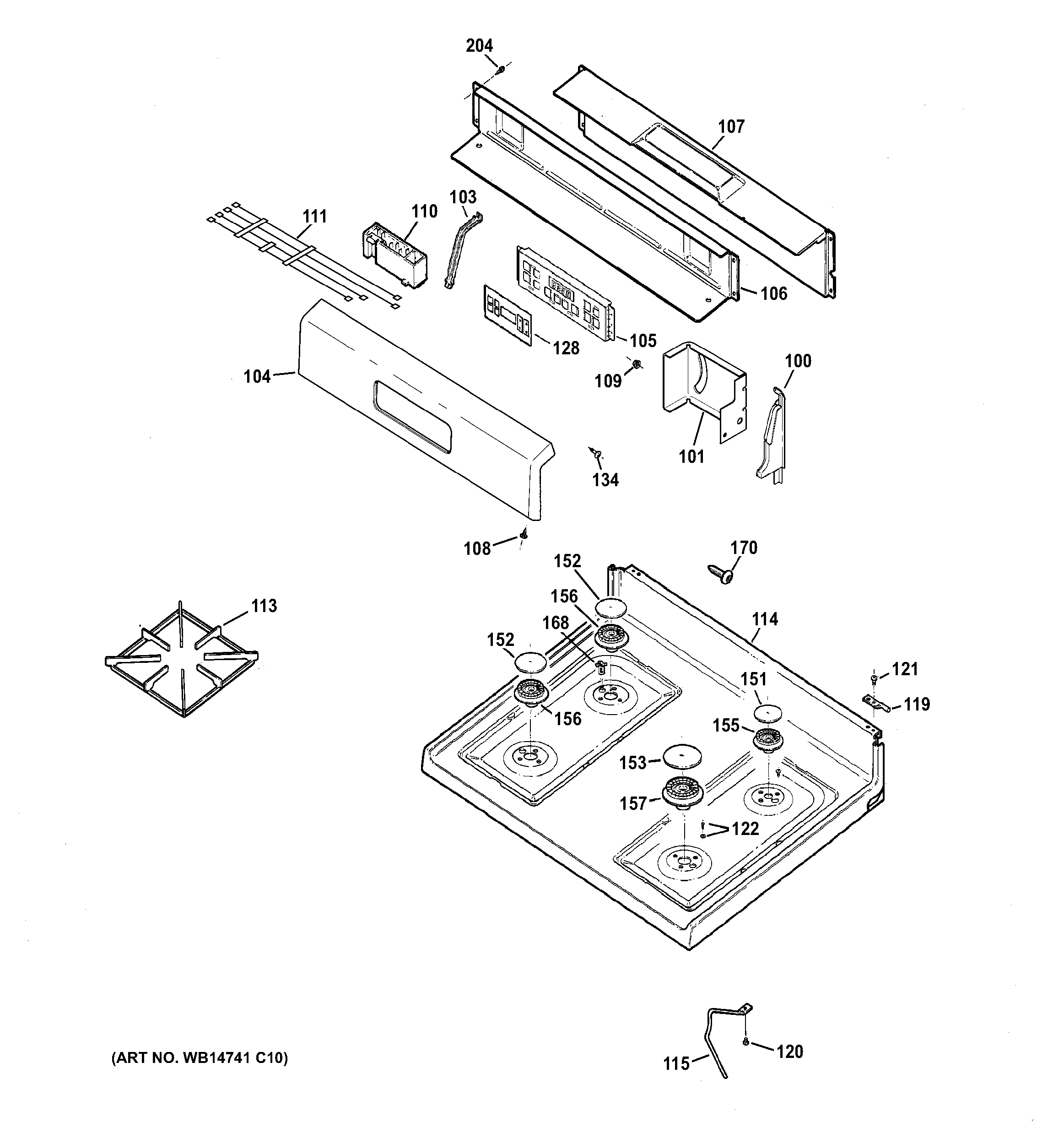

RGB530DEH1BB CONTROL PANEL & COOKTOP

Products

Position	Product
100	WB07K10194 GE Oven End Support Gloss Black
100	WB07K10193 GE Oven End Support Gloss Black
101	WB37K10004 GE Cooktop Left Bracket
101	WB37K10003 GE Cooktop Right Bracket
103	WB02K10074 GE Oven Control Bracket
104	WB36X22891 GE Control Trim
105	CONTROL OVEN TO9 (GAS)
106	WB34K10003 GE Upper Back Oven Cover
107	WB34K10001 GE Lower Back Cover
108	WB1X5364 GE Oven Mounting Screw
109	GEN WB01X5743
110	WB13K10029 GE Oven Spark Module
111	WB18K10098 GE Oven Igniter Switch and Harness Assembly
113	WB31K10015 GE Oven Black Grate
114	WB62X20225 GE Range Top Surface Burner
115	WB02K10276 GE Cooktop Support
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
122	WB01K10106 GE Oven Circuit Screw
128	WB07X22681 GE Range Black Control Panel
151	WB29K10009 GE Oven Burner Cap
152	WB29K10001 GE Oven Burner Cap
153	WB29K10006 GE Oven Burner Cap
155	WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156	WB16K10055 GE Oven Burner Base
157	BURNER 12K
168	WB01K10112 GE Range Oven Electrode Clip
170	GEN WB01X5716
204	WZ4X345D GE Screw Package 12 C92
