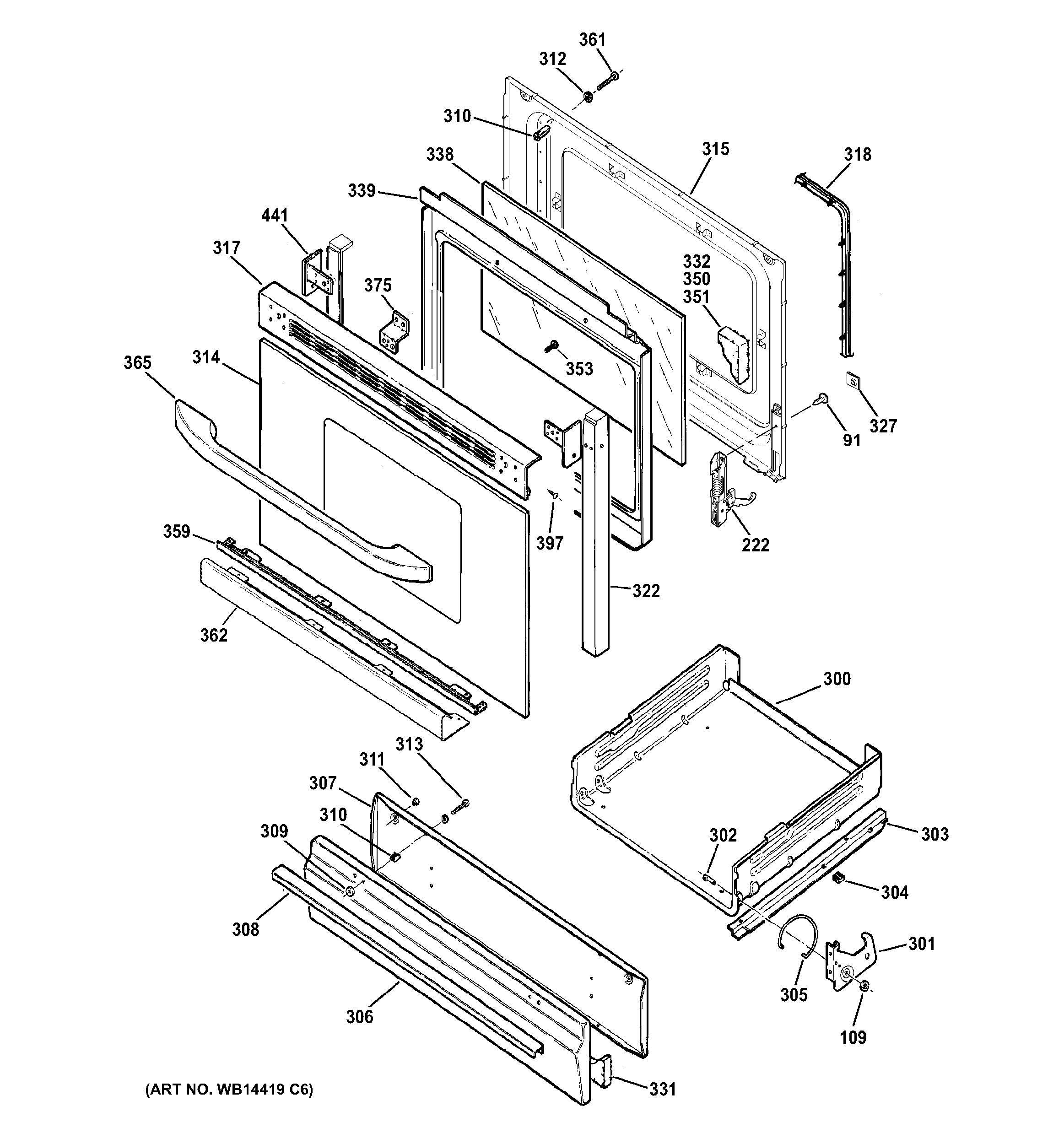

RGB530DEH1BB DOOR & DRAWER PARTS

RGB530DEH1BB DOOR & DRAWER PARTS

Written by

in

RGB530DEH1BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
109GEN WB01X5743
222WB10X21809 GE Oven Door Hinge
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10030 GE Oven Broiler Pan Slide
303WB39K10029 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB39K10 GE Oven Drawer Panel Black
307WB39K10041 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB57K4 GE Oven Black Glass Door
315WB56X20206 GE Range Door Panel
317WB07K10200 GE Oven Vent Trim Assembly
318WB35X29720 GE Oven Door Gasket
322WB07K10248 GE Oven Trim Post Left
322GEN WB07K10249
327WB01K10093 GE Oven Speednut
331GEN WB35K0003
332WB35K10146 GE Door Side Insulation
338WB56X20654 GE Oven Crystal Window
339WB56K10033 GE Oven Insulation Guard
350WB35K10147 GE Oven Bottom Insulation Door
351WB35K10148 GE Oven Door Top Insulation
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1K63 GE Oven Screw
362WB07X20288 GE Oven Barrier Door
365WB15K10102 GE Oven Handle
375WB02K10245 GE Oven Door Bracket
397WB1K62 GE Oven Door Assembly
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
