RGB530DEH1BB GAS & BURNER PARTS

RGB530DEH1BB GAS & BURNER PARTS

Written by

in

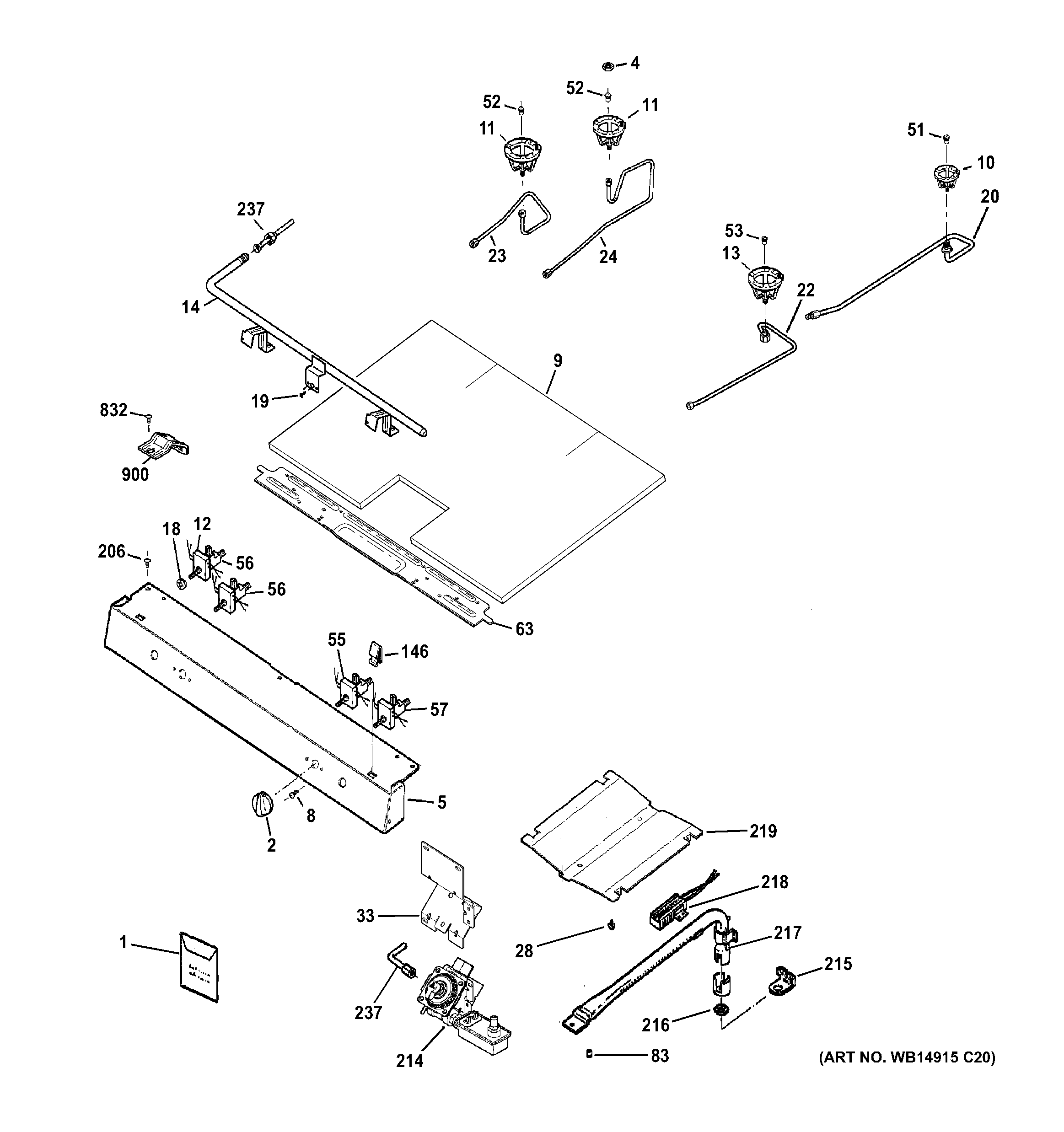

RGB530DEH1BB GAS & BURNER PARTS

Products

PositionProduct
1WB49X21392 GE Oven Hinge Service Kit
1PM INSTALL INSTRUCTIONS
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL
1PM OWNERS MANUAL
2WB03K10216 GE Oven Manifold Knob
4WB01K10037 GE Oven Economic Nut
5MANIFOLD PANEL
8WB01K10002 GE Oven Screw 8-32
9GEN WB35K10189
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12WB18X31208 GE Oven Burner Box Harness
12WB24K10042 GE Oven Rotary Switch
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB28K10457 GE Oven Manifold Pipe
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20WB28K10187 GE Oven Rear Orifice Holder
22WB28K10803 GE Oven Surface Burner Orifice Holder
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
28WB1X1293 GE Oven Screw
33WB02X22890 GE Oven Regulator Bracket
51WB28K10834 GE Oven Orifice Assembly
52WB28K10023 GE Oven Orifice
53WB28K10032 GE Oven LP Orifice
55WB21K10169 GE Oven Burner Valve Round 140
56ROUND VALVE BURNER
57WB21K10170 GE Oven Round Burner Valve 140
63WB34X20680 GE Support Manifold
83WB28X21079 GE Oven Spud Orifice
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB21X20806 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237TUBE MANIFOLD SUPPLY ASSEMBLY
832WB01K10080 GE Oven Thermostat Screw
900WB02K10263 GE Oven Round Valve Bracket
