RGB530DEH1WW CONTROL PANEL & COOKTOP

RGB530DEH1WW CONTROL PANEL & COOKTOP

Written by

in

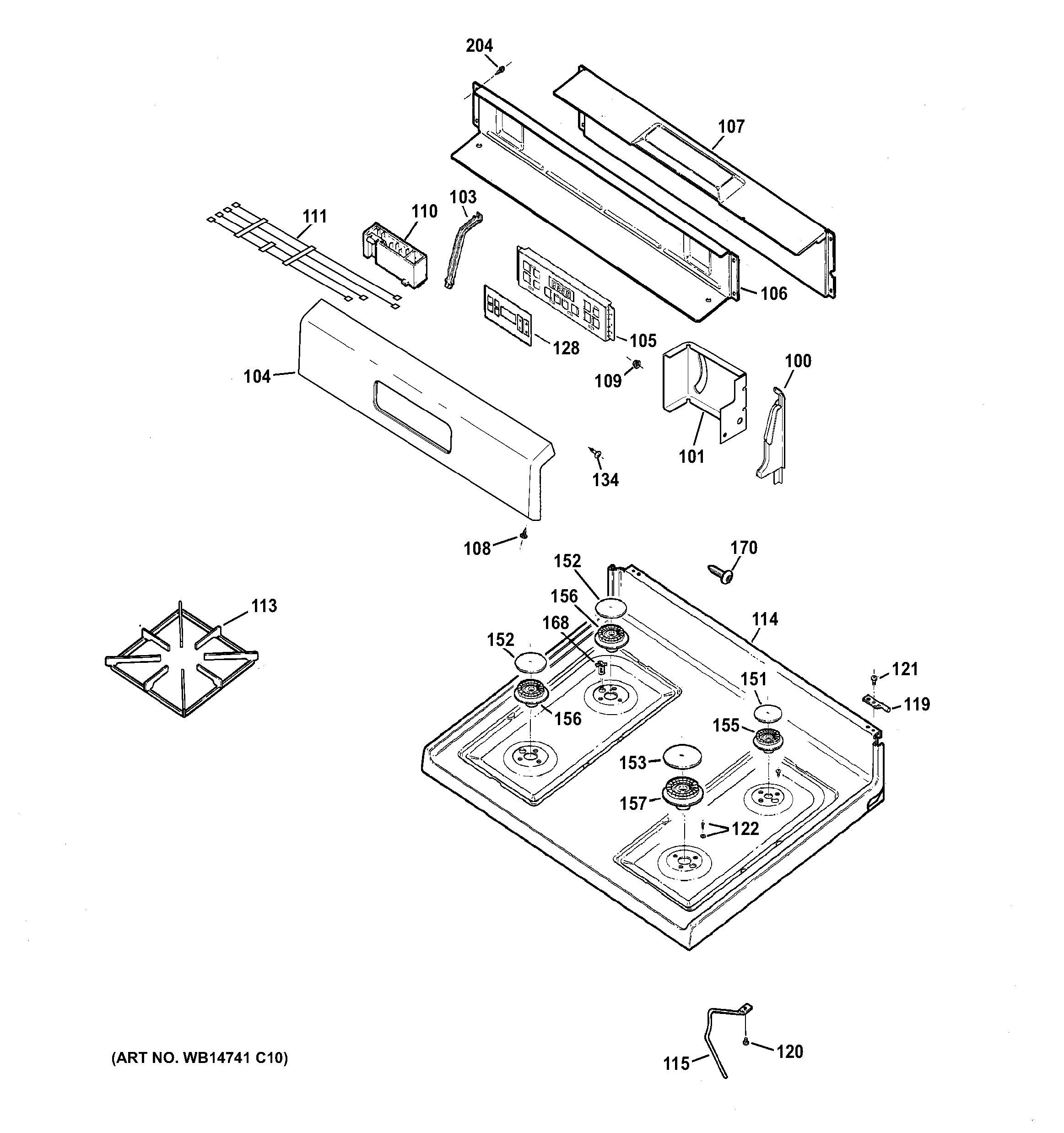

RGB530DEH1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB07K10195 GE Oven Right White End Support
100WB07K10196 GE Oven Left End Support (White)
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104WB36X22889 GE Oven Control Trim
105CONTROL OVEN TO9 (GAS)
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113WB31X22723 GE Oven Grate Assembly 8 Finger
114WB62X20276 GE Range Top S.B
115WB02K10276 GE Cooktop Support
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
128WB07X22662 GE Oven Overlay T09
134GEN WB01X5874
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10023 GE Oven Burner Cap Assembly
153WB29K10024 GE Burner Cap Oven
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
