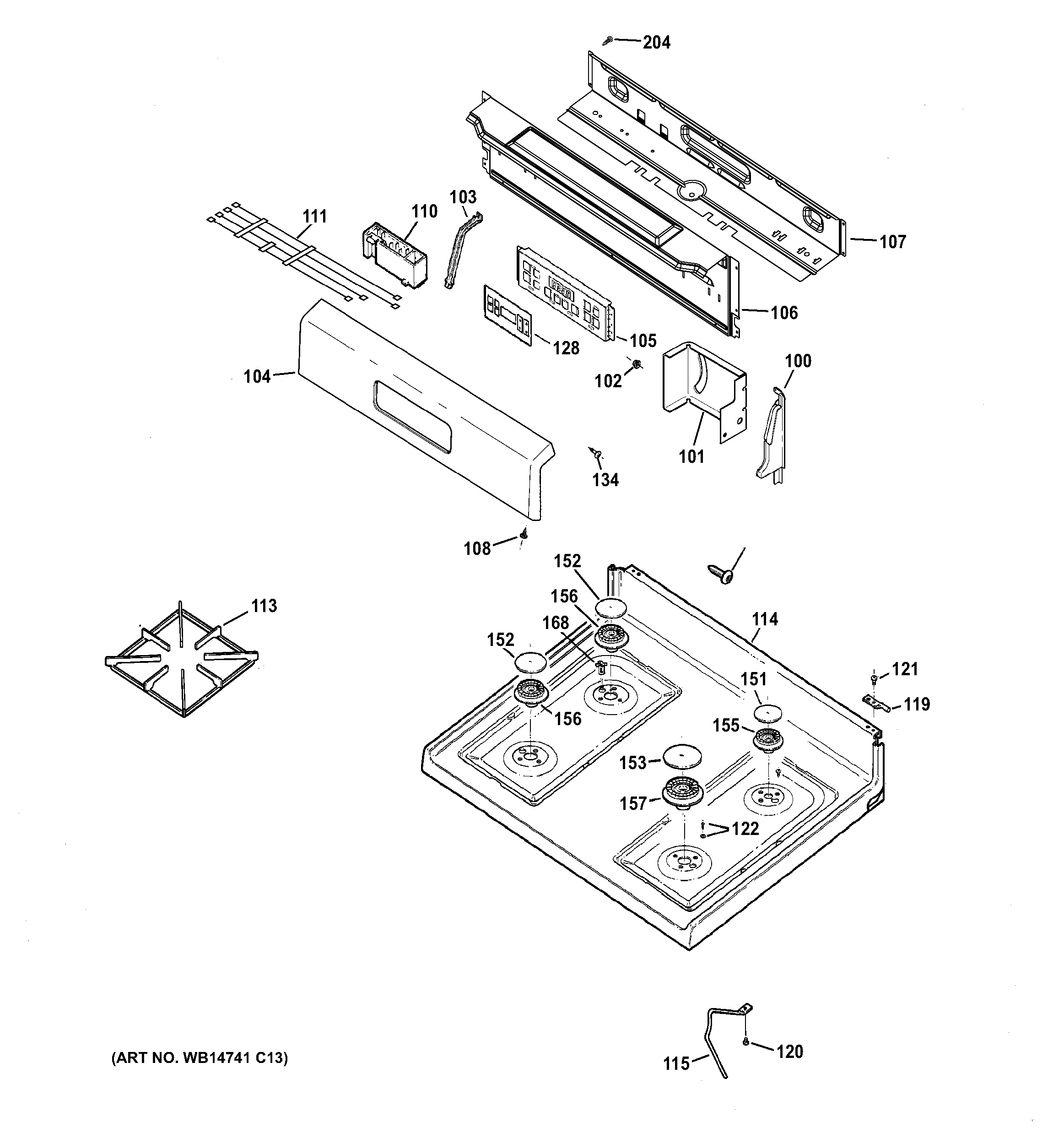

RGB530DEH2BB CONTROL PANEL & COOKTOP

Products

Position	Product
100	WB07K10194 GE Oven End Support Gloss Black
100	WB07K10193 GE Oven End Support Gloss Black
101	WB37K10003 GE Cooktop Right Bracket
101	WB37K10004 GE Cooktop Left Bracket
102	WR01X10065 GE Screw
103	WB02K10074 GE Oven Control Bracket
104	WB36X22891 GE Control Trim
105	CONTROL OVEN TO9 (GAS)
106	WB34K10003 GE Upper Back Oven Cover
107	GEN WB34K10130
108	GEN WB01X5716
110	WB13X24323 GE Oven Ignition Module
111	WB18K10098 GE Oven Igniter Switch and Harness Assembly
113	WB31K10015 GE Oven Black Grate
114	WB62X26321 GE Range Top
115	WB02K10276 GE Cooktop Support
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
122	WB01X24735 GE Oven CKT Screw
128	WB07X22681 GE Range Black Control Panel
134	WB01T10016 GE Oven Screw 8-18 AB Hex
151	WB16X28654 GE Oven Burner Cap Cover
152	WB29K10001 GE Oven Burner Cap
153	WB29K10006 GE Oven Burner Cap
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	BURNER LARGE V2
168	WB02X24976 GE Oven Igniter Clip V2
204	WZ4X345D GE Screw Package 12 C92
