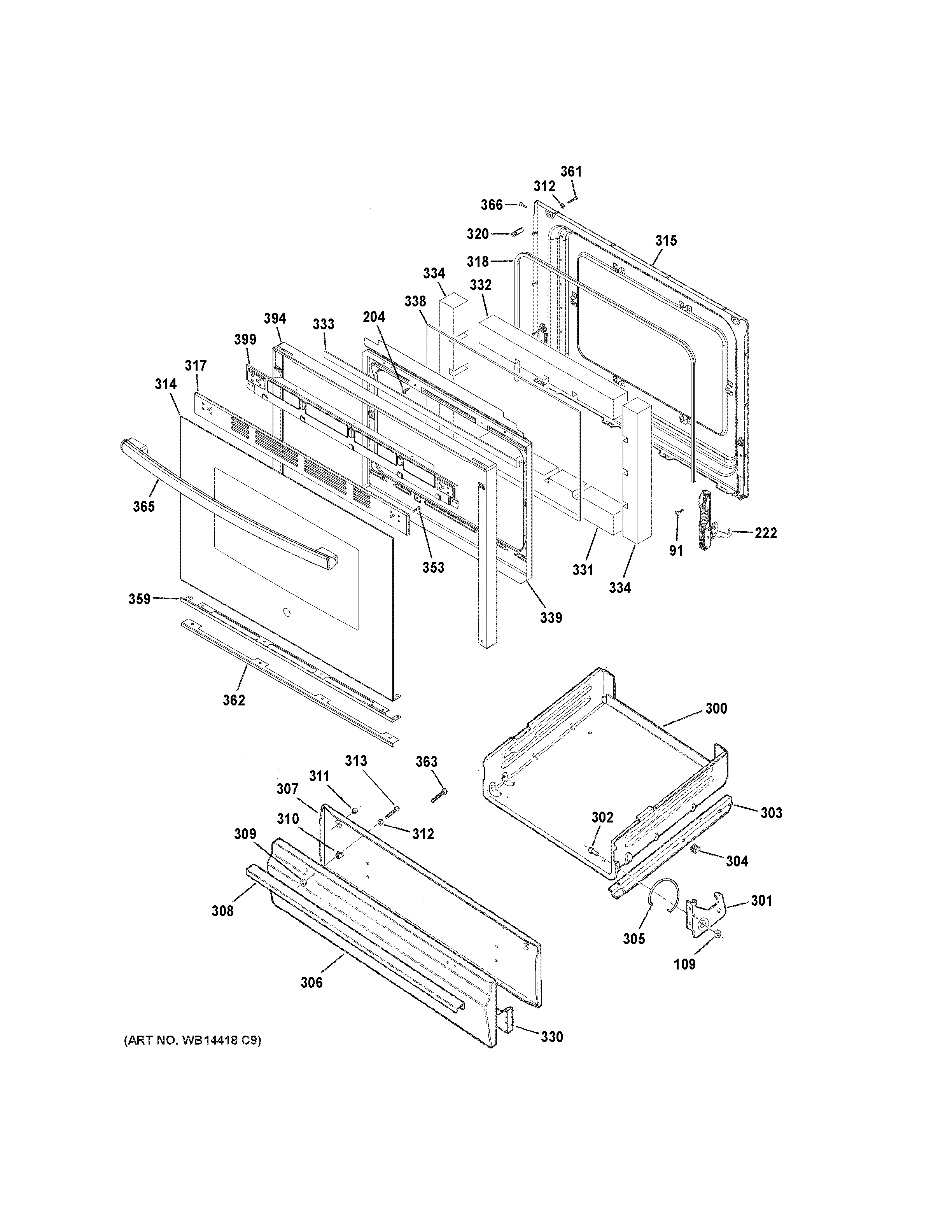

RGB530DEH3BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
109GEN WB01X5743
204WZ4X345D GE Screw Package 12 C92
222WB10X21809 GE Oven Door Hinge
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10030 GE Oven Broiler Pan Slide
303WB39K10029 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306WB39K10 GE Oven Drawer Panel Black
307WB39K10041 GE Oven Drawer Liner
308WB15K10013 GE Oven Broiler Handle (Black)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314WB56X26384 GE Oven Door Glass
315WB56X20206 GE Range Door Panel
317WB07X24847 GE Oven Vent Trim
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
330GEN WB35K0003
331WB35K10147 GE Oven Bottom Insulation Door
332WB35K10148 GE Oven Door Top Insulation
333WB35X21579 GE Front Door Insulation
334WB35K10146 GE Door Side Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
353WB01K10012 GE Oven Screw 8-22 PL 1HX
359WB07K10232 GE Oven Bottom Trim Assembly
361SCREW
362WB07X20288 GE Oven Barrier Door
363WB1K63 GE Oven Screw
365WB15K10102 GE Oven Handle
366WB02X32441 GE Screw 10-16 PNT 2.5"
394WB07X25502 GE Door Oven Trim
399WB56X20809 GE Oven Backer Panel
