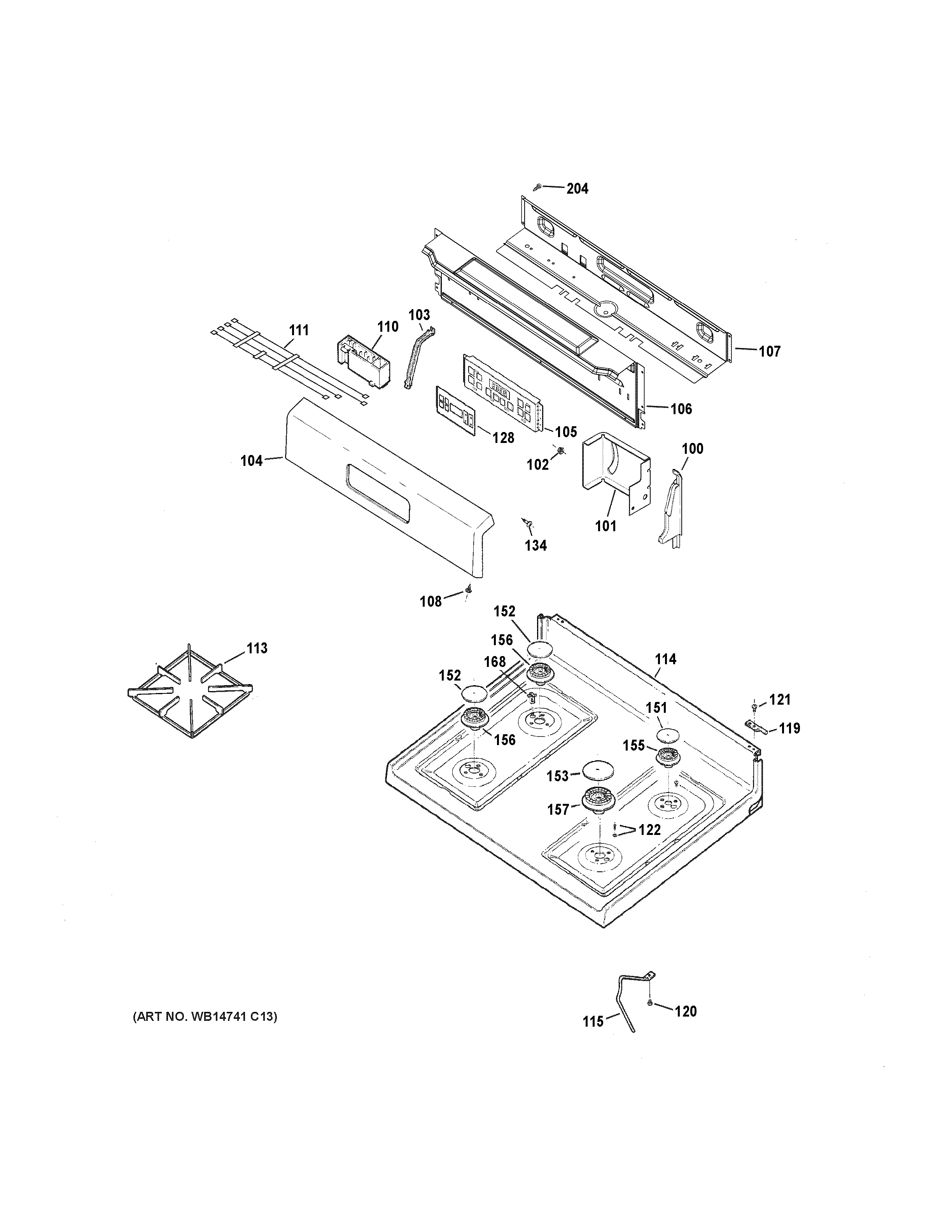

RGB530DEH3WW CONTROL PANEL & COOKTOP

Products

Position	Product
100	WB07K10195 GE Oven Right White End Support
100	WB07K10196 GE Oven Left End Support (White)
101	WB37X20196 GE Cooktop Bracket
101	WB37X20193 GE Cooktop Bracket
102	WR01X10065 GE Screw
103	WB02K10074 GE Oven Control Bracket
104	WB36X22889 GE Oven Control Trim
105	CONTROL OVEN TO9 (GAS)
106	GEN WB34K10130
107	WB34K10003 GE Upper Back Oven Cover
108	GEN WB01X5716
110	WB13X24323 GE Oven Ignition Module
111	WB18X26607 GE Oven Spark Electrode
113	WB31X22723 GE Oven Grate Assembly 8 Finger
114	WB62X26314 GE Range Top
115	WB02K10276 GE Cooktop Support
119	WB14K5 GE Oven Hinge Pin
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
122	WB01X24735 GE Oven CKT Screw
128	WB07X22662 GE Oven Overlay T09
134	WB01T10016 GE Oven Screw 8-18 AB Hex
151	WB16X29450 GE Range Small Burner Cap V2
152	WB29K10023 GE Oven Burner Cap Assembly
153	WB29K10024 GE Burner Cap Oven
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
157	BURNER LARGE V2
168	WB02X24976 GE Oven Igniter Clip V2
204	WZ4X345D GE Screw Package 12 C92
