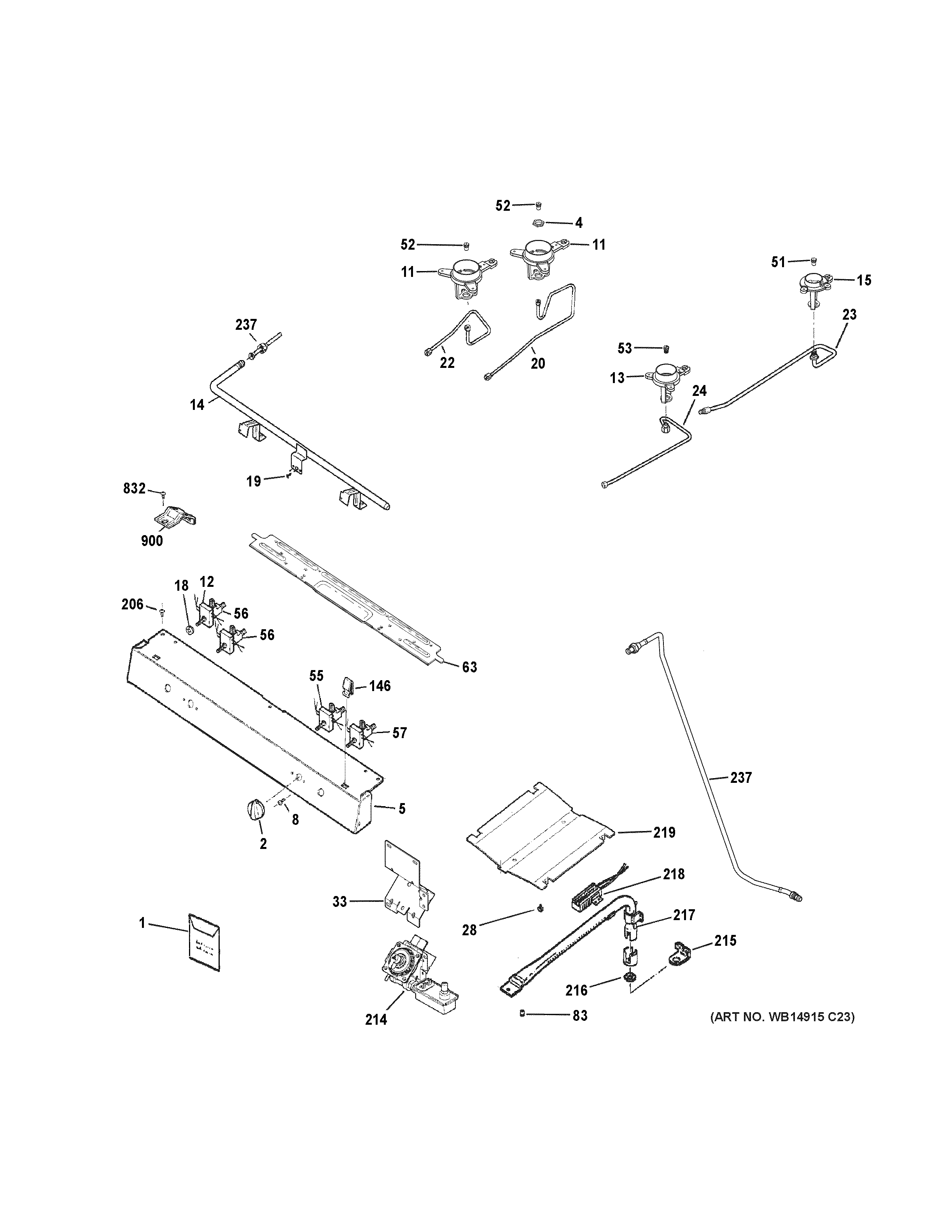

RGB530DEH3WW GAS & BURNER PARTS

RGB530DEH3WW GAS & BURNER PARTS

Written by

in

RGB530DEH3WW GAS & BURNER PARTS

Products

PositionProduct
1LP CONVERSION KIT
1PM INSTALL INSTRUCTIONS
1WB49X21392 GE Oven Hinge Service Kit
1PM MANUAL MINI & WD ASM
1PM GAS QUICK GUIDE
2WB03K10218 GE Oven Control Knob
4WB01K10037 GE Oven Economic Nut
5MANIFOLD PANEL
8WB01K10002 GE Oven Screw 8-32
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X31208 GE Oven Burner Box Harness
13WB02X24726 GE Range Injector Large
14WB28K10457 GE Oven Manifold Pipe
15WB02X24728 GE Range Small Injector
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20WB28X26308 GE Oven L Rear Orifice Holder
22WB28X26306 GE Oven Left Front Orifice Holder
23WB28X26309 GE Oven Surface Burner Orifice Holder
24FRONT ORIFICE HOLDER
28WB1X1293 GE Oven Screw
33WB02X22890 GE Oven Regulator Bracket
51WB28K10834 GE Oven Orifice Assembly
52WB28K10023 GE Oven Orifice
53WB28K10032 GE Oven LP Orifice
55WB21K10169 GE Oven Burner Valve Round 140
56ROUND VALVE BURNER
57WB21K10170 GE Oven Round Burner Valve 140
63WB34X20680 GE Support Manifold
83WB28X21079 GE Oven Spud Orifice
146WB02X26569 GE Range Top Clip
206WB01K10091 GE Oven Screw
214WB21X38548 VALVE CONTROL ASM
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237TUBE MANIFOLD SUPPLY ASSEMBLY
832WB01K10080 GE Oven Thermostat Screw
900WB02K10263 GE Oven Round Valve Bracket
