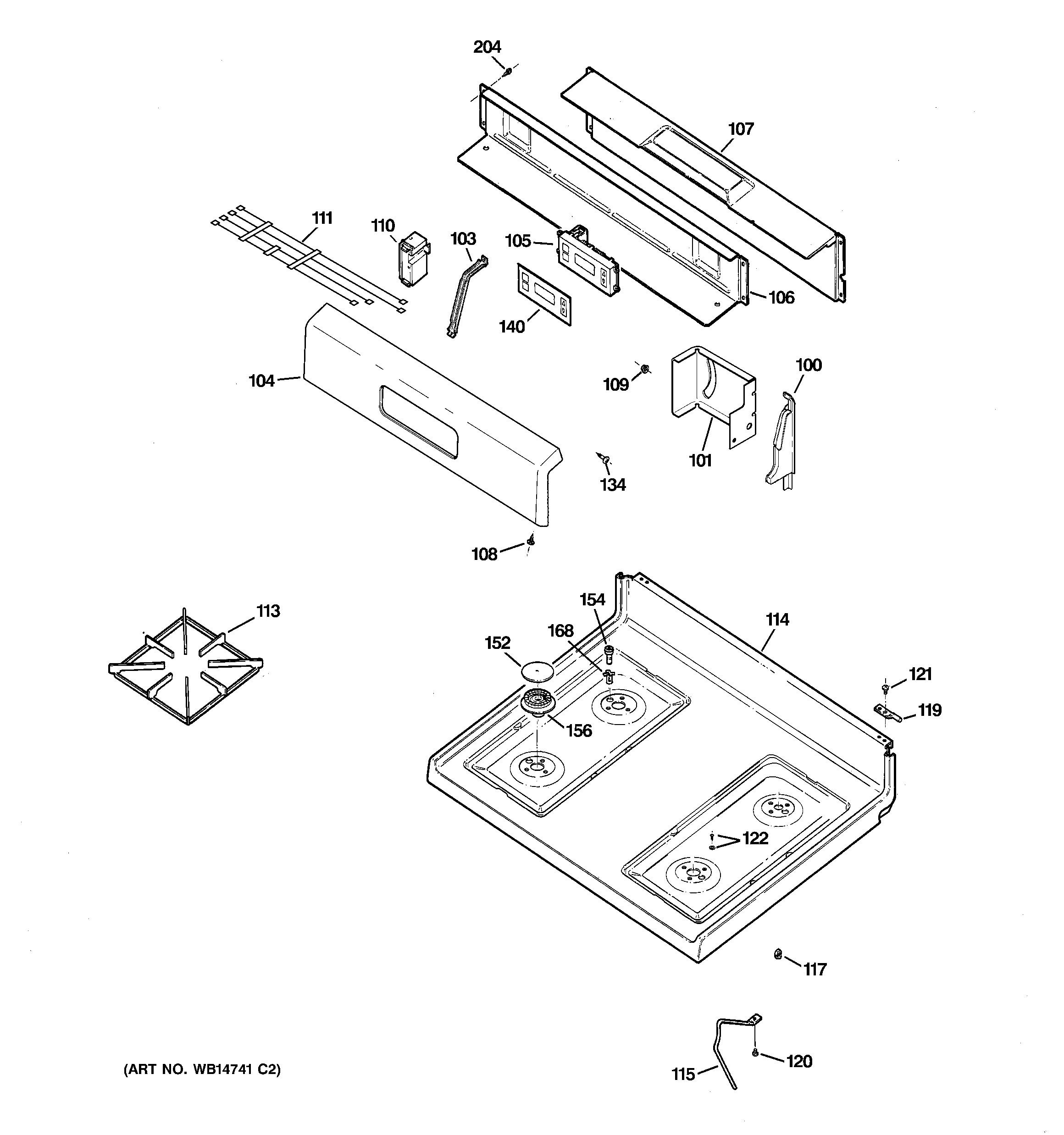

RGB530DEP1BB CONTROL PANEL & COOKTOPadmin2025-04-26T10:06:13+00:00RGB530DEP1BB CONTROL PANEL & COOKTOP ProductsPositionProduct100WB07K10195 GE Oven Right White End Support100WB07K10193 GE Oven End Support Gloss Black100WB07K10196 GE Oven Left End Support (White)100WB07K10194 GE Oven End Support Gloss Black101WB37K10003 GE Cooktop Right Bracket101WB37K10004 GE Cooktop Left Bracket103WB02K10074 GE Oven Control Bracket104GEN WB36K10848104GEN WB36K10847105WB27T10469 GE Oven Timer Control Board106WB34K10003 GE Upper Back Oven Cover107WB34K10001 GE Lower Back Cover108WB1X5364 GE Oven Mounting Screw109GEN WB01X5743110WB13K10029 GE Oven Spark Module111GEN WB18K10039113WB31K10015 GE Oven Black Grate113GEN WB31K10043114GEN WB62K10063114GEN WB62K10046115WB2K91 GE Oven Top Support117GEN WB02K0017119WB14K5 GE Oven Hinge Pin120WB1K45 GE Oven Screw and Washer Assembly121WB1K5119 GE Oven Screw122GEN WB01K10008134GEN WB01X5874140GEN WB27K10250140GEN WB27K10313152WB29K10001 GE Oven Burner Cap152WB29K10004 GE Oven Gray Burner Cap154GEN WB13K10021156WB16K10055 GE Oven Burner Base168WB01K10112 GE Range Oven Electrode Clip204WZ4X345D GE Screw Package 12 C92204WB1K5062 GE Oven Screw
