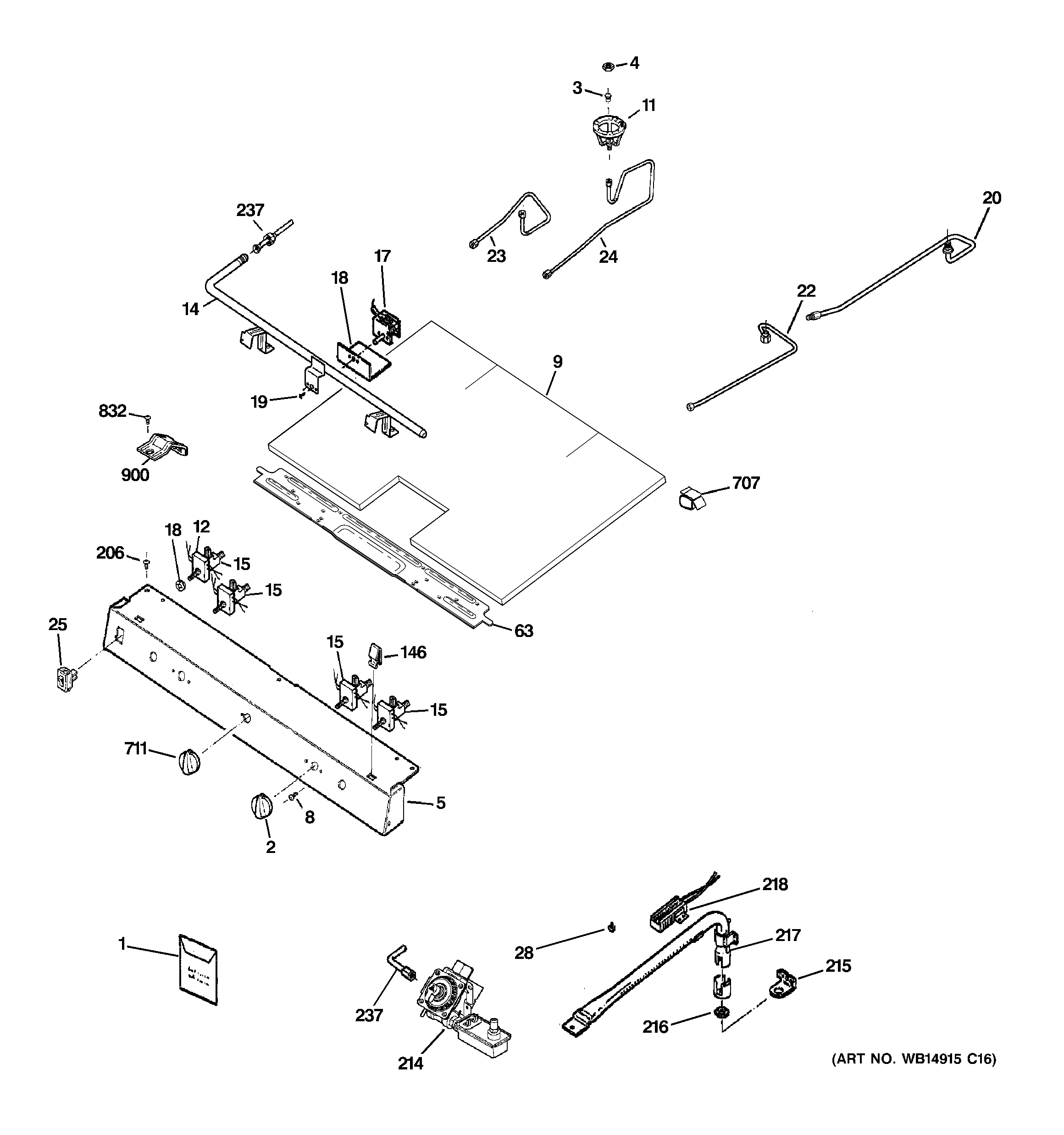

RGB530DEP2BB GAS & BURNER PARTS

RGB530DEP2BB GAS & BURNER PARTS

Written by

in

RGB530DEP2BB GAS & BURNER PARTS

Products

PositionProduct
1GEN WB28K10555
1GEN 31-21390
1GEN 31-21446
1GEN 49-85154
2WB03K10035 GE Oven Top Burner Knob
2WB03K10034 GE Oven Burner Knob
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5WB36K10765 GE Oven Manifold Panel
5GEN WB36K10763
8WB01K10002 GE Oven Screw 8-32
9GEN WB35K10189
11WB02K10361 GE Oven Orifice Holder
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10038
14WB28K10427 GE Oven Manifold Pipe
15VALVE BURNER 270
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10191
22GEN WB28K10192
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
25WB24K5022 GE Oven Rocker Switch
25GEN WB24K0003
28WB1X1293 GE Oven Screw
63WB34X20680 GE Support Manifold
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
237TUBE MANIFOLD SUPPLY ASSEMBLY
707WB02K10267 GE Wire Clip
711WB03K10037 GE Oven Control Knob
711THERMOSTAT KNOB – WHITE
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
