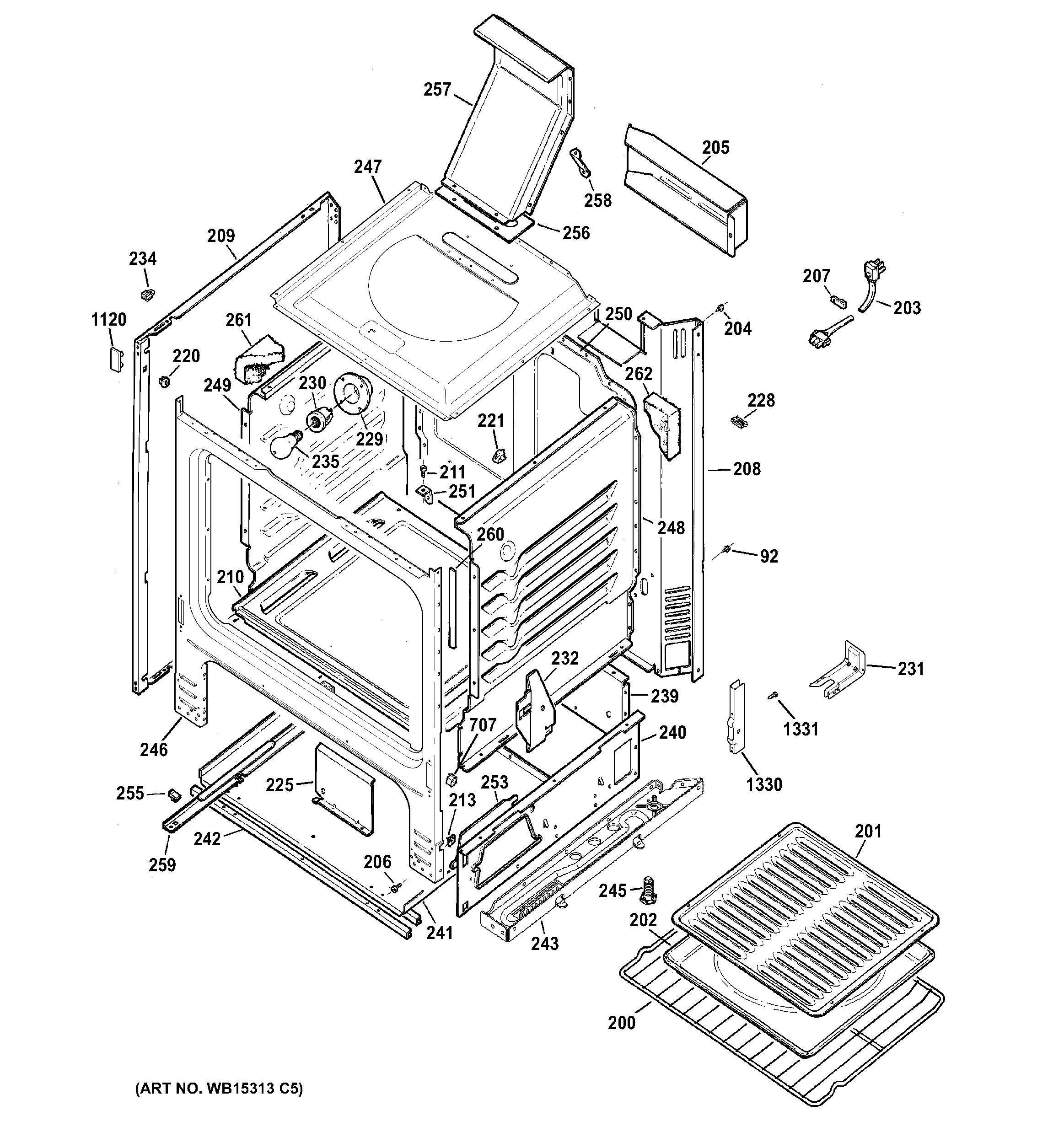

RGB530DET4BB BODY PARTS

RGB530DET4BB BODY PARTS

Written by

in

RGB530DET4BB BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
200OVEN RACK
201WB48X10056 GE Broil Pan Set, Large Porcelain
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K0021
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB63K21 GE Back
209WB63K10119 GE Oven Side Panel, Black
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
213WB1K3 GE Oven Speed Nut
220WB02K10294 GE Oven Grommet
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
225GEN WB34K0002
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239WB63K10030 GE Rear Broil Panel
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243GEN WB63K10230
243WB63K10231 GE Base Support
245WB02K10182 GE Oven Leveling Leg
246FRAME WELD ASM
247WB53K10002 GE Oven Top
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250GEN WB53K0004
251WB2K3 GE Angle Support
253WB2K4 GE Cover Accessory Spring
255WB2K5 GE Oven Broiler Stop
256GEN WB32K0001
257WB38K10001 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259GEN WB39K0002
259GEN WB39K0001
260WB32K2 GE Oven Gasket Seal
261WB35K10157 GE Oven Insulation Wrap
262WB35K10162 GE Oven Back Insulation
707WB02K10267 GE Wire Clip
1120WB02K10178 GE Oven Bumper
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
