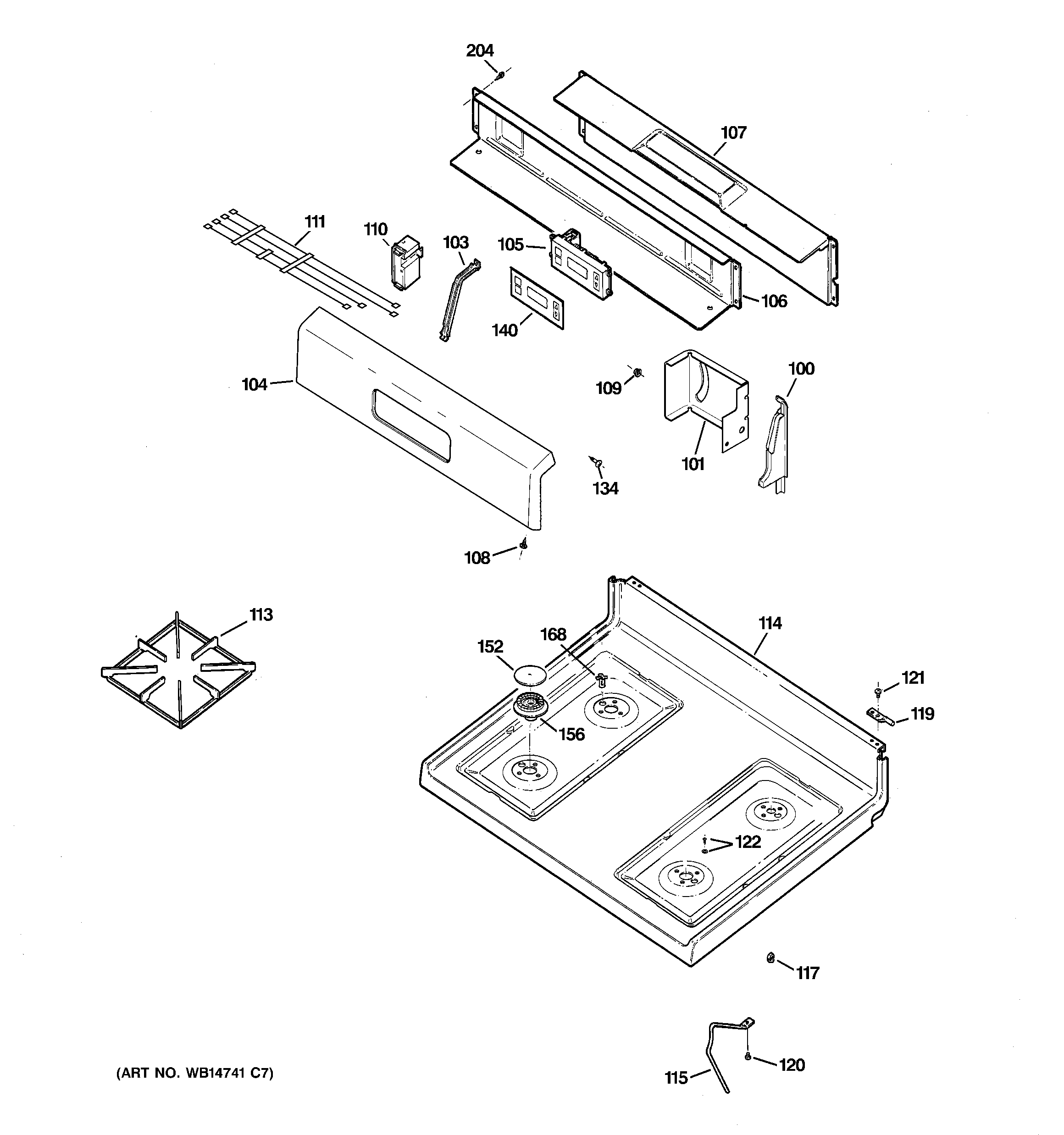

RGB530DET4BB CONTROL PANEL & COOKTOP

RGB530DET4BB CONTROL PANEL & COOKTOP

Written by

in

RGB530DET4BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB07K10194 GE Oven End Support Gloss Black
100WB07K10193 GE Oven End Support Gloss Black
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10847
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113WB31K10015 GE Oven Black Grate
114GEN WB62K10157
115WB02K10276 GE Cooktop Support
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
134GEN WB01X5874
140GEN WB27K10313
152WB29K10001 GE Oven Burner Cap
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
