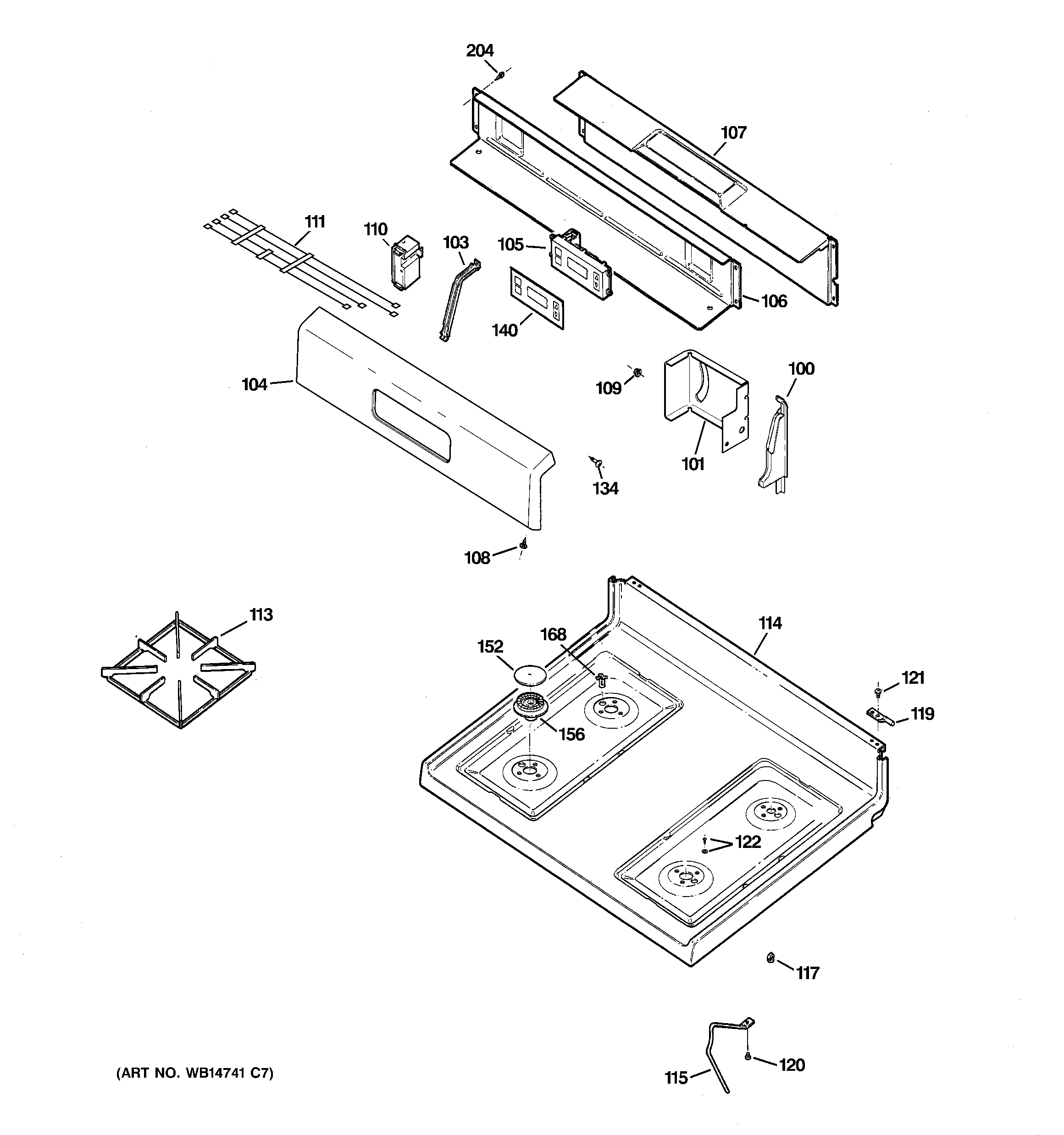

RGB530DET4WW CONTROL PANEL & COOKTOP

RGB530DET4WW CONTROL PANEL & COOKTOP

Written by

in

RGB530DET4WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10848
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107WB34K10001 GE Lower Back Cover
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113GEN WB31K10043
114RANGE TOP S.B.
115WB02K10276 GE Cooktop Support
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
134GEN WB01X5874
140GEN WB27K10250
152WB29K10004 GE Oven Gray Burner Cap
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
