RGB532ET1AD

RGB532ET1AD

Written by

in

RGB532ET1AD

Products

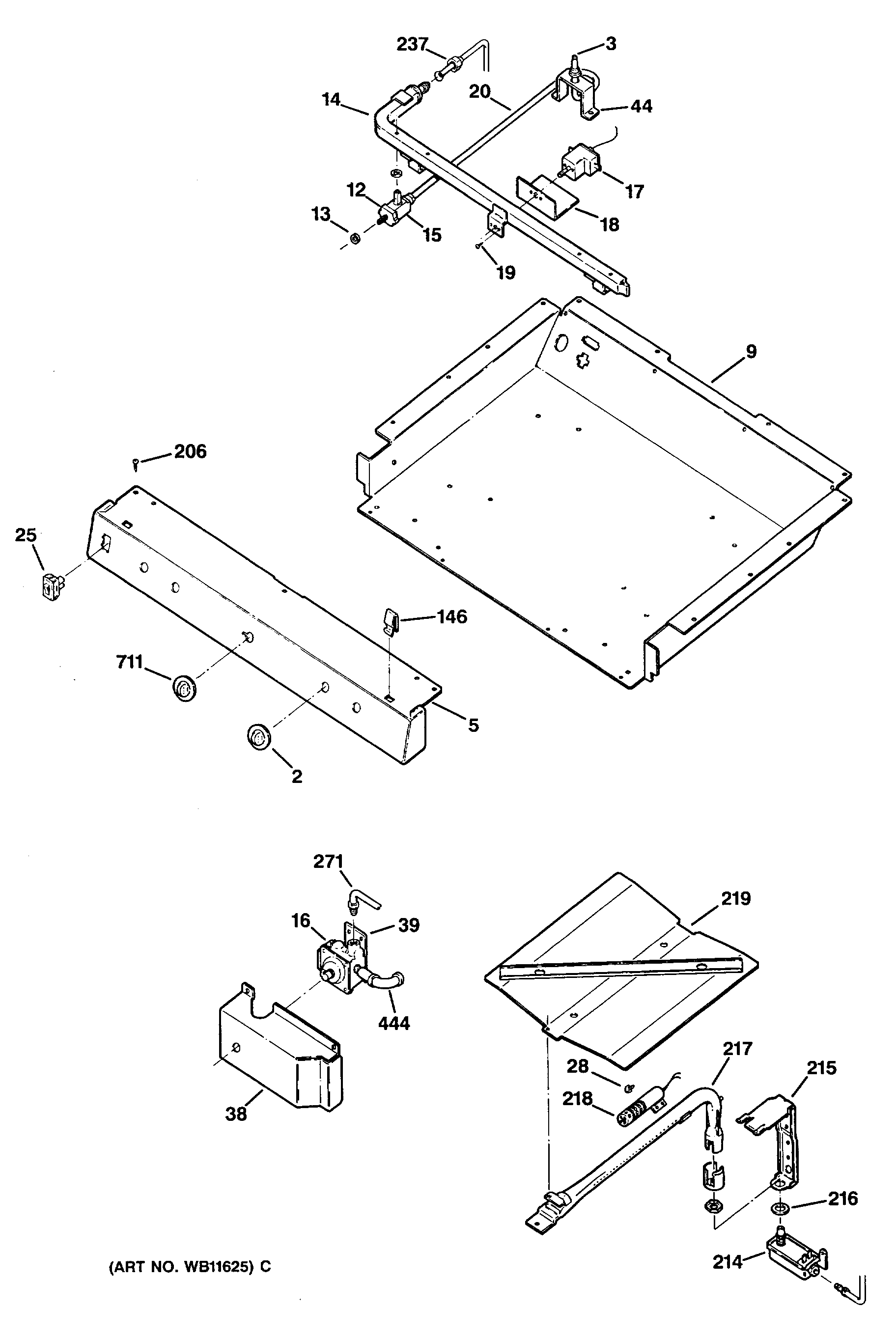

PositionProduct
2SURFACE BURNER KNOB
3GEN WB28K0023
3GEN WB28K0087
3GEN WB28K0086
3GEN WB28K0019
3GEN WB28K0022
5PANEL MANIFOLD SP
9GEN WB63K0024
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0066
15GEN WB21K0018
15GEN WB21K0014
16GEN WB19K0016
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20ORF HOLDER LEFT REAR
20ORF HOLDER RIGHT REAR
20ORIFICE HLDR LEFT FRONT
20ORIFICE HLDR RHT FRONT
25GEN WB24K0003
28WB1X1293 GE Oven Screw
38GEN WB34K0015
39GEN WB02K0047
44GEN WB02K0049
46WB29K27 GE Oven Surface Burner Ignition
47GEN WB29K0032
48GEN WB29K0025
49GEN WB29K0026
51CAP MEDALION LG (BLK)
52CAP MEDALION SM (BLK)
100COVER END LEFT (BK)
100COVER END RIGHT (BK)
101GEN WB37K0011
101GEN WB37K0012
102GEN WB07K0005
103GEN WB37K0003
104GEN WB36K0056
106GEN WB36K0017
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
108SCREW MTG END CAP
109GEN WB01X5743
109UNKNOWN
110GEN WB13K0025
111GEN WB34K0005
113UNKNOWN
114GEN WB62K0009
115GEN WB06K0008
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
126GEN WB02K0026
127WB3X5699 GE Oven Timer Knob Kit
128GEN WB06K0004
129UNKNOWN
133GEN WB01K0022
135GEN WB37K0010
145GEN WB01K0027
146GEN WB02K0052
147GEN WB01K0028
148GEN WB01K0029
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K0021
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208WB63K21 GE Back
209GEN WB63K0034
210GEN WB53K0005
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
214WB19K13 GE Oven Safety Valve
215GEN WB02K0007
216GEN WB01K0006
217GEN WB16K0007
218WB2X9154 GE Oven Igniter with 8" Leads
219FLAME SPREADER
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0004
228GEN WB02X7066
229GEN WB08K0001
230GEN WB08K0002
231GEN WB02K0012
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
237GEN WB28K0056
239GEN WB63K0025
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241RANGE BOTTOM
242GEN WB63K0005
243GEN WB63K0006
243GEN WB63K0007
244GEN WB02K0001
245GEN WB02X7701
246GEN WB63K0031
247GEN WB53K0001
248GEN WB53K0002
249GEN WB53K0003
250GEN WB53K0004
251WB2K3 GE Angle Support
253WB2K4 GE Cover Accessory Spring
254GEN WB01K0053
254GEN WB10K0013
254GEN WB10K0014
255WB2K5 GE Oven Broiler Stop
256GEN WB32K0001
257GEN WB38K0001
258WB38K2 GE Range Vent Brace
259GEN WB39K0002
259GEN WB39K0001
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0001
262WB35K16 GE Oven Back Insulation
271GEN WB28K0057
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0008
303GEN WB39K0007
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306UNKNOWN
307GEN WB39K0005
308GEN WB15K0015
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
315GEN WB55K0006
316UNKNOWN
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332GEN WB35K0005
334GEN WB02K0013
335GEN WB02K0002
336GEN WZ04X0423
337GEN WB56K0043
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346WB56K25 GE Oven Wind Crystal
347GEN WB07K0086
348GEN WB02K0050
353WB1K67 GE Oven Screw 8-22
444GEN WB28K0061
708COVER BACK PANEL SP
711GEN WB03K0060
32767GEN 39-4738
32767WB2K20 GE Oven Bracket Assembly
32767GEN 31-1365
