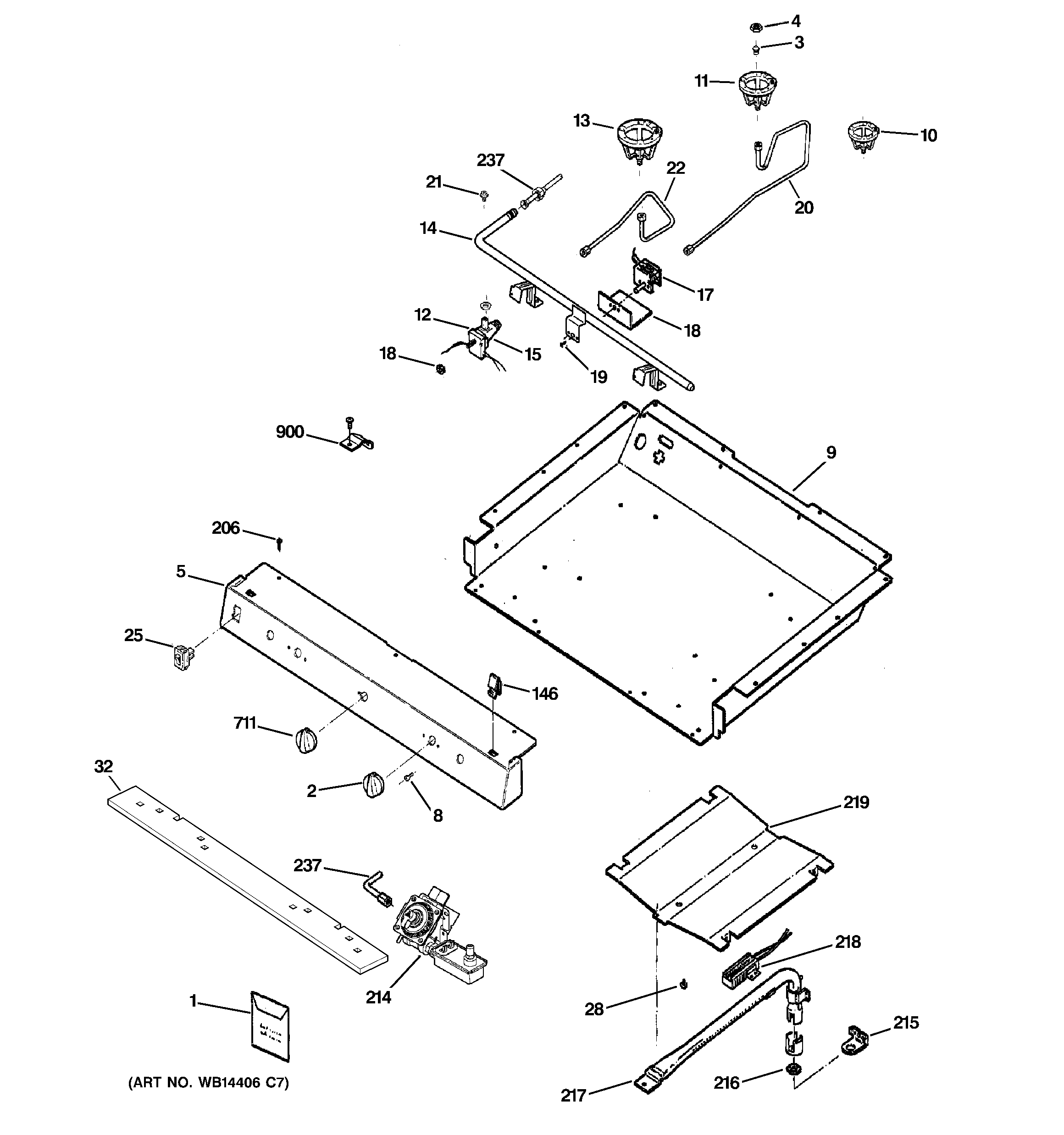

RGB533BEK5BB GAS & BURNER PARTS

RGB533BEK5BB GAS & BURNER PARTS

Written by

in

RGB533BEK5BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21299
1GEN 49-85095
1GEN WB28K10175
2WB03K10035 GE Oven Top Burner Knob
3WB28K10023 GE Oven Orifice
3WB28K10032 GE Oven LP Orifice
3WB28K10031 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10763
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0024
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12WB24K10042 GE Oven Rotary Switch
12GEN WB24K10038
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB28K10427 GE Oven Manifold Pipe
15WB21K10099 GE Oven Burner Valve
15VALVE BURNER 270
15GEN WB28K10397
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20WB28K10187 GE Oven Rear Orifice Holder
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
21GEN WB01K10071
22WB28K10190 GE Oven Left Front Orifice
22WB28K10189 GE Oven Front Orifice Holder
25GEN WB24K0003
28WB1X1293 GE Oven Screw
32INSULATION BURNER BOX
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10044 GE Oven Control Valve Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10478
237GEN WB28K10109
711WB03K10037 GE Oven Control Knob
900WB02K10297 GE Oven Valve Bracket
